Sight Flow Indicators, Sight Windows

BULLETIN	Threaded Bulls-Eye Sight Flow Indicators Models 150 PSIG & 150 ASME Class Features: • Connections per ASME B1.20.1 • Standard fasteners (Class 150 models) per ASTM A354 and ASTM A194 complying with most piping specifications. • Borosilicate glass • Units and machined and assembled in an ISO-9001 fully automated facility. • Wetted components meet NACE MR-01-75 / ISO15156-1 requirements. • Stainless steel engraved identification faceplate.
BULLETIN	High Pressure Threaded Bulls-Eye Sight Flow Indicators Models 300, 600, 900, and 1500 ASME Class Features: • Connections per ASME B1.20.1 • Standard fasteners per ASTM A354 and ASTM A194 complying with most piping specifications. • Tempered borosilicate glass • Units and machined and assembled in an ISO-9001 fully automated facility. • Wetted components meet NACE MR-01-75 / ISO15156-1 requirements. • Stainless steel engraved identification faceplate.
BULLETIN Model 150 Model 300, 600, 900 & 1500	Flanged Bulls-Eye Sight Flow Indicators Models 150 ASME Class Features: • Connections per ASME B16.5, B16.24, and B16.1 • Standard fasteners per ASTM A354 and ASTM A194 complying with most piping specifications. • Tempered borosilicate glass • Units and machined and assembled in an ISO-9001 fully automated facility. • Wetted components meet NACE MR-01-75 / ISO15156-1 requirements. • Stainless steel engraved identification faceplate.
BULLETIN Model 150 Model 300, 600, 900 & 1500	High Pressure Flanged Bulls-Eye Sight Flow Indicators Models 300, 600, 900 & 1500 ASME Class Features: • Connections per ASME B16.5, B16.24, and B16.1 • Standard fasteners per ASTM A354 and ASTM A194 complying with most piping specifications. • Tempered borosilicate glass • Units and machined and assembled in an ISO-9001 fully automated facility. • Wetted components meet NACE MR-01-75 / ISO15156-1 requirements. • Stainless steel engraved identification faceplate.

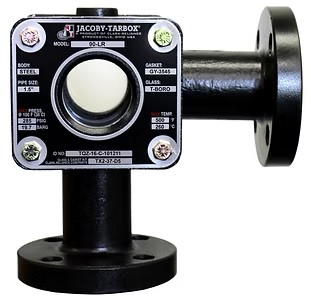

	90° Flanged Sight Flow Indicators Features: • Flanged connections per ASME B16.5 • Threaded connections (male and female) per ASME B16.1 • 90 degree unit matches “take-out” or face-to-face of Class 150 and Class 300 long radius elbows • Standard fasteners per ASTM A354 and ASTM A194 complying with most piping specifications. • Tempered borosilicate glass • Units and machined and assembled in an ISO-9001 fully automated facility. • Wetted components meet NACE MR-01-75 / ISO15156-1 requirements. • Stainless steel engraved identification faceplate.
BULLETIN	Full (360º) View Low Pressure Sight Flow Indicators Features: • Pressure rating: 150 psig (10.3 Bar) or less, changes with size • Special lengths: up to 48″ (1219 mm) in length for flange sizes from 1/2″ to 12″ • Must isolate from mechanical strains on pipelines • Optional drip tube indicator available for both models
BULLETIN	Cylindrical Sheathed Sight Flow Indicator
VIDEO 보기 BULLETIN

BULLETIN
BULLETIN Normal Service to 150psi
Normal Service to 150psi

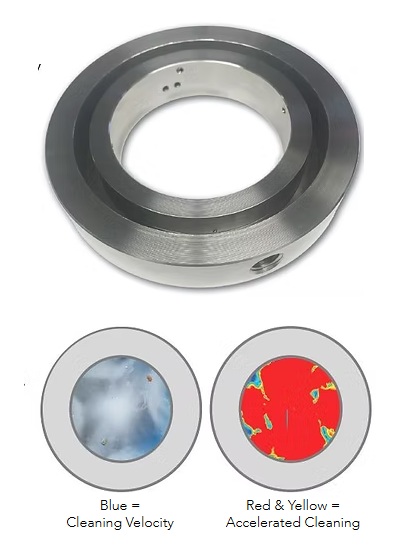

BULLETIN	Drop-In Spray Ring Flange-Mounted Sight Windows (All Pressure Classes) Jacoby-Tarbox offers a full line of spray rings for installation directly against sight windows to direct secondary fluids (liquid or gas) against the window to remove debris. Standard Features: Size Range: 2” through 10” ASME Flange Class: 150, 300, 600 “Ring” style centered by bolting ¼” NPT Supply connection Material: 316 SS Maintains window rating Compound angle radial and cross jets Optional Features: Material: Corrosion resistant alloys Non-ASME flanges (DIN, JIS, MIL) Larger sizes Assembled windows and sight flow indicators Applications: Liquid – Rinsing windows Liquid – Remove build up Gas – Blow off powders Gas – Purge window Gas – Cooling Gas – Warming Gas – Defogging Gas – Condensate removal Application Note - Flushing liquid recommended to be at least 10 psi (.7 Bar) higher than process pressure. When using steam, limit duration of cleaning and pressure differential to maximize window life. Optimized Design: Jacoby-Tarbox engineers used Computational Fluid Dynamics (CFD) software to model fluid flows and optimize both window coverage and cleaning time for all applications. Efficient use of Secondary (cleaning) fluid: minimize consumption and impact on process Maximize process visibility Easy Installation: “Ring” style will drop-in and self-center within flange bolting like standard ASME ring gaskets.

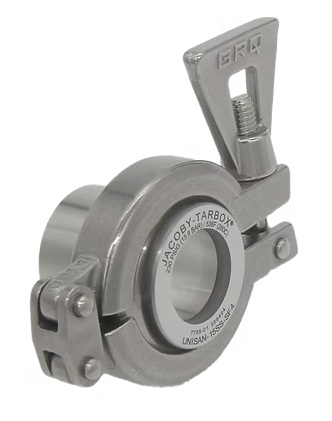

BULLETIN VIDEO 보기	Uni-San® Hygienic Sight Windows Jacoby-Tarbox® Uni-San Hygienic Sight Windows take the highly successful UniGlas® products into hygienic applications. UniGlas windows have been used in the most challenging services in the world without ever having a catastrophic failure. Features: • One-Piece Design • Crevice Free Transition • 10µin Ra(0.25 µ Ra) Mechanical Polish • Borosilicate Glass and Duplex Stainless Steel • Available with Hast-C Ring • Full Vacuum to 232 PSIG (16 Bar)

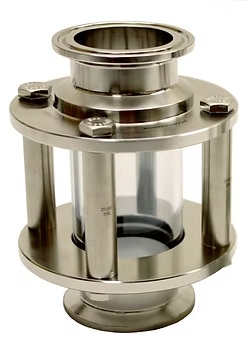

VIDEO 보기	Hy-Sight Hygienic Sight Flow Indicators Features: • Largest View • Highest Pressure Rating • Hygienic Clamp Connection • ASME BPE SF4 (15Ra μin Mechanical & Electropolished) Wetted Surface Finish • FDA and USP Class IV Compliant Seals • Surpass CIP and SIP Requirements • 316L SS Standard, Hast C22, Hast C276 and AL6XN Available • Full Vacuum to 300 PSIG (20.7 Bar) BULLETIN
VIDEO 보기	Features: • Customizable Lengths • Largest View • Highest Pressure Rating • Hygienic Clamp Connection • ASME BPE SF4 (15Ra μin Mechanical & Electropolished) Wetted Surface Finish • FDA and USP Class IV Compliant Seals • Surpass CIP and SIP Requirements • 316L SS Standard, Hast C22, Hast C276 and AL6XN Available • Full Vacuum to 300 PSIG (20.7 Bar) IO MANUAL

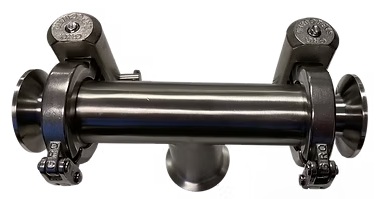

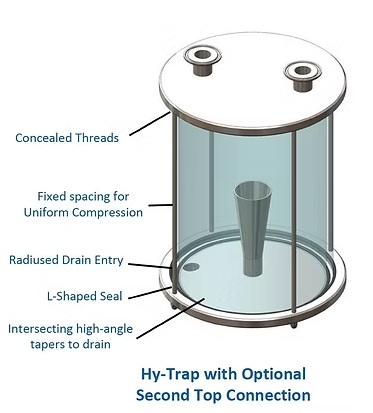

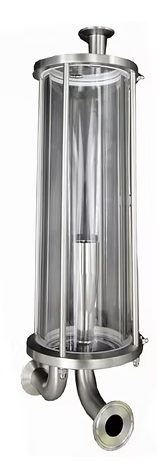

VIDEO 보기	Hy-Trap Hygienic Bubble Trap Jacoby-Tarbox Hy-Trap™ Hygienic Bubble Traps offer consistent performance over a wide range of sizes and customizable configurations. CONSISTENT PERFORMANCE The Hy-Trap design features superior manufacturing techniques across all sizes. • Centered inlet promotes even dispersion • Inlet far from wall, leads to faster, more consistent cleaning Aggressive Drain Design (ADD) • Highest angle of all manufacturers (>10°) • Intersecting OD to ID and ID to OD tapers • Radiused drain entry • SF4 wetted surface finishes “L-shape” Seal • Eliminates Glass-to-metal impingement • Designed specifically for each glass size • Self-centering • Superior cleanability Sizes and Materials • Sizes: 4” 10 ” (100 250 mm) Additional Sizes: Consult Factory • Materials: 316L SS, Type 1 Borosilicate Custom materials and pressures: Consult Factory SIMPLIFIED UNIT AND ACCESSORY MOUNTING Hy-trap comes standard with unit and accessory mounting brackets. • Remove stress on bubble trap from tubing-only mounting • Decrease stress on tubing from a heavy bubble trap

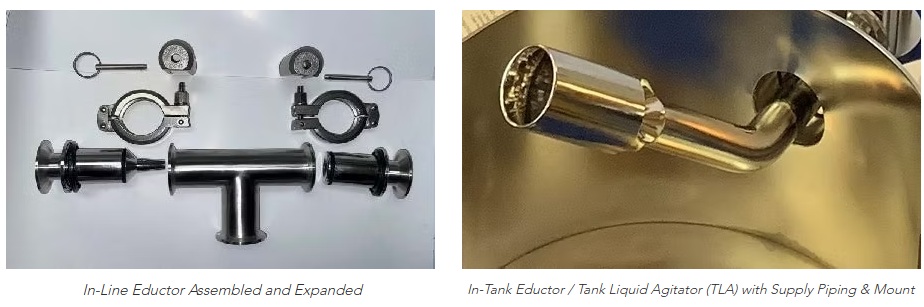

	Hygienic Eductors In-Tank & In-Line Eductors - for Pharma, Biotech, Food Applications Jacoby-Tarbox eductors offer consistent performance over a wide range of sizes and customizable configurations for both in line and in tank applications. CONSISTENT PERFORMANCE Geometry used follows the widely used industrial sizes, now updated for hygienic applications. Eight in line models for liquid, gas, and steam applications In tank units for mixing, blending, and heating Design Features Wetted surface finishes: SF 4 Seals: (in-line) UPS Class VI CIP / SIP: System must be flushed from motive and suction to ensure proper cleaning Sizes 1” - 4” standard Custom: Consult Factory EDUCTORS & MORE In-line units start highly custom nozzle and discharge inserts. Body: Standard Tee Clamps: GRQ Engineered Hygienic clamps standard for optimum performance GRQ SafeGuards and push pins standard to discourage tampering and deviating from the optimal settings from the factory

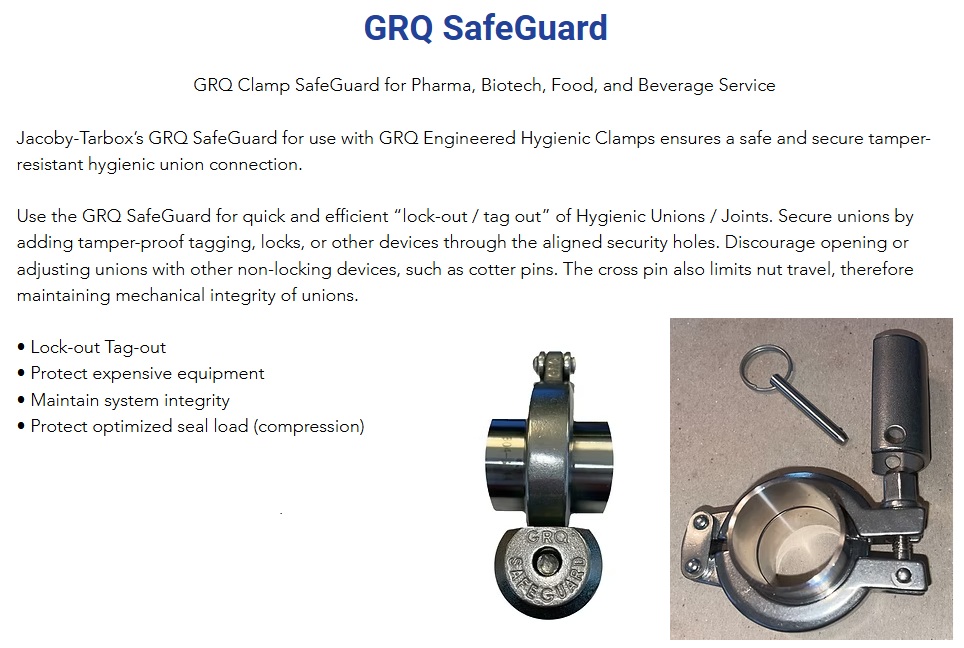

GRQ Clamp GRQ Clamp with HEX nut GRQ Clamp with All acc'y VIDEO 보기
