• SIL 3 / SC 3
• Output to Zone 0/Div. 1
• Installation in Zone 2/Div. 2
• Loop powered for NE loads
• Output short circuit proof
• Two port isolation, Input/Output

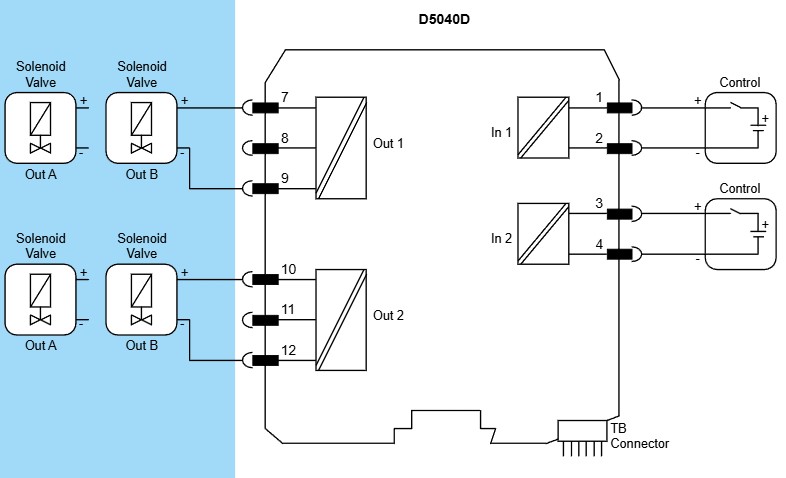

      High Density, two channels per unit (D5040D)

• SIL 3 / SC 3
• Output to Zone 0/Div. 1
• Installation in Zone 2/Div. 2
• Loop powered for NE loads
• Line & Load short/open circuit detection
• Output short circuit proof
• In-field programmability by DIP Switch
• Three port isolation, Input/Output/Fault

• SIL 3 / SC 3
• Output to Zone 0/Div. 1
• Installation in Zone 2/Div. 2
• Bus powered for NE loads
• Line & Load short/open circuit detection
• Output short circuit proof
• In-field programmability by DIP Switch
• Three port isolation, Input/Output/Fault

• SIL 2 / SC 3
• Output to Zone 0
• Installation in Zone 2
• Bus powered for NE loads
• Output short circuit proof
• Modbus RTU RS-485 for monitor & configuration
• Fully programmable operating parameters
• Three port isolation, Input/Output/Supply

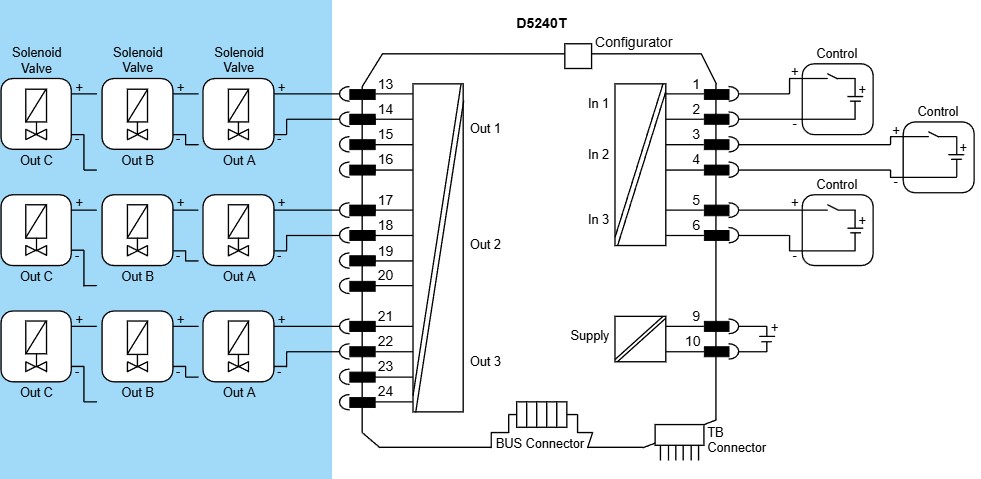

• High Density, three channels per unit

• SIL 3 / SC 3
• Input from Zone 0 / Division 1
• Installation in Zone 2 / Division 2
• Loop disconnection to ease maintenance operations
• Mechanical polarization key to prevent destructive mismatches
• Short-circuit proof
• Three different IS valve family parameters supported
• Compatible with DCS/PLC pulse testing
• Three port isolation, Input/Output/Supply

I.S. SIL3 Digital Output Driver with Diagnostics

• SIL 3 / SC 3
• Input from Zone 0 / Division 1
• Installation in Zone 2 / Division 2
• Loop disconnection to ease maintenance operations
• Mechanical polarization key to prevent destructive mismatches
• Short-circuit proof
• Three different IS valve family parameters supported
• Compatible with DCS/PLC pulse testing
• Load short/open circuit detection in ON and OFF
• Field fault mirroring to the DCS/PLC DO Card
• Selectable fault input impedance (software programmable)
• Three port isolation, Input/Output/Supply
