Model | Load | RELAY (5A Load) | Feature | ||||
|---|---|---|---|---|---|---|---|
| Relay | Contact | SVC | Coil | ||||

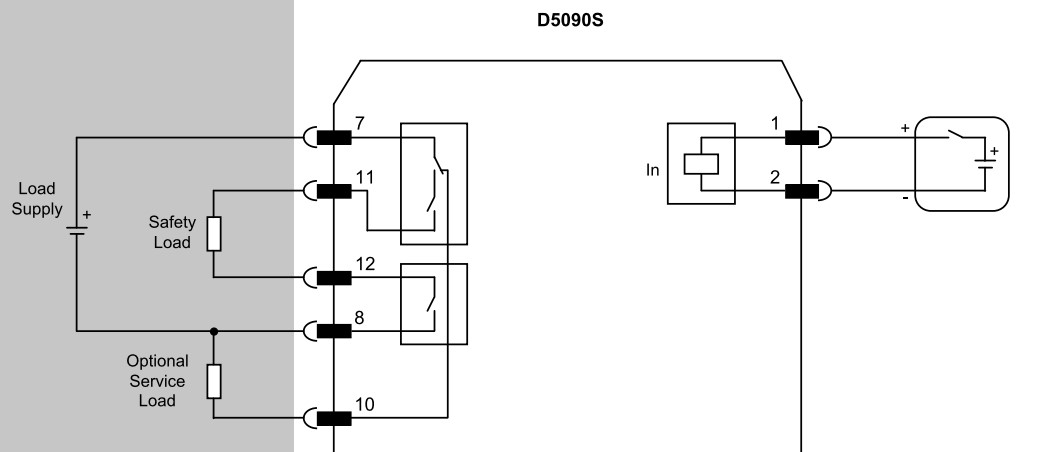

| D5090S DATA SHEET DOWN LOAD | NE | NE | NO | NC | 24Vdc |
| |

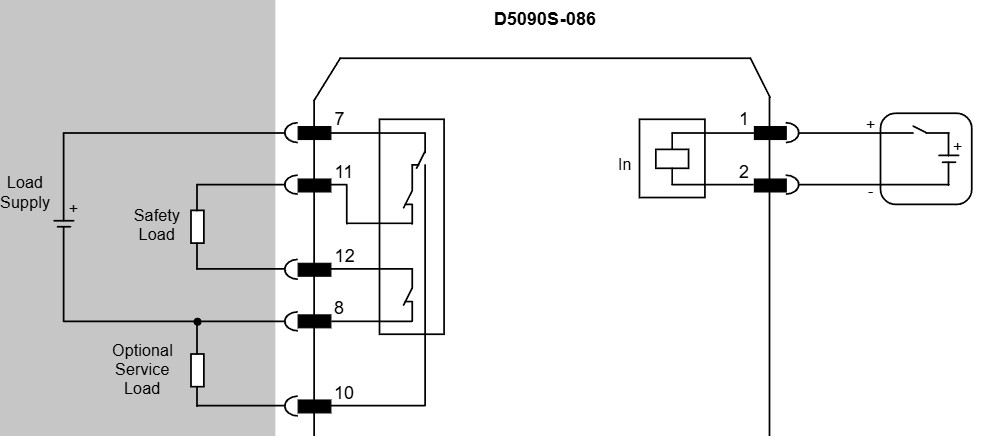

| D5090S-086 DATA SHEET | NE | ND | NC | NO | 24Vdc |
| |

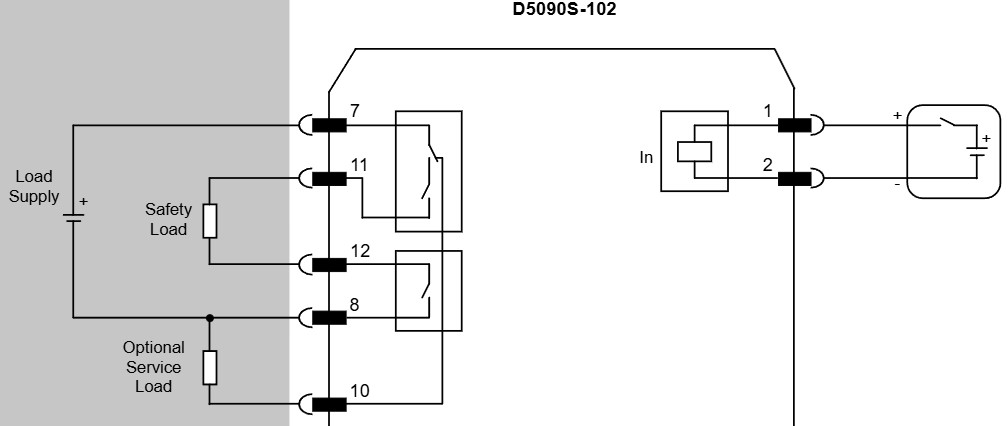

| D5090S-102 DATA SHEET SIL3 Relay Out Low-Power Module | NE | NE | NO | NC | 24Vdc |  | |

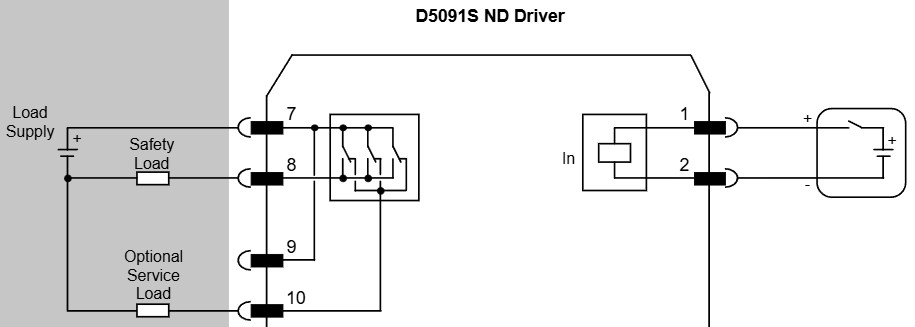

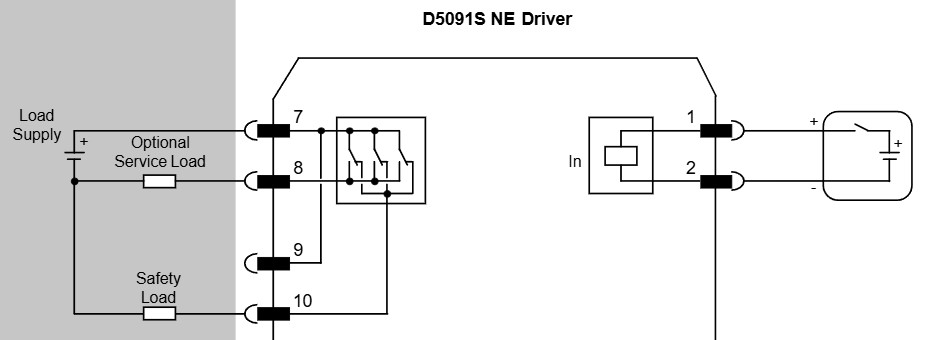

| D5091S DATA SHEET SIL3 Relay Out Module | ND | ND NE | NO NC | NO NC | 24Vdc |   | |

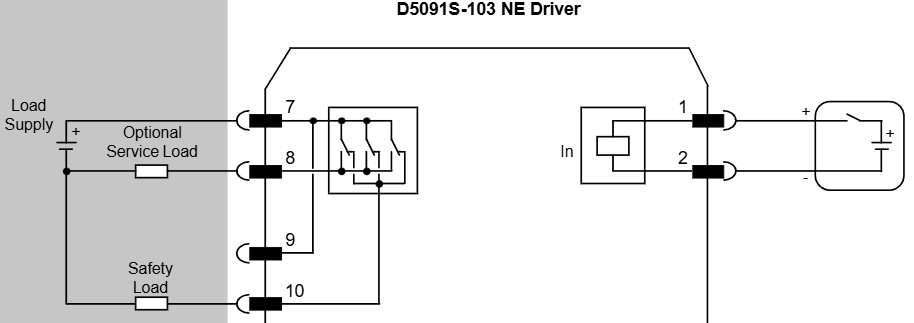

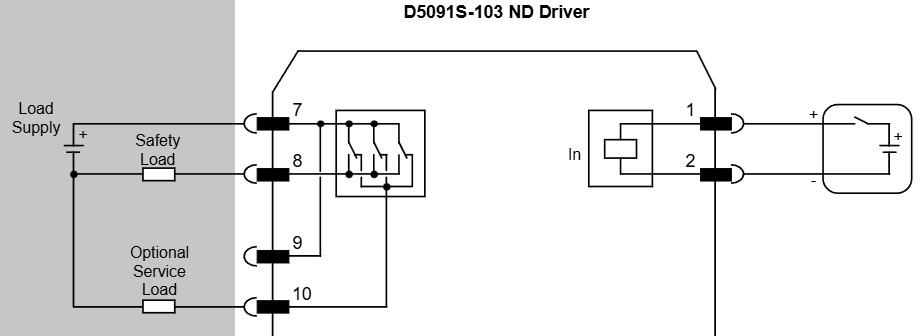

| D5091S-103 DATA SHEET SIL3 Relay Out Low-Power Module | ND F&G | ND NE | NO NC | NO NC | 24Vdc |
| |

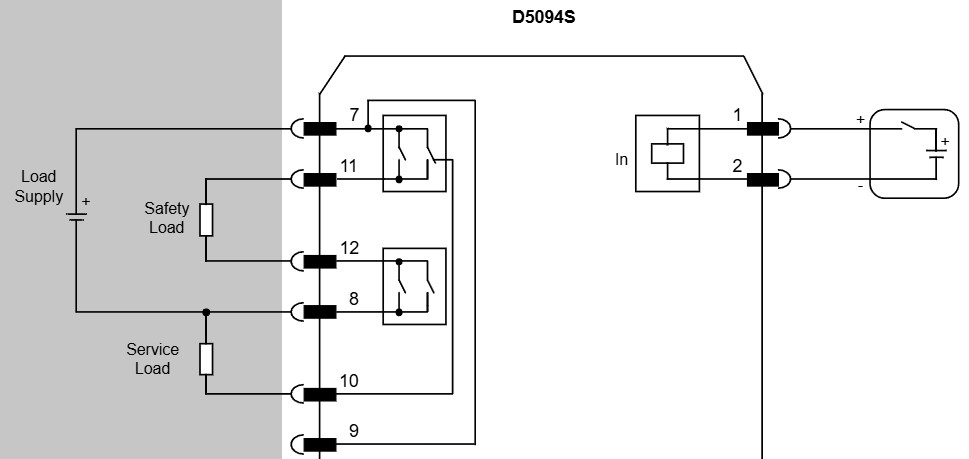

| D5094S SIL3 Relay Out High Availability | NE ND | NE ND | NO | 24Vdc |  | ||

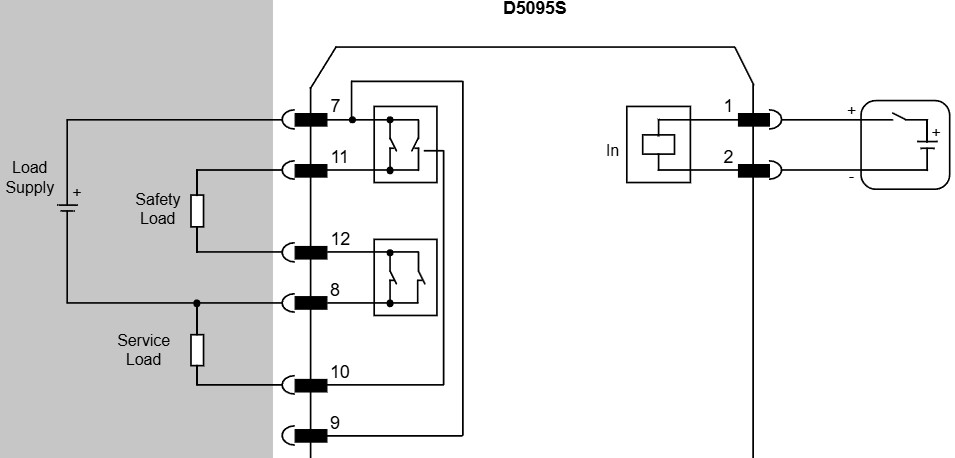

| D5095S | NE ND | NE ND | NC | 24Vdc |  | ||

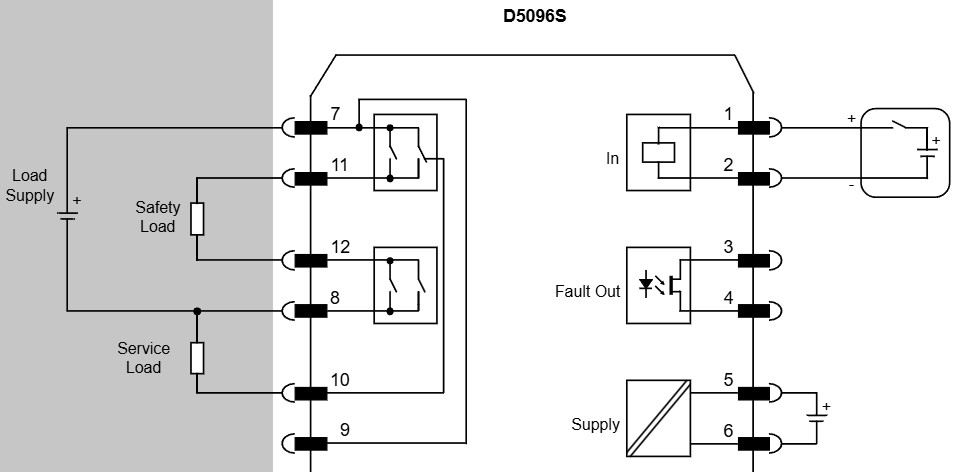

| D5096S LFD | NE ND | NE ND | NO | 24Vdc |  Line & Load Short / Open circuit detection | ||

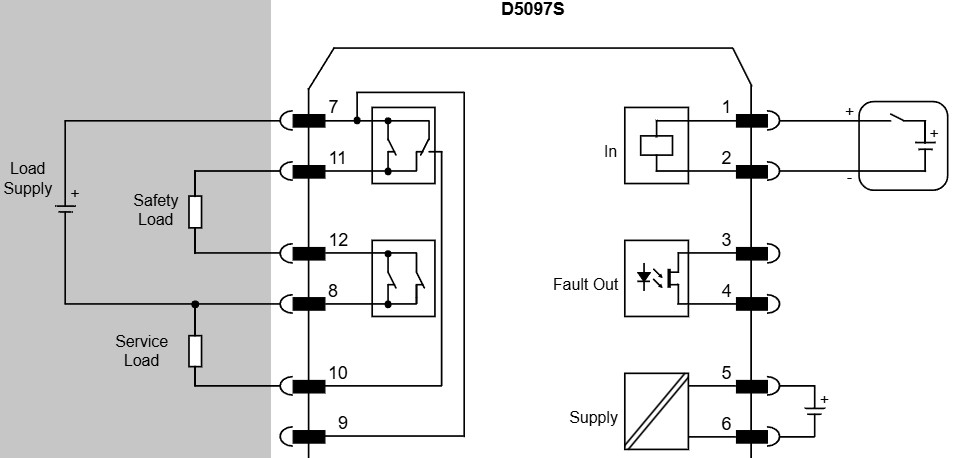

| D5097S LFD | NE ND | NE ND | NC | 24Vdc |  Line & Load Short / Open circuit detection | ||

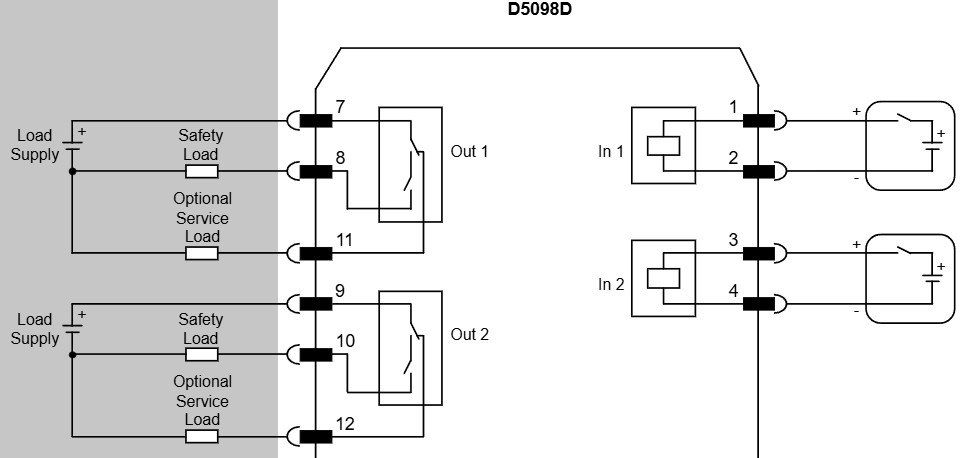

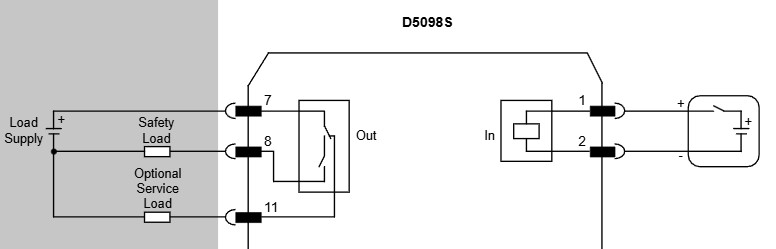

| D5098S 1ch D5098D 2ch | NE | NE | NO | 24Vdc |   | ||

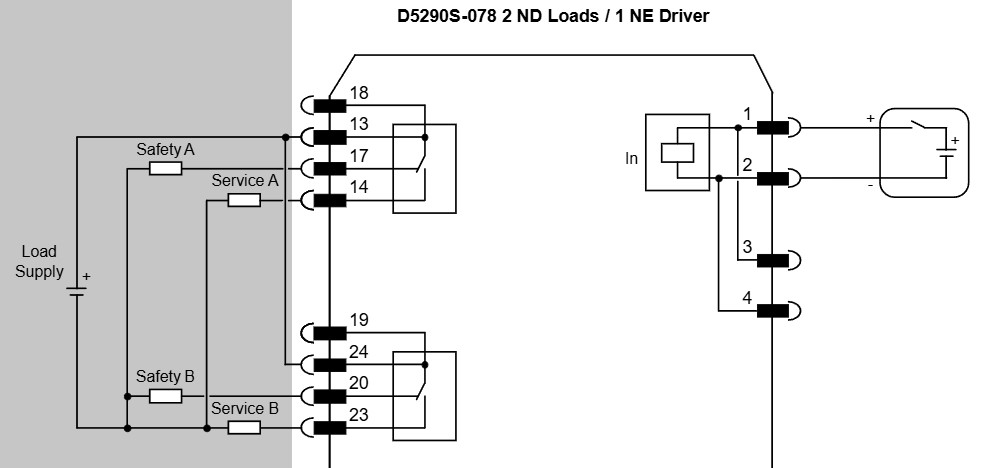

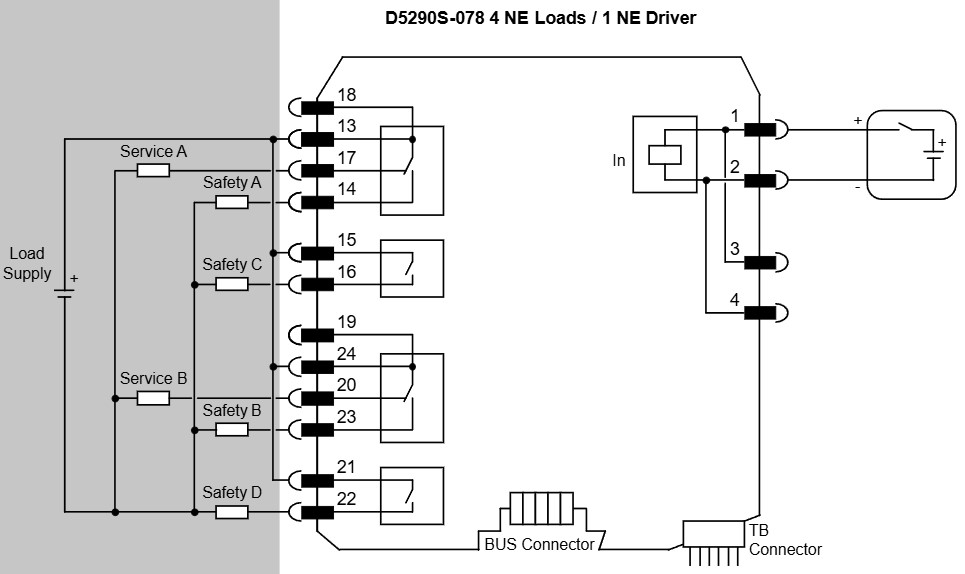

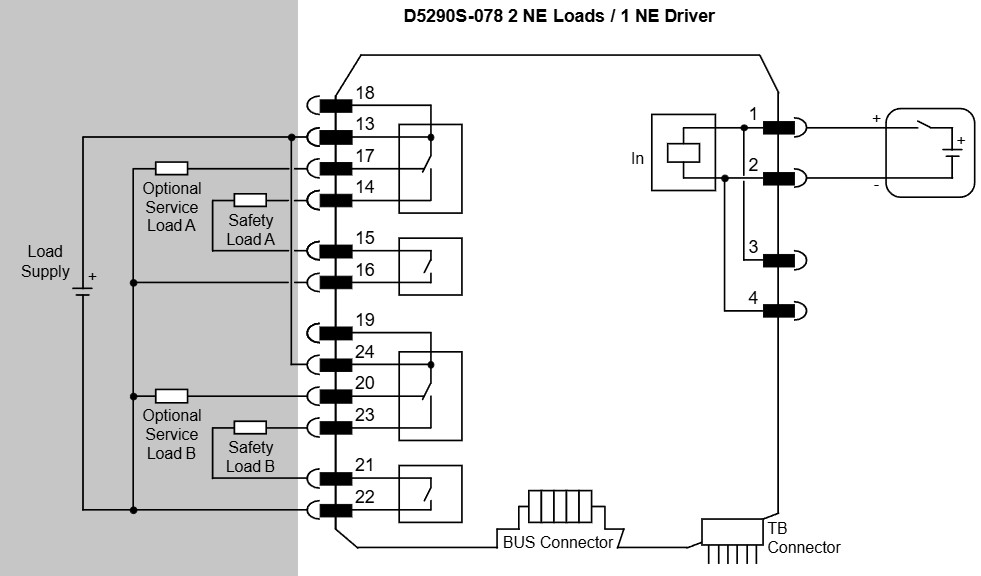

| D5290S-078 | NE ND | NE ND | NO NC | 24Vdc |    | ||
| D5290S-078/SA | NE ND | NE | NO NC | 24Vdc | |||
| D5290S-079 | NE ND | NE | NO NC | 115Vac | |||
| D5290S-084 | NE ND | NE | NO NC | 110Vac | |||
