Alarm Trips and Trip Amplifiers

Moore Industries Alarm Trips and Trip Amplifiers bring reliable and precise monitoring of critical process variables, ensuring safe and efficient operation in industrial applications. They provide on/off control, warn of trouble, or provide emergency shutdown with one or more programmable alarm (relay) outputs when a monitored process signal falls outside of a selected high and/or low limit.


MODEL
DESCRIPTION
INPUT
OUTPUT
POWER
FEATURE

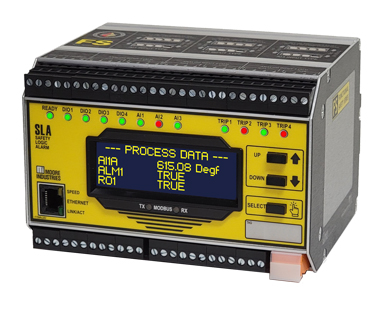

SLAFunctional Safety Multiloop Logic Solver and Alarm
6 inputs ; mV, T/C, RTD, Ohm, Current, Voltage4 SPDT relays,
3 AO (option)
RS485 Modbus (option) 		10-30 dcSIL2/3 (SC) Logic SolverDATA SHEET

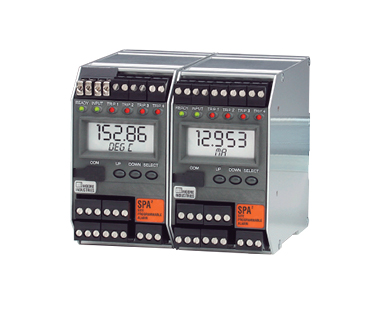

SPA2Programmable Limit Alarm Trip
mV, T/C, RTD, Ohm, Current, Voltage
4 SPDT relays or 2 DPDT relays,
1 AO (option)
21.6-375Vdc or 90-260Vac

DATA SHEET

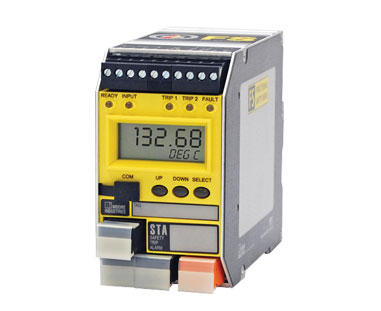

STAFunctional Safety Limit Alarm Trip
mV, T/C, RTD, Ohm, Current, Voltage
3 SPDT relays,
1 AO (option)
21.6-375Vdc or 90-260Vac
SIL2/3  (SC)  Safety Trip Alarms
Dual process relays and one fault relay		DATA SHEET

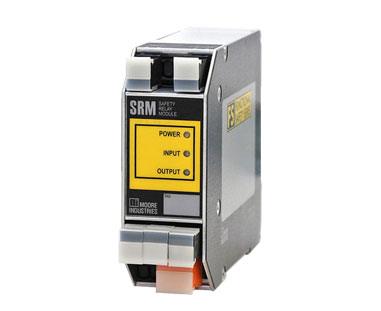

SRMFunctional Safety Relay Module
1 Contact Closure3 NO
1 NC
24dcSIL2/3 (SC)  Safety Relay
DATA SHEET

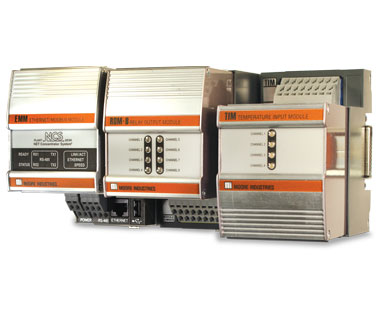

NCSNET Concentrator System with Multipoint Analog Alarm
60 AI, Temp. inputs8 Relay24dc32 Alarms and 8 physical relaysDATA SHEET

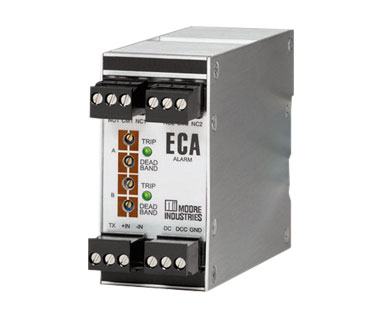

ECACurrent and Voltage Limit Alarm Trip
4-20mA, 1-5V, 0-5A ac 2 Relays24dc, 117ac, 230ac

DATA SHEET

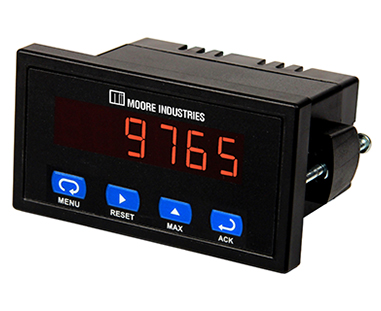

330R21/8 DIN Process and Temperature Panel Meter & Alarm
T/C, RTD, Current, Volt2 SPDT Relays
1 AO (option)		12-24VAC or 12-36VDC (LO)
85-265VAC or 90-265VDC (HI)
Process and Temperature MeterDATA SHEET

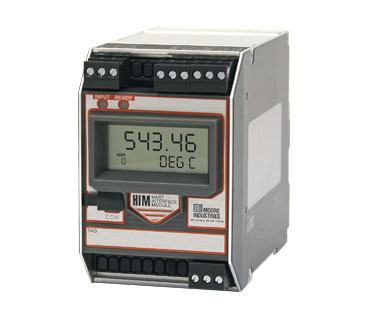

HIMSmart HART® Loop Interface and Monitor
HART2AO, 3AO, MB, MB1AO, 24dc1 DPDT relay (option) or 2 SPDT relays (option)
DATA SHEET

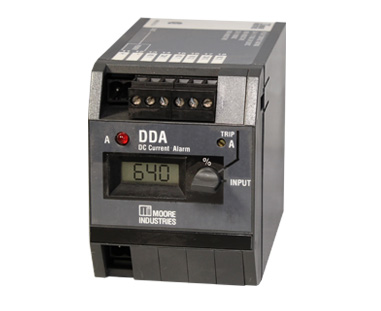

DDACurrent and Voltage Limit Alarm Trip
0-20mA, 1-5mA, 4-20mA, 10-50mA, 0-1V,  0-5V, 1-5V, 0-10V
1 DPDT relay or 2 SPDT relays24dc1 AO (option)DATA SHEET

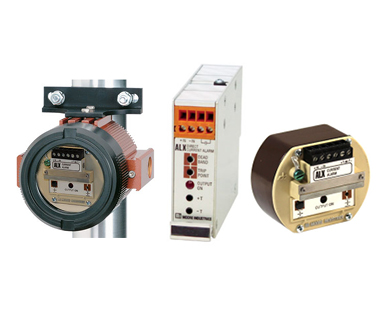

ALXALX 2-Wire Direct Current Alarm
4-20mA, 10-50mA
1 SPST (CC) relayLoop Power
DATA SHEET
