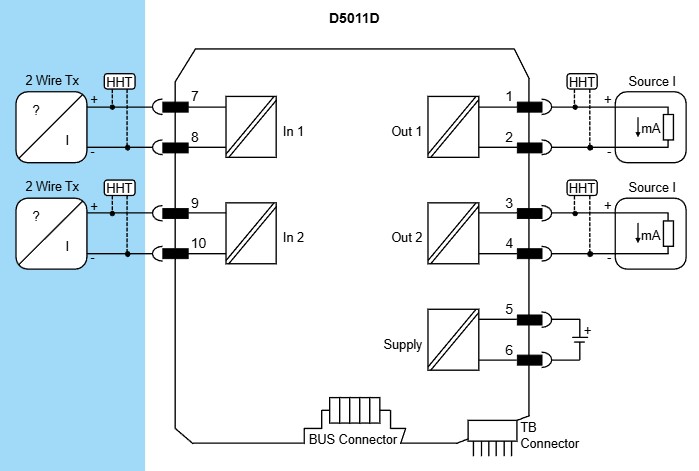

D5011D (2ch)

• SIL 3 / SC 3
• Input from Zone 0/Div. 1
• Installation in Zone 2/Div. 2
• 4-20 mA Passive Input, Source Output
• HART® compatible
• Input and Output short circuit proof
• High Accuracy
• Three port isolation, Input/Output/Supply
•
  High Density, two channels per unit (5011D)

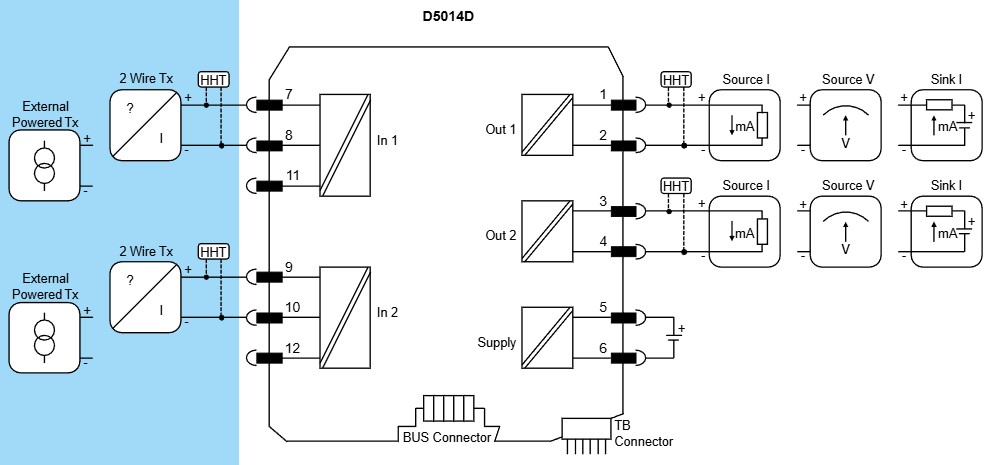

• SIL 3 / SC 3
• Input from Zone 0/Div. 1
• Installation in Zone 2/Div. 2
• 4-20 mA Active-Passive Input, Source-Sink Output
• HART® compatible
• Input and Output short circuit proof
• In-field programmability by DIP Switch
• High Accuracy
• Three port isolation, Input/Output/Supply



• High Density, two channels per unit (5014D)

I.S. SIL2 2/4-Wire HART® Transmitter Power Supply

• SIL 2 / SC 3
• Input from Zone 0/Div. 1
• Installation in Zone 2/Div. 2
• 4-20 mA Active-Passive Input, Source-Sink Output
• HART® compatible
• Input and Output short circuit proof
• High Accuracy
• Three port isolation, Input/Output/Supply

• SIL 2 / SC 3
• Input from Zone 0/Div. 1
• Installation in Zone 2/Div. 2
• 4-20 mA Active-Passive Input, Source Output
• HART® compatible
• Input and Output short circuit proof
• High Accuracy
• Three port isolation, Input/Output/Supply

• SIL 3 / SC 3
• Input from Zone 0/Div. 1
• Installation in Zone 2/Div. 2
• 4-20 mA Source-Sink Output
• HART® compatible
• High Accuracy
• Three port isolation, Input/Output/Supply

• SIL 3 / SC 3
• Input from Zone 0/Div. 1
• Installation in Zone 2/Div. 2
• 4-20 mA Source-Sink Output
• HART® compatible
• High Accuracy
• Three port isolation, Input/Output/Supply
• High Density, two channels per unit

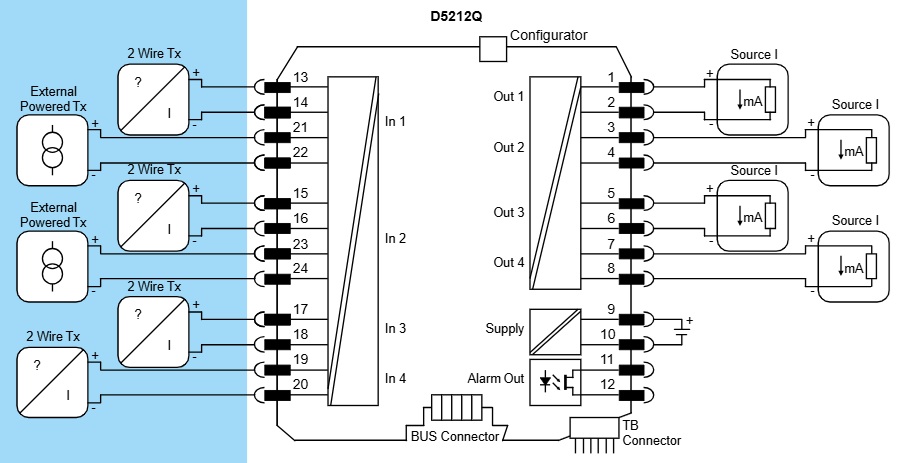

• SIL 2 / SC 3
• Input from Zone 0/Div. 1
• Installation in Zone 2/Div. 2
• 0/4-20 mA Active-Passive Input, Source Output
• Duplication/inversion/scaling output
• Input operations (sum, dif, max, min) available
• Input and Output short circuit proof
• Out of range fault detection
• Alarm output with user-settable trip points
• Modbus RTU RS-485 for monitor & configuration
• Fully programmable operating parameters
• High Accuracy, µP controlled A/D converter
• Three port isolation, Input / Output / Supply
• High Density, four channels per unit

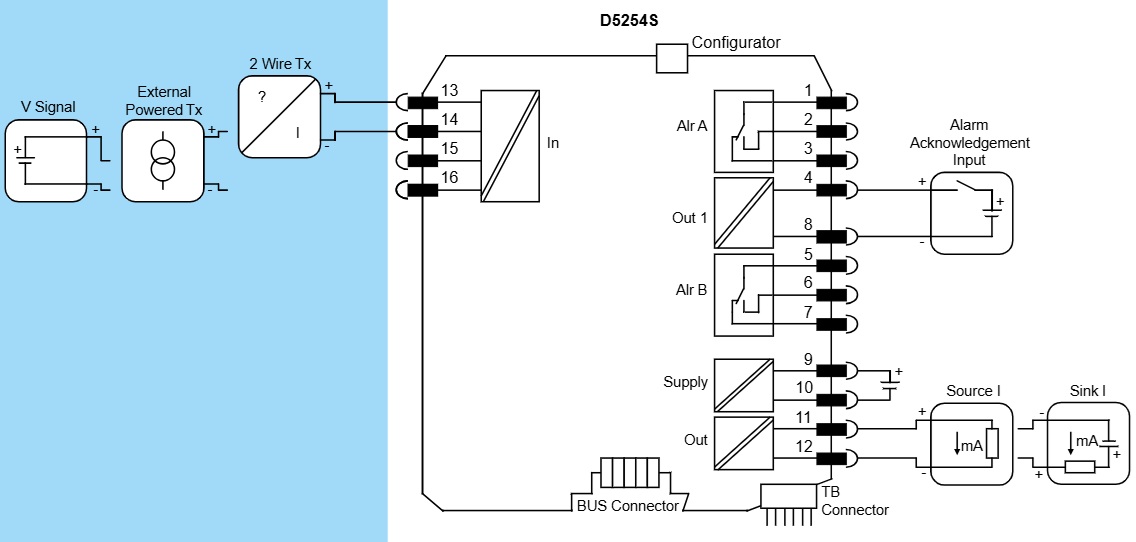

I.S. SIL2 2/4-Wire Transmitter Trip Amplifier

• SIL 2 / SC 3
• Input from Zone 0/Div. 1
• Installation in Zone 2/Div. 2
• ±12 V Voltage Input
• 0/4-20 mA Active-Passive Input, Source-Sink Output
• Input and Output short circuit proof
• Modbus RTU RS-485 for monitor & configuration
• Out-of-range fault detection
• Optional alarm acknowledgement input
• Fully programmable operating parameters
• High Accuracy, μP controlled A/D converter
• Three port isolation, Input/Output/Supply

        SIL 2, 3 / SC 3

        Input from Zone 0 / Division 1

• Installation in Zone 2 / Division 2
• Loop disconnection to ease maintenance operations
• Mechanical polarization key to prevent destructive mismatches
• 4-20 mA 2-wire Active-Passive Input
• HART® compatible
• Out-of-range fault according to IEC 60947-5-6 NAMUR NE 43
• Input and Output short circuit proof
• High Accuracy
• Three port isolation, Input/Output/Supply

SIL 3 / SC 3
