I/P and P/I Converters
Convert a current signal to a pneumatic signal so a DCS, PLC, or host system can control a valve or actuator; or convert pneumatic signals to current signals so remote pneumatic devices can interface with control and monitoring systems.
MODEL | DESCRIPTION | INPUT | OUTPUT | POWER | FEATURE | ||
|---|---|---|---|---|---|---|---|

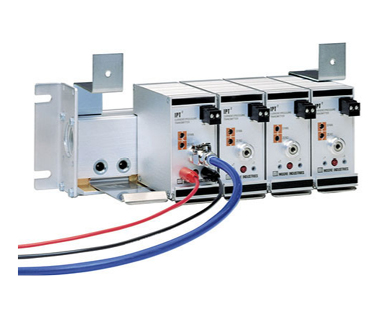

 | IPT2 | IPT2 Current-to-Pressure (I/P) Transmitter | 4-20mA, 4-12mA, 12-20mA | 0.2 - 1Bar | 1.4 Bar (Supply Pressure) | DATA SHEET | |

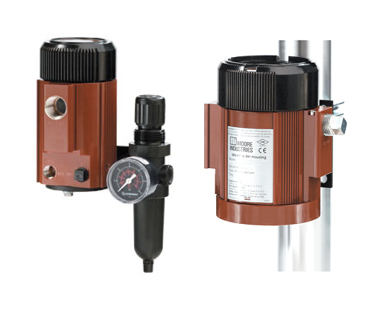

 | IPH2 & IPX2 | Type 4X & Explosion-Proof/Flameproof Current-to-Pressure (I/P) Transmitters | 4-20mA, 4-12mA, 12-20mA | 0.2 - 1Bar | 1.4 Bar (Supply Pressure) | IPH2 : NEMA4X IPX2 : Explosion Proof | DATA SHEET |

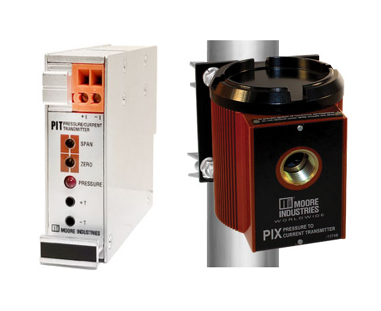

 | PIT | Pressure-to-Current Transmitters (2 wire DIN Housing) | 0-5PSIG, 0-7PSIG, 0-10PSIG, 0-15PSIG, 0-27PSIG 0-30PSIG, 0-60PSIG, 0-100PSIG, 3-15PSIG, 3-27PSIG, 5-25PSIG 6-30PSIG 10-50PSIG 0.2-1BAR, 0.4-2BAR, 0-6BAR, 20-100KPA, 20-186KPA, 0-500KPA 0.02- 0.10MPA, 0.2-1KGCM2, 0-30INHG | 4-20mA | 12-24DC, 12-30DC, 12-42DC | special ranges available, consult factory for specification changes | DATA SHEET |
| PIX | 2-wire, Hockey Puck Housing | 3-15PSIG,3-27PSIG , 0.2-1BAR, 0.2-1KGCM2, 20-100KPA | 4-20mA | 12-24DC, 12-42DC | |||
| PIF | 2-wire, Thermoplastic Housing | 12-42DC | |||||
| PIT | 4-wire, Standard Housing | 117AC, 220AC, 240AC | |||||

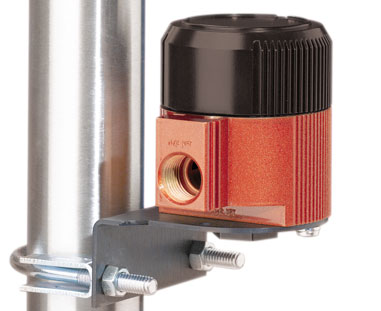

 | PIH | Field-Mount Pressure-to-Current Transmitter | 0-15PSIG 3-15PSIG 0-30PSIG 3-27PSIG 6-30PSIG 0.2-1BAR 0.2-1KGCM2 20-100KPA 20-186KPA | 4-20mA | 12-42DC | DATA SHEET |
