aplSwitch Field

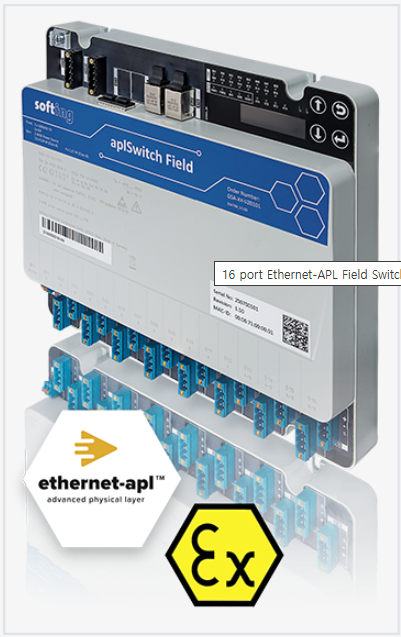

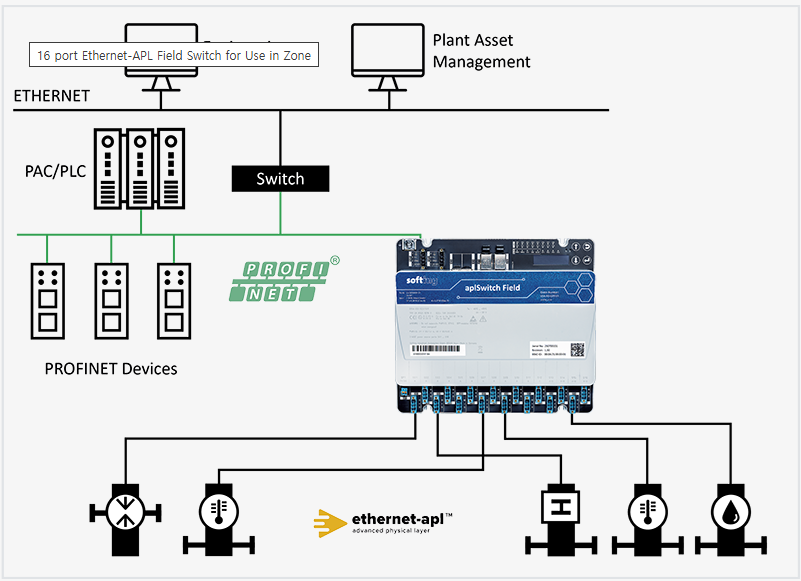

16 port Ethernet-APL Field Switch for Use in Zone 2


OVERVIEW

Ethernet APL for Seamless and Reliable Integration into DCS and AMS Systems

  • 16 Ethernet APL spur "2-WISE" ports
  • PROFINET enabled switch with support for PROFINET MRP ring topology
  • Supports all major DCS and AMS systems like Emerson, Siemens, ABB and others
  • Ensures stable networks via ingress/egress support

Extensive diagnostics

  • Integrated PROFINET diagnostic functions for easy commission, maintenance and trouble shooting
  • Local display for instant commissioning diagnostics
  • Enhanced FDI support for easy device integration and parametrization

Allows Installation in Hazardous Areas

  • All product variants can be installed in Ex zone 2
  • Field Devices located in Ex zone 0 and 1 can be connected to the switch
  • Rugged and robust housing for field installation IP30

PowerClass A and B support for APL Field devices

  • Allows usage of more complex/power intensive field devices
  • APL power class B supports up to 1,17 W per device on 4 ports
  • Futureproof since no limitation to power class A with 0,54 W


DATA SHEET

aplSwitch Field PA

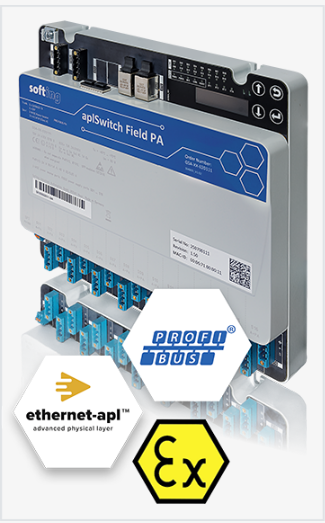

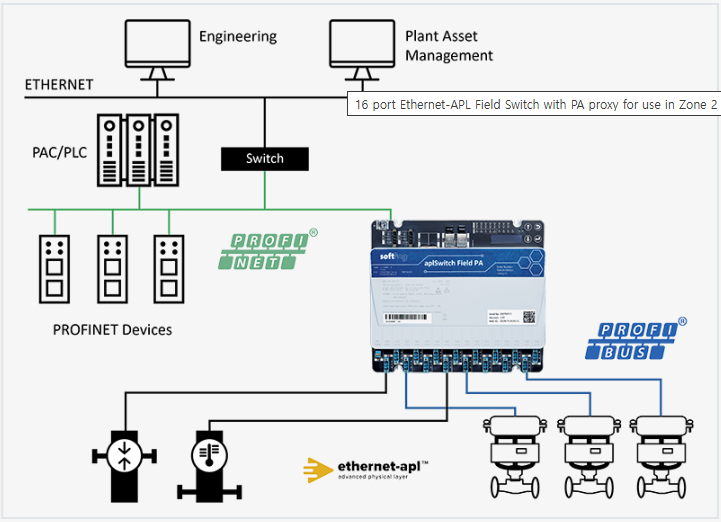

16 port Ethernet-APL Field Switch with PA proxy for use in Zone 2


OVERVIEW

Ethernet APL for Seamless and Reliable Integration into DCS and AMS Systems

  • 16 Ethernet APL spur "2-WISE" ports
  • PROFINET enabled switch with support for PROFINET MRP ring topology
  • Supports all major DCS and AMS systems like Emerson, Siemens, ABB and others
  • Ensures stable networks via ingress/egress support

Extensive diagnostics

  • Integrated PROFINET diagnostic functions for easy commission, maintenance and trouble shooting
  • Local display for instant commissioning diagnostics
  • Enhanced FDI support for easy device integration and parametrization

Allows Installation in Hazardous Areas

  • All product variants can be installed in Ex zone 2
  • Field Devices located in Ex zone 0 and 1 can be connected to the switch
  • Rugged and robust housing for field installation IP30

Connects Ethernet-APL and PROFIBUS PA devices

  • Easy migration of the existing PA infrastructure to the APL topology
  • Support Either Ethernet-APL or PROFIBUS PA devices or a mixture of these devices on one switch
  • PROFIBUS PA devices are accessible over integrated PROFINET proxy

DATA SHEET

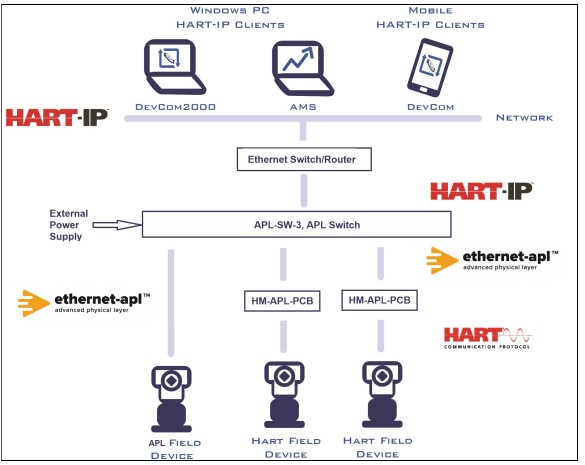

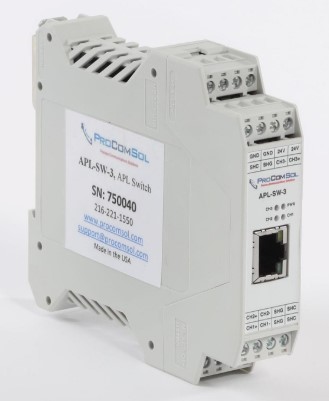

Ethernet-APL Switch, 3 Channels

Features and Benefits:

  • SLAA Class APL device
  • Connect up to 3 APL devices to Ethernet
  • Rugged ABS plastic enclosure
  • Works with DevCom2000, DevCom.iOS, and DevComDroid
  • 1 Year warranty
  • HART-IP Support
  • 3 Channels
  • RJ45 connection to Ethernet
  • 24 Vdc input power
  • DIN Rail mounting

DATA SHEET

MODEL
DESCRIPTION
INPUT
OUTPUT
POWER
FEATURE


HESHART® to Ethernet Gateway System
HARTEthernet :
HART-IP
Modbus/TCP		9-30dc1ch HART, 4ch HARTDATA SHEET
HCS
HART® Concentrator System HART-to-MODBUS RTU Converter
HARTMB485
MB232		9-30dc
Modbus RTUDATA SHEET
HIMSmart HART® Loop Interface and Monitor
HART2AO, 3AO, MB, MB1AO24dc1 DPDT relay (option) or 2 SPDT relays (option)
DATA SHEET

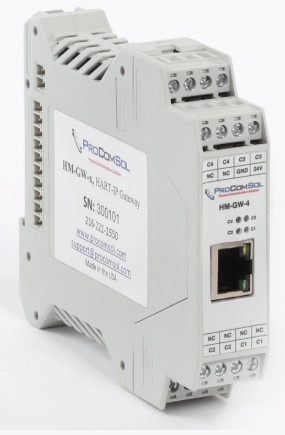

HM-GW-4, 8, 12, 16HART® to HART-IP Gateway
4, 8, 12, 16 channels		HARTHART-IP24dcHART physical layer spec HCF_SPEC-54 meetDATA SHEET

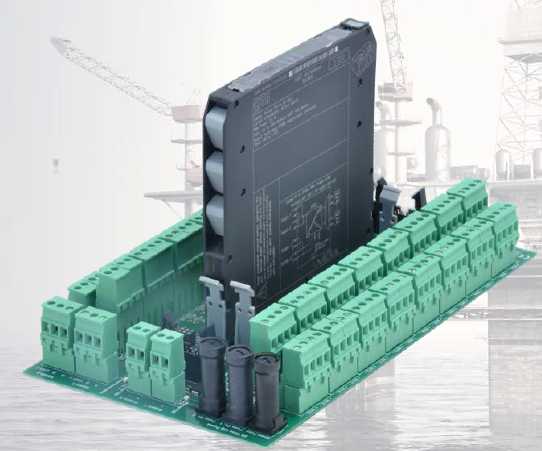

5700SIL 3 HART® Mux Modem
HARTRS48524dc

HART Multiplex Modem, up to 256channels, expand to 16,128 loops

DATA SHEET

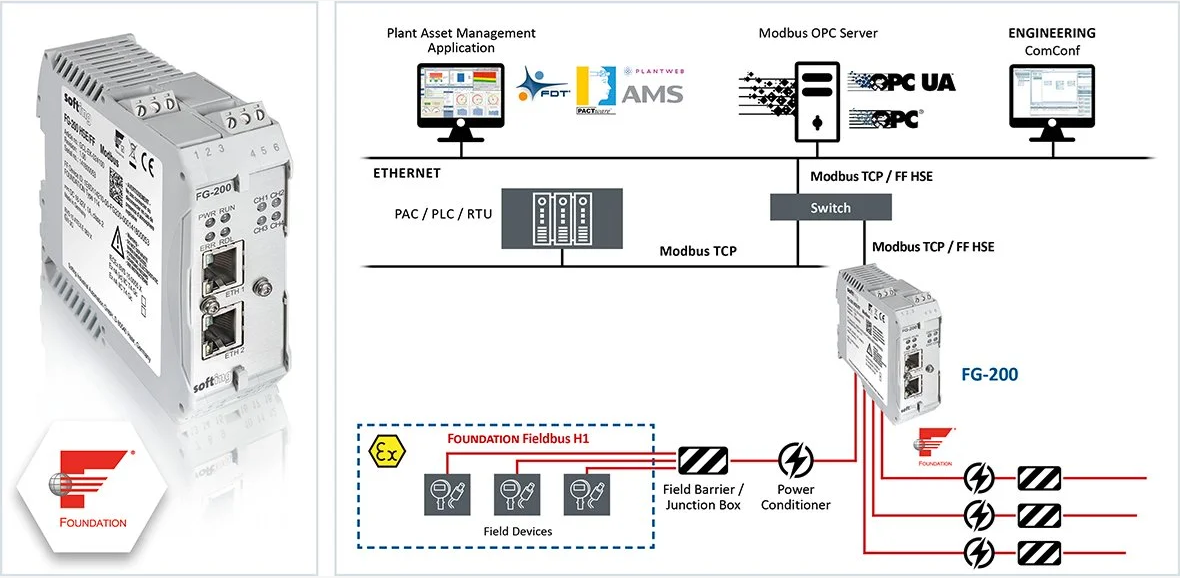

Modbus TCP/FF HSE to FF H1 Gateway / FG-200

Direct FF H1 segment integration - Modbus TCP control systems or FF HSE asset management applications


With Softing’s FG-200, it is possible to integrate up to four FOUNDATION™ Fieldbus (FF) H1 links into control systems supporting Modbus TCP or into FF asset management applications. The FG-200 provides redundancy and is suitable for use in hazardous areas. This device features fast access to process data, while making use of FF advantages like reduced cabling, central field device parameterization, comprehensive diagnostics, or intrinsically safe device segments.



Videos
Creation of a Configuration
Access FF H1 Parameter
Adaptation of Modbus Mapping


OVERVIEW

Integration of FF-H1 devices into Modbus TCP control systems

  • Parallel support of up to 4 FF-H1 channels, each for max. 16 field devices
  • Fast access to process data
  • Suitable for use in hazardous areas
  • FF Configuration Tool for easy commissioning

Access to FF H1 devices from plant asset management applications

  • Visitor mode for avoiding interference with network behavior
  • FF HSE interface for EDD based applications like Emerson’s AMS Device Manager (< V14.5 or >= V15)
  • DTM for FDT applications like PACTware, Yokogawa FieldMate, Honeywell FDM, E+H FieldCare

High availability

  • Redundancy link enabling device redundancy (D-3 according to FF-593)
  • Automatic mirroring of configuration data
  • Very fast redundancy switchover
DATA SHEET

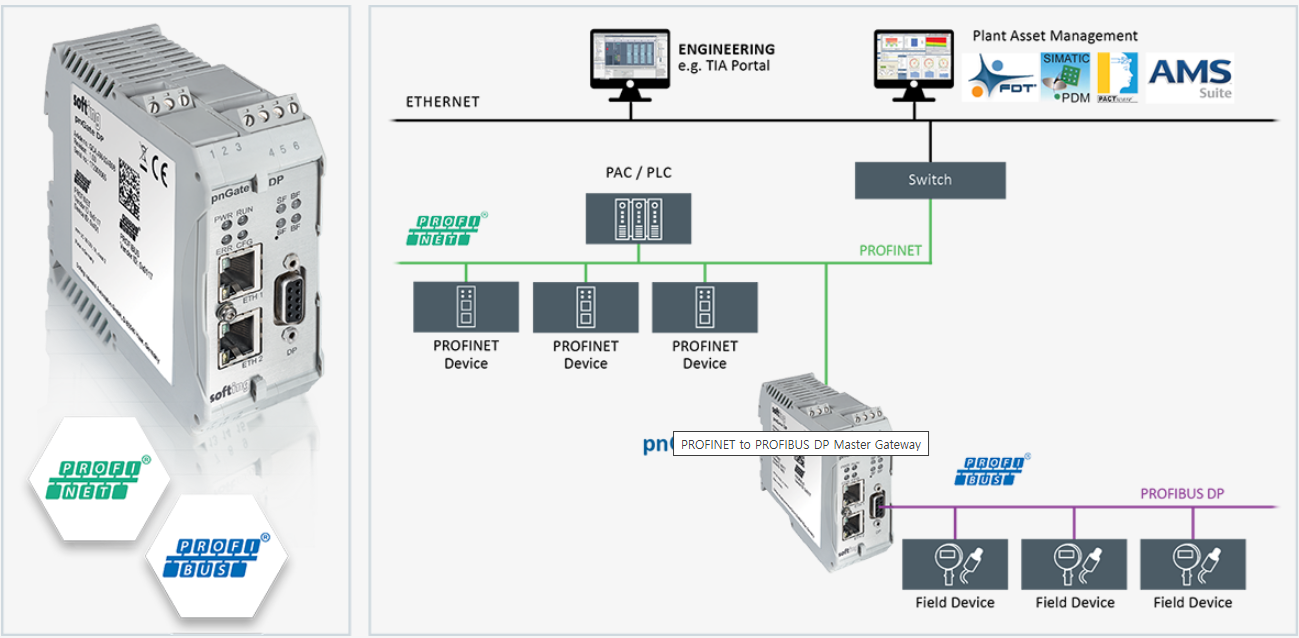

PROFINET to PROFIBUS DP Master Gateway / pnGateDP

Simple connection of PROFIBUS DP Slave Devices to PROFINET Control Systems via Internal I/O Mapping


With pnGate DP it is possible to integrate one PROFIBUS DP segment into PROFINET control systems using virtual mapping. With pnGate DP the engineering costs can be reduced since it re-uses existing PROFIBUS DP segment without the requiring modification. It provides S2 redundancy and enables configuration, parameterization and plant asset management using standard industry tools.


Videos
PROFIBUS Configuration with pnGate PA/PB
Easy Parameterization of PROFIBUS PA Devices
Easy Parameterization of PROFIBUS PA Devices - SIMATIC
Easy Connection of PROFIBUS PA and DP Slaves to PROFINET

OVERVIEW

Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools

  • Supports major PROFINET engineering tools such as TIA Portal, Step7 und PC WORXS
  • Included CommDTM allowing use in FDT/DTM frame applications
  • EDD-based device parametrization using Siemens Simatic PDM

Direct Connectivity to PROFIBUS Segments

  • Single access point to PROFIBUS DP segment from PROFINET networks
  • Acting as PROFINET device and PROFIBUS DP master
  • Support of one PROFIBUS DP segment
  • Support of up to 32 PROFIBUS devices

Key Component for Transition to State-of-the-Art Technology

  • Re-use of existing PROFIBUS segments without requiring modification
  • Support of MRP and S2 PROFINET redundancy for increased reliability
DATA SHEET

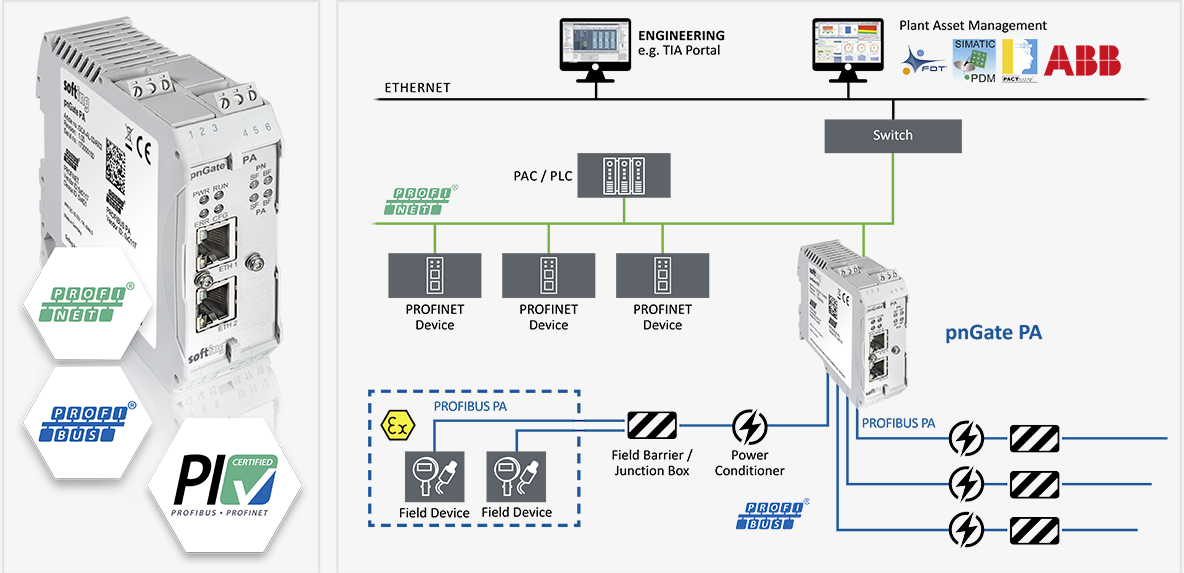

PROFINET to PROFIBUS PA Master Gateway / pnGate PA

Direct PROFIBUS PA Segment Integration into PROFINET Control Systems


With pnGate PA it is possible to integrate up to 4 PROFIBUS PA segments into PROFINET systems using virtual mapping. With pnGate PA the engineering costs can be reduced since it re-uses existing power conditioners in technology upgrade projects. It provides S2 redundancy and enables configuration, parameterization and plant asset management using standard industry tools.




OVERVIEW

Key Component for Transition to State-of-the-Art Technology

  • Simple replacement of installed PROFIBUS DP/PA segment couplers
  • Re-use of existing PROFIBUS PA segments without requiring modification
  • Support of MRP and S2 PROFINET redundancy for increased reliability

Direct Connectivity to PROFIBUS Segments

  • Acting as PROFINET Device and PROFIBUS PA Master
  • Support of up to 4 PROFIBUS PA segments
  • Support of up to 64 PROFIBUS devices

Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools

  • Supports major PROFINET engineering tools such as TIA Portal, Step7 and PC WORXS
  • Included CommDTM allowing use in FDT/DTM frame applications
  • EDD-based device parametrization using Siemens Simatic PDM
  • Supports ABB FIM via FIMLET


DATA SHEET

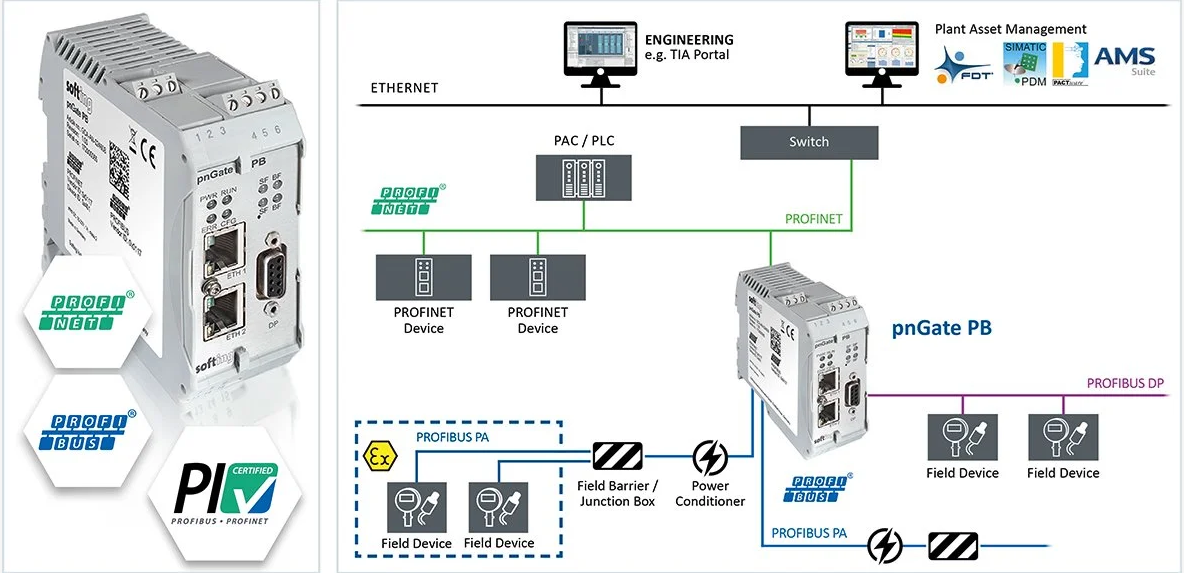

PROFINET to PROFIBUS DP/PA Master Gateway / pnGate PB

Direct Integration of PROFIBUS DP and PA Segments into PROFINET Control Systems


With pnGate PB it is possible to integrate up to 2 PROFIBUS PA segments and 1 PROFIBUS DP segment into PROFINET systems using virtual mapping. With pnGate PB the engineering costs can be reduced since it re-uses existing power conditioners in technology upgrade projects. It provides S2 redundancy and enables configuration, parameterization and plant asset management using standard industry tools.

OVERVIEW

Key Component for Transition to State-of-the-Art Technology

  • Simple replacement of installed PROFIBUS DP/PA segment coupler
  • Re-use of existing PROFIBUS segments without requiring modification
  • Support of MRP and S2 PROFINET redundancy for increased reliability

Direct Connectivity to PROFIBUS Segments

  • Single access point to PROFIBUS DP and PROFIBUS PA segments from PROFINET networks
  • Acting as PROFINET Device, PROFIBUS PA and PROFIBUS DP Master
  • Support of one PROFIBUS DP segment and up to two PROFIBUS PA segments
  • Support of up to 64 PROFIBUS devices

Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools

  • Supports major PROFINET engineering tools such as TIA Portal, Step7 and PC WORXS
  • Included CommDTM allowing use in FDT/DTM frame applications
  • EDD-based device parametrization using Siemens Simatic PDM


DATA SHEET

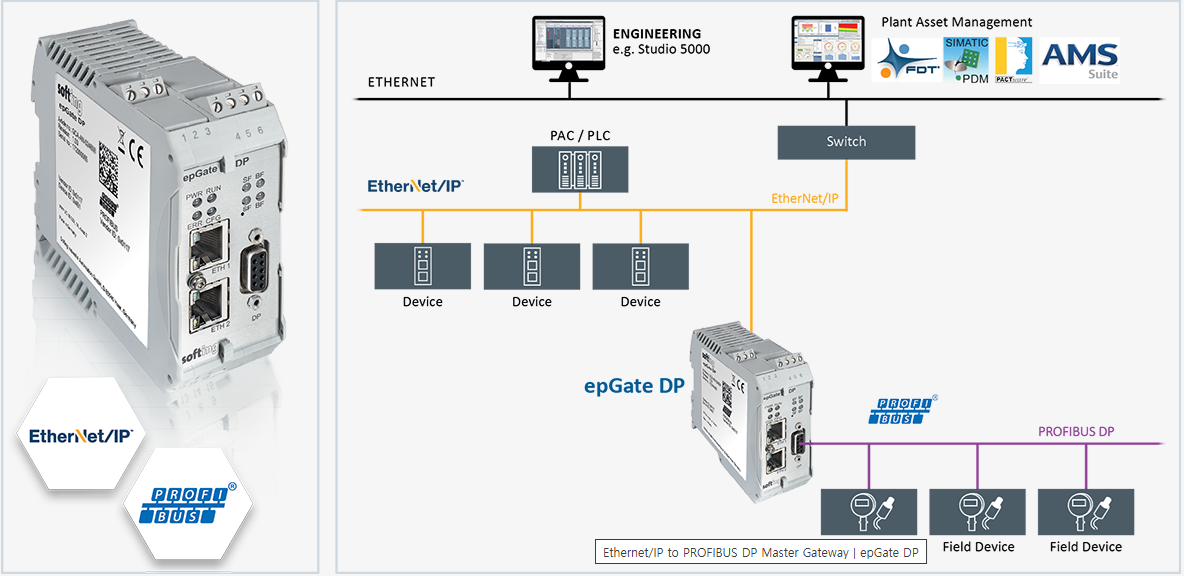

Ethernet/IP to PROFIBUS DP Master Gateway / epGate DP

Simple connection of PROFIBUS DP Slave Devices to Ethernet/IP Control Systems via Internal I/O Mapping


With epGate DP it is possible to integrate one PROFIBUS DP segment into Ethernet/IP control systems. With epGate DP the engineering costs can be reduced since it re-uses existing PROFIBUS DP segment without the requiring modification. It enables configuration, parameterization and plant asset management using standard industry tools.

OVERVIEW

Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools

  • Supports major EtherNet/IP engineering tools such as Studio 5000 and AMS Device Manager
  • Included CommDTM allowing use in FDT/DTM frame applications
  • EDD-based device parametrization using Siemens Simatic PDM

Direct Connectivity to PROFIBUS Segments

  • Single access point to PROFIBUS DP segment from EtherNet/IP networks
  • Acting as EtherNet/IP device (adapter) and PROFIBUS DP master
  • Support of one PROFIBUS DP segment
  • Support of up to 32 PROFIBUS devices

Key Component for Transition to State-of-the-Art Technology

  • Re-use of existing PROFIBUS segments without requiring modification
  • Support of common control systems e.g. Emerson DetlaV or Rockwell Control Logix
  • Support of DLR for redundant communication in the ring with EtherNet/IP

Simple Integration Through Add-On Instructions

  • Data access of PLC program to PROFIBUS devices without requiring detailed PROFIBUS knowledge
  • Mapping between the two protocols generated by provided tools
  • Use of Add-On Instructions (AOI) containing detailed PROFIBUS data type definitions
  • Transparent communication overcoming protocol differences
  • Optimized for usage with Allen Bradley controllers

DATA SHEET

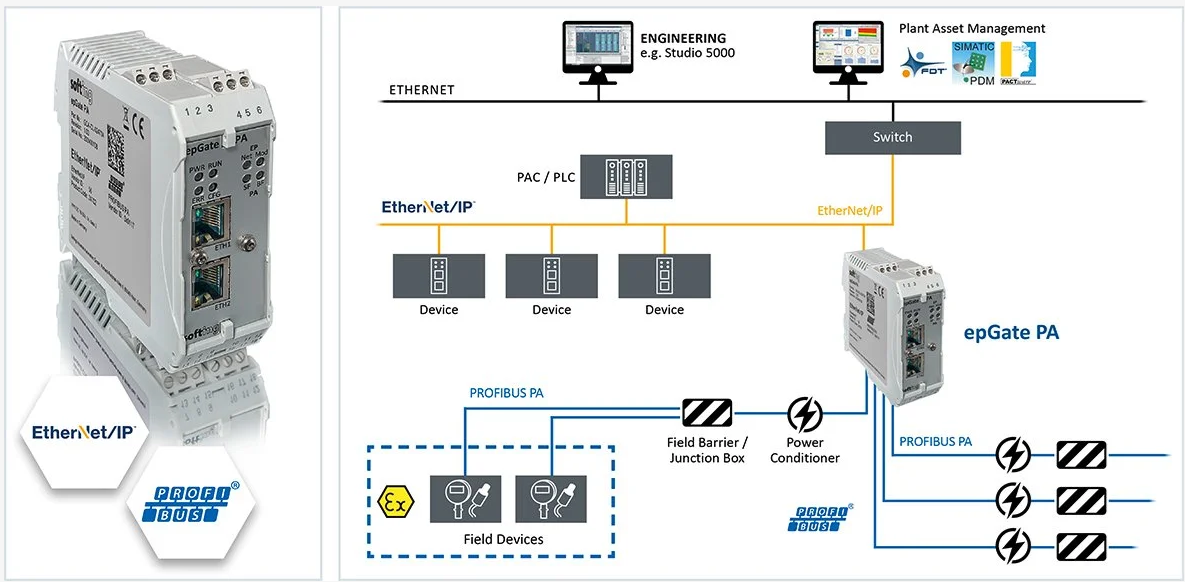

Ethernet/IP to PROFIBUS PA Master Gateway / epGate PA

Direct Integration of PROFIBUS PA Segments into Ethernet/IP Control Systems


With epGate PA it is possible to integrate up to 4 PROFIBUS PA segments into Ethernet/IP. With epGate PA the engineering costs can be reduced since it re-uses existing power conditioners in technology upgrade projects. It enables configuration, parameterization and plant asset management using standard industry tools.

OVERVIEW

Key Component for Transition to State-of-the-Art Technology

  • Simple replacement of installed PROFIBUS DP/PA segment couplers
  • Re-use of existing PROFIBUS PA segments without requiring modification
  • Support of common control systems e.g. Emerson DetlaV or Rockwell Control Logix
  • Support of DLR for redundant communication in the ring with EtherNet/IP

Direct Connectivity to PROFIBUS Segments

  • Acting as EtherNet/IP device (adapter) and PROFIBUS PA Master
  • Support of up to 4 PROFIBUS PA segments
  • Support of up to 64 PROFIBUS devices

Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools

  • Supports major EtherNet/IP engineering tools such as Studio 5000 and AMS Device Manager
  • Included CommDTM allowing use in FDT/DTM frame applications
  • EDD-based device parametrization using Siemens Simatic PDM

Simple Integration Through Add-On Instructions

  • Data access of PLC program to PROFIBUS devices without requiring detailed PROFIBUS knowledge
  • Mapping between the two protocols generated by provided tools
  • Use of Add-On Instructions (AOI) containing detailed PROFIBUS data type definitions
  • Transparent communication overcoming protocol differences
  • Optimized for usage with Allen Bradley controllers

DATA SHEET

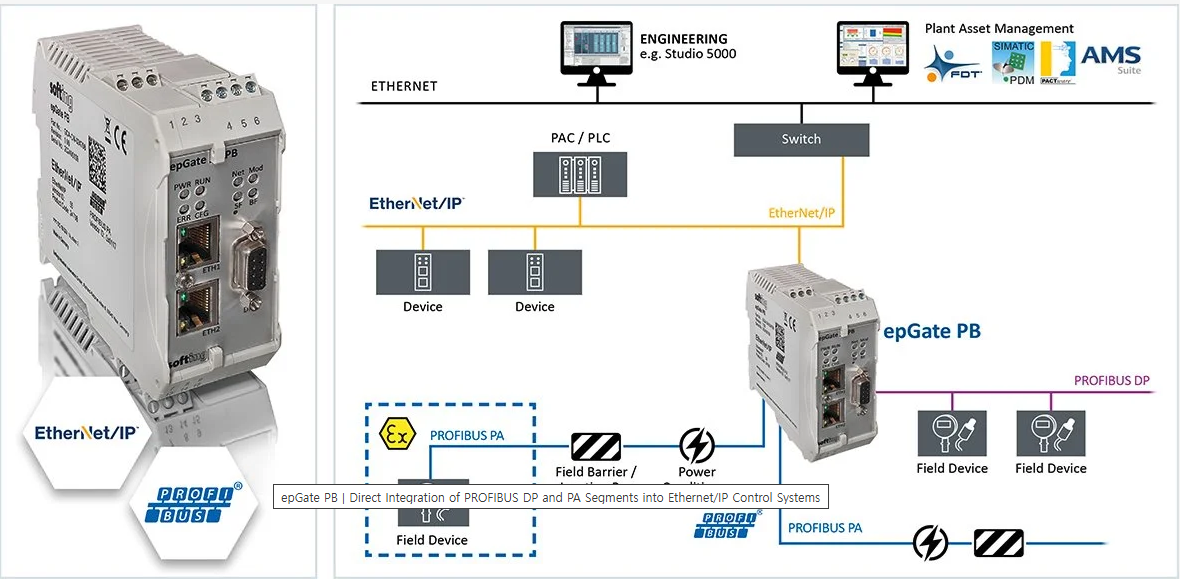

Ethernet/IP to PROFIBUS DP/PA Master Gateway / epGate PB

Direct Integration of PROFIBUS DP and PA Segments into Ethernet/IP Control Systems


With epGate PB it is possible to integrate up to 2 PROFIBUS PA segments and 1 PROFIBUS DP segment into Ethernet/IP systems. With epGate PB the engineering costs can be reduced since it re-uses existing power conditioners in technology upgrade projects. It enables configuration, parameterization and plant asset management using standard industry tools.


Key Component for Transition to State-of-the-Art Technology

  • Simple replacement of installed PROFIBUS DP/PA segment coupler
  • Re-use of existing PROFIBUS segments without requiring modification
  • Support of common control systems e.g. Emerson DetlaV or Rockwell Control Logix
  • Support of DLR for redundant communication in the ring with EtherNet/IP

Direct Connectivity to PROFIBUS Segments

  • Single access point to PROFIBUS DP and PROFIBUS PA segments from EtherNet/IP networks
  • Acting as EtherNet/IP device (adapter), PROFIBUS PA and PROFIBUS DP Master
  • Support of one PROFIBUS DP segment and up to two PROFIBUS PA segments
  • Support of up to 64 PROFIBUS devices

Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools

  • Supports major EtherNet/IP engineering tools such as Studio 5000 and AMS Device Manager
  • Included CommDTM allowing use in FDT/DTM frame applications
  • EDD-based device parametrization using Siemens Simatic PDM

Simple Integration Through Add-On Instructions

  • Data access of PLC program to PROFIBUS devices without requiring detailed PROFIBUS knowledge
  • Mapping between the two protocols generated by provided tools
  • Use of Add-On Instructions (AOI) containing detailed PROFIBUS data type definitions
  • Transparent communication overcoming protocol differences
  • Optimized for usage with Allen Bradley controllers

DATA SHEET

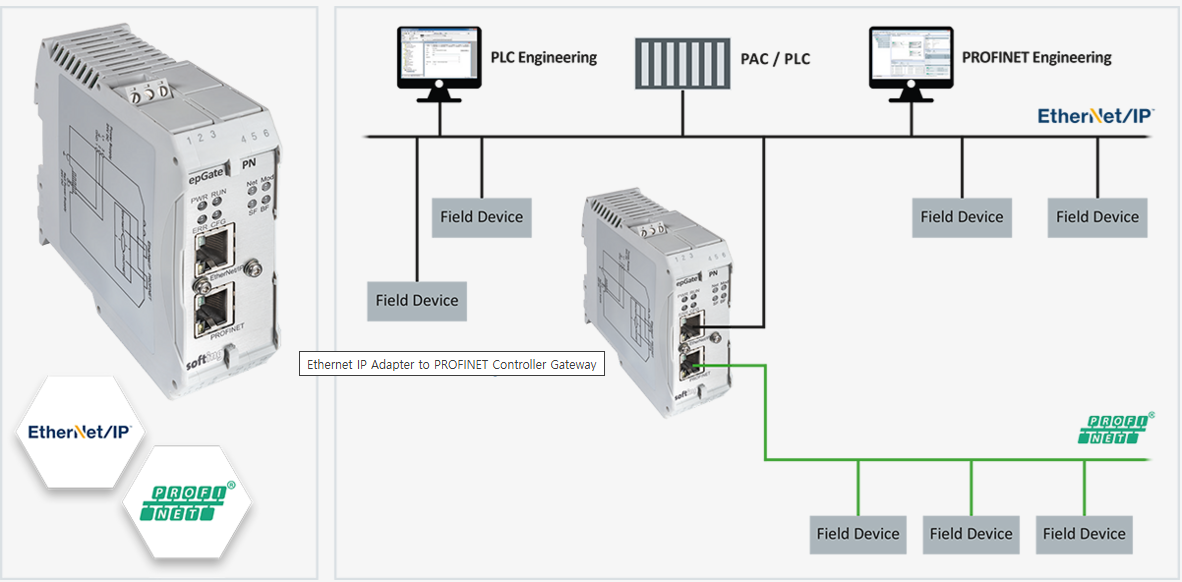

Ethernet IP Adapter to PROFINET Controller Gateway / epGate PN

Integration of PROFINET I/O Devices through mapping into Ethernet IP Control systems


The epGate PN implements a gateway between an EtherNet/IP scanner (e.g. a Rockwell PLC) and up to 32 PROFINET devices. While the gateway's upper RJ45 socket connects to the EtherNet/IP network as a so-called Adapter (slave), the gateway acts as a PROFINET controller (master) through its lower RJ45 socket. This allows for integration of PROFINET devices and subsystems into EtherNet/IP applications. The Communication Configuration Tool that comes with epGate PN assists in defining the PROFINET configuration and provides ready to use symbolic mapping information for the EtheNet/IP PLC's engineering software. This way the user is relieved from the error-prone task of defining data for both sides of the gateway individually.

OVERVIEW

Reliable Operation Across Networks Boundaries

  • Connection to the EtherNet/IP network via the so- called adapter (slave); (upper RJ45 socket)
  • PROFINET controller (Master) functionality (lower RJ45 socket)
  • Direct access from EtherNet/IP scanner in the PLC to PROFINET field devices
  • Access to machines with internal PROFINET network by deploying I-Device capabilities (Support of Siemens PLCs)
  • Transparent exchange of I/O data
  • EtherNet/IP side is informed about PROFINET faults and diagnostics
  • EtherNet/IP PLC can activate PROFINET outputs explicitely by a quality value
  • PROFINET outputs switch to safe state if connection to the PLC is lost

Simple Integration Through Add-On Instructions

  • Data access of PLC program to PROFINET devices without requiring detailed PROFINET knowledge
  • Mapping between the two protocols generated by provided tools
  • Use of Add-On Instructions (AOI) containing detailed PROFINET data type definitions
  • Transparent communication overcoming protocol differences

Including configuration tool and integrated web server

  • PC-based configuration software for online access to PROFINET Devices with ready to use symbolic mapping information for the EtheNet/IP PLC‘s engineering software
  • Built-In web server for monitoring of mapping as well as of exchanged data
DATA SHEET
PROFINET Configuration Video
IP Setting video
Ethernet/IP Configuration Video

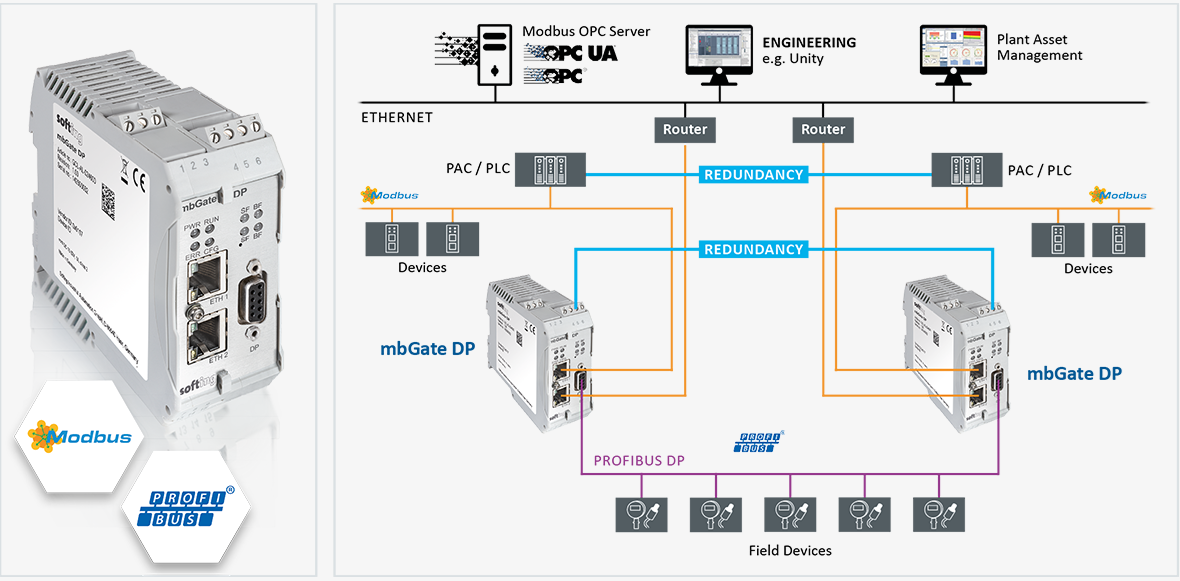

Modbus TCP server to PROFIBUS DP Master / mbGate DP

Simple connection of PROFIBUS DP Slave devices to Modbus control systems via internal I/O mapping


With mbGate DP it is possible to integrate one PROFIBUS DP segment into Modbus TCP control systems. It acts as Modbus TCP Server and PROFIBUS DP Master. With our gateways the engineering costs can be reduced since it re-uses existing PROFIBUS DP segment without the requiring modification. It enables simple configuration, parameterization and plant asset management using standard industry tools and is compatible with products of leading PLC Manufacturers.

OVERVIEW

Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools

  • Supports major Modbus engineering tools such as Schneider Unity Pro or Siemens TIA Portal
  • Included CommDTM allowing use in FDT/DTM frame applications
  • EDD-based device parametrization using Siemens Simatic PDM

Direct Connectivity to PROFIBUS Segments

  • Single access point to PROFIBUS DP segment from Modbus TCP networks
  • Acting as Modbus TCP Server and PROFIBUS DP Master
  • Support of one PROFIBUS DP segment
  • Support of up to 32 PROFIBUS devices

Key Component for Transition to State-of-the-Art Technology

  • Re-use of existing PROFIBUS DP segment without requiring modification
  • Easy integration into PLC programming software

MODBUS/TCP Redundancy

  • Supports the use of two redundant PLCs and two redundant gateways
  • Easily enabled via licensing
  • Full control of redundant operation mode via engineering and PLC
DATA SHEET

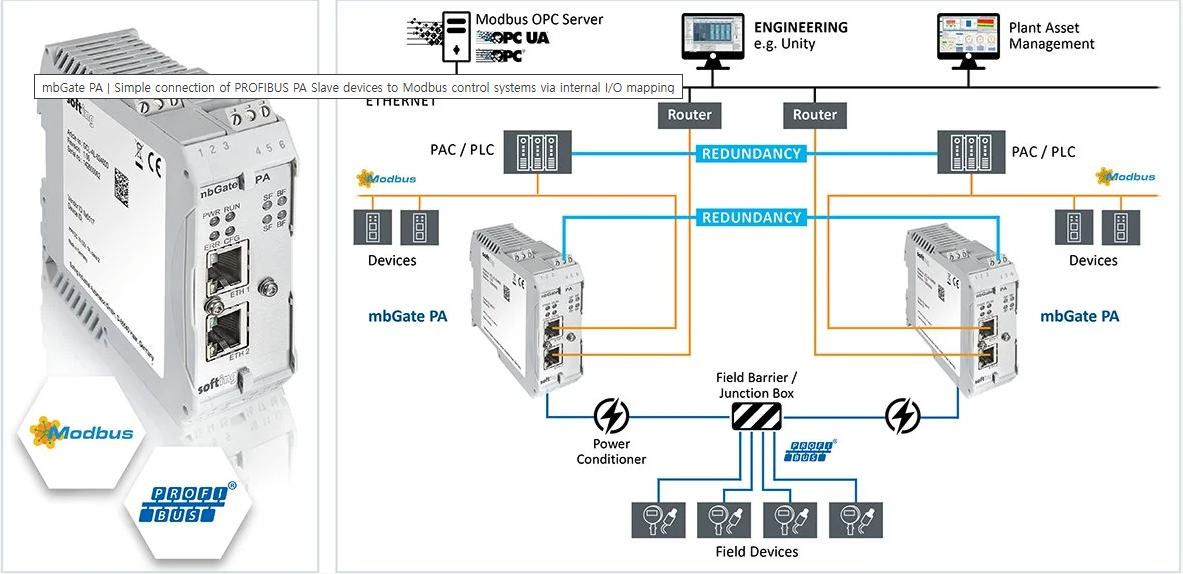

MODBUS TCP SERVER to PROFIBUS PA Master Gateway / mbGate PA

Simple connection of PROFIBUS PA Slave devices to Modbus control systems via internal I/O mapping


With mbGate PA it is possible to integrate up to 4 PROFIBUS PA segments into Modbus TCP control systems. It acts as Modbus TCP Server and PROFIBUS PA Master. With our gateways the engineering costs can be reduced since it re-uses existing power conditioners in technology upgrade projects. It enables configuration, parameterization and plant asset management using standard industry tools.


OVERVIEW

Key Component for Transition to State-of-the-Art Technology

  • Simple replacement of installed PROFIBUS DP/PA segment couplers
  • Re-use of existing PROFIBUS PA segments without requiring modification

Direct Connectivity to PROFIBUS Segments

  • Acting as Modbus Server and PROFIBUS PA Master
  • Connects up to 4 PROFIBUS PA Segments to Modbus TCP
  • Support of up to 64 PROFIBUS devices

Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools

  • Supports major Modbus engineering tools such as Schneider Unity Pro or Siemens TIA Portal
  • Included CommDTM allowing use in FDT/DTM frame applications
  • EDD-based device parametrization using Siemens Simatic PDM

MODBUS/TCP Redundancy

  • Supports the use of two redundant PLCs and two redundant gateways
  • Easily enabled via licensing
  • Full control of redundant operation mode via engineering and PLC

DATA SHEET
PROFIBUS Configuration Video
Modbus Configuration (Siemens TIA portal)
Modbus Configuration (Utility PRO)

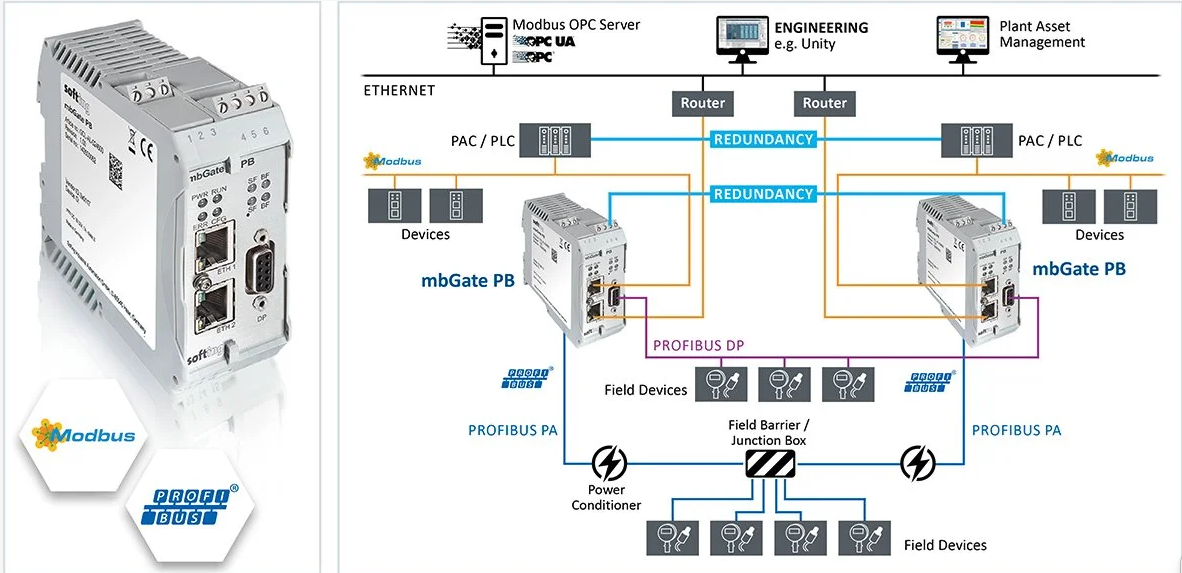

MODBUS TCP SERVER to PROFIBUS PA/DP Master Gateway / mbGate PB

Simple connection of PROFIBUS Slave Devices to Modbus Control Systems via Internal I/O Mapping


With mbGate PB it is possible to integrate up to 2 PROFIBUS PA segments and 1 PROFIBUS DP segment into Modbus TCP control systems. It acts as Modbus TCP Server and PROFIBUS Master. With our gateway the engineering costs can be reduced since it re-uses existing power conditioners in technology upgrade projects. It enables configuration, parameterization and plant asset management using standard industry tools.



Configuration of the PROFIBUS High Availability with 2 mbGates PB

OVERVIEW

Key Component for Transition to State-of-the-Art Technology

  • Simple replacement of installed PROFIBUS DP/PA segment couplers
  • Re-use of existing PROFIBUS segments without requiring modification

Direct Connectivity to PROFIBUS Segments

  • Single access point to PROFIBUS DP and PROFIBUS PA segments from Modbus TCP networks
  • Acting as Modbus TCP Server and PROFIBUS PA and PROFIBUS DP Master
  • Support of one PROFIBUS DP segment and up to two PROFIBUS PA segments
  • Support of up to 64 PROFIBUS devices

Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools

  • Supports major Modbus engineering tools such as Schneider Unity Pro or Siemens TIA Portal
  • Included CommDTM allowing use in FDT/DTM frame applications
  • EDD-based device parametrization using Siemens Simatic PDM

MODBUS/TCP Redundancy

  • Supports the use of two redundant PLCs and two redundant gateways
  • Easily enabled via licensing
  • Full control of redundant operation mode via engineering and PLC

DATA SHEET

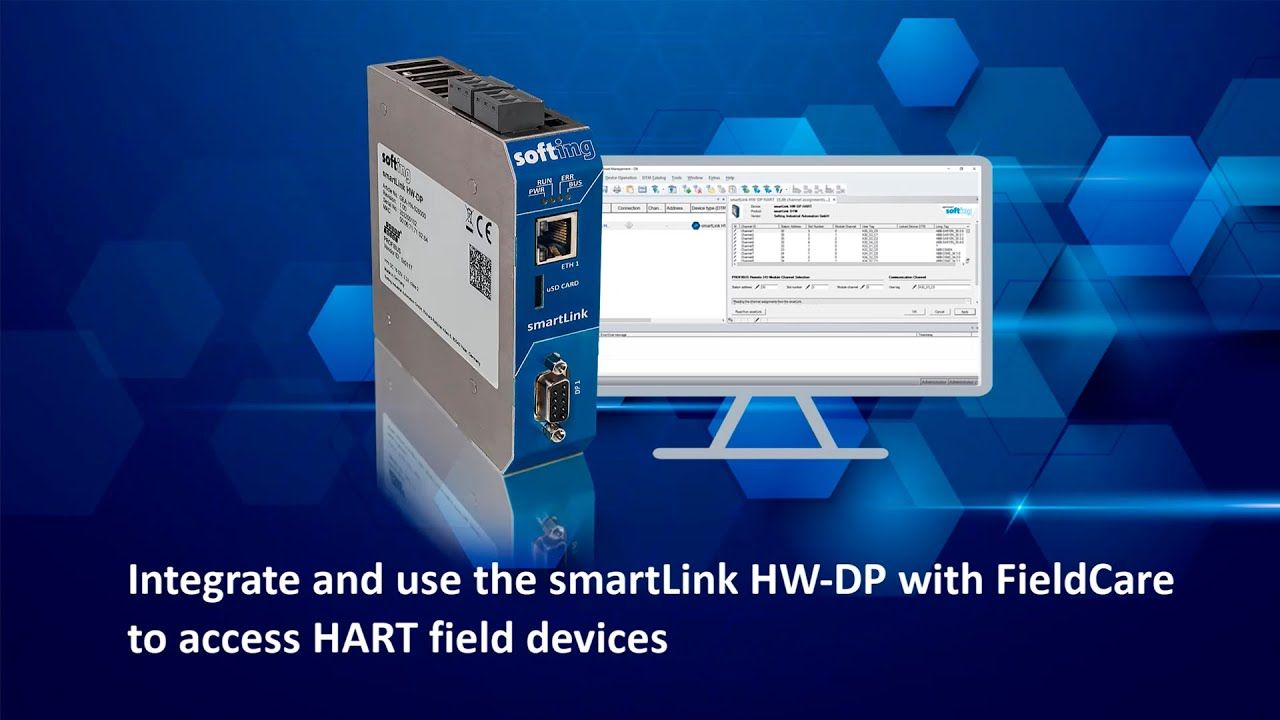

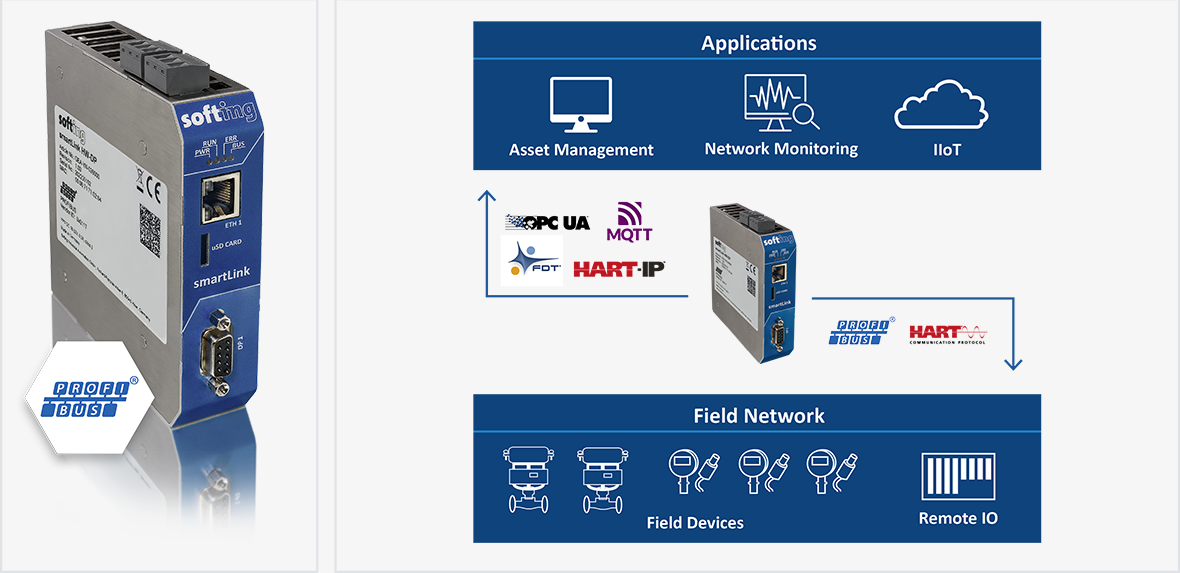

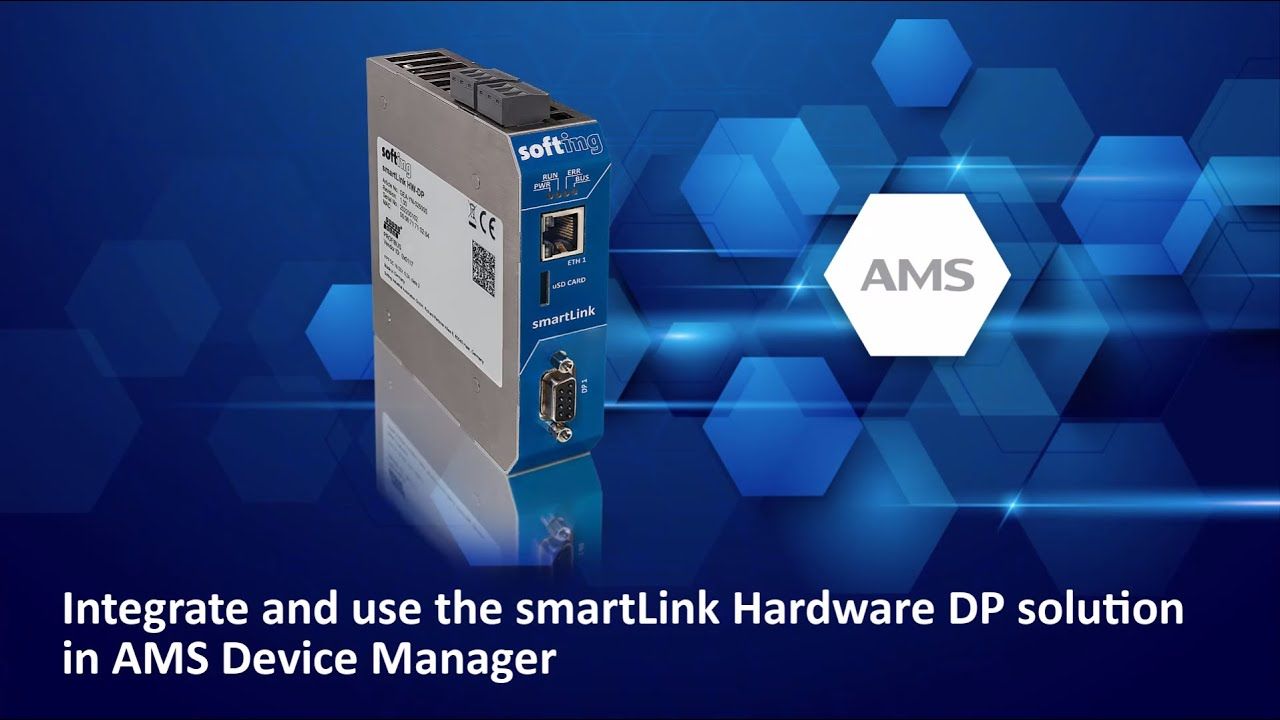

Asset Management Access Point for PROFIBUS DP networks / smartLink HW-DP

Connection of PROFIBUS and HART devices to HART IP, OPC UA, MQTT and FDT


smartLink HW-DP provides PLC independent access to PROFIBUS DP Networks. It enables Plant Asset Management for field devices using standard industry tools and allows using HART IP as a standardized format. smartLink HW-DP is a compact tool that can be integrated without interfering with the operation of existing installations. Thus, it enables Industry 4.0 connectivity for new and existing PROFIBUS DP networks.

OVERVIEW

Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools

  • Independent of configuration tools
  • Centralized and time-saving parameterization of PROFIBUS and HART field devices directly from the control room
  • Access from Plant Asset Management applications for field devices configuration based on FDT / DTM and EDDL standards (acyclic master)

Ethernet Access Point to PROFIBUS DP

  • Provides 2nd channel to access the field devices
  • Acts as PROFIBUS DP master class 2
  • Support of one PROFIBUS DP segment

Key Component for Transition to State-of-the-Art Technology

  • Re-use of existing PROFIBUS segments without requiring modification
  • Access to cyclic and acyclic data via HART-IP and OPC UA
DATA SHEET
더보기
동영상 재생
동영상 재생

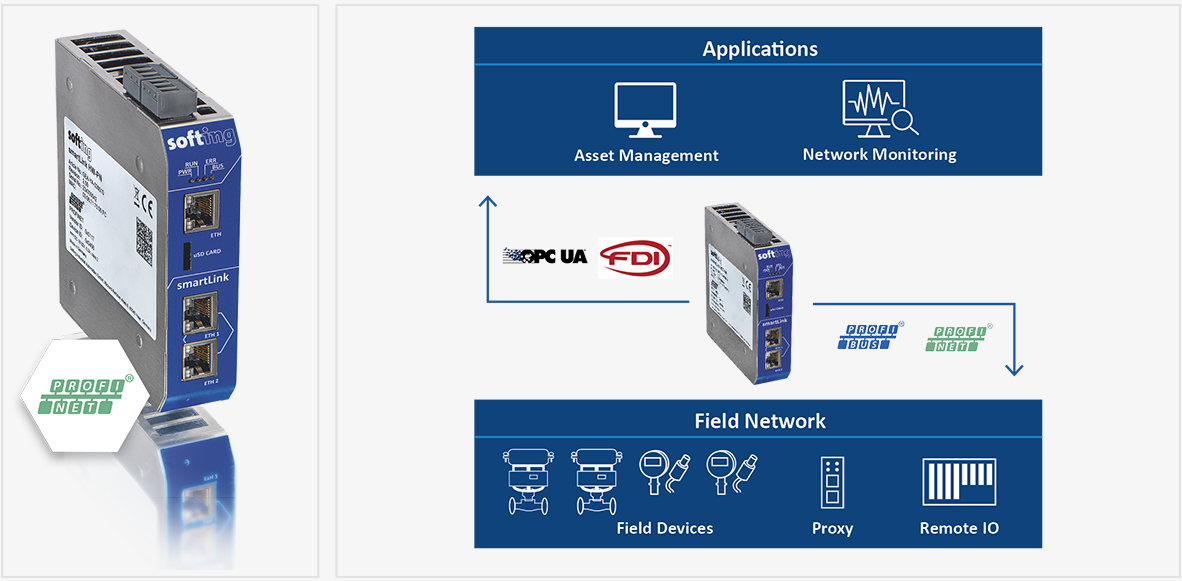

Asset Management Access Point for PROFINET networks / smartLink HW-PN

Manage PROFINET and PROFIBUS devices with standard Asset Management Tools


smartLink HW-PN provides controller independent access to PROFINET networks. It can be used with standard industry tools for asset management, device configuration and monitoring. smartLink HW-PN provides transparent access to connected PROFINET and PROFIBUS devices.

OVERVIEW

Plant Asset Management and Parameterization using Standard Industry Tools

  • Independent from PROFINET engineering tools
  • Centralized and time-saving asset management of PROFINET networks with PROFINET and PROFIBUS field devices directly from the control room
  • Access from Plant Asset Management applications for field devices based on the FDI standard

Ethernet Access Point to PROFINET networks

  • Provides 2nd channel to access the field devices
  • Acts as a PROFINET supervisor
  • Is part of one PROFINET network
  • Integrated 2-port switch for use in line network topologies

Key Component for Transition to State-of-the-Art Technology

  • Re-use of existing PROFINET networks without requiring modification
  • Access to acyclic data via FDI communication server (OPC UA)
DATA SHEET
더보기

Modbus TCP/FF HSE to FF H1 Gateway / FG-200

Direct FF H1 segment integration - Modbus TCP control systems or FF HSE asset management applications


With Softing’s FG-200, it is possible to integrate up to four FOUNDATION™ Fieldbus (FF) H1 links into control systems supporting Modbus TCP or into FF asset management applications. The FG-200 provides redundancy and is suitable for use in hazardous areas. This device features fast access to process data, while making use of FF advantages like reduced cabling, central field device parameterization, comprehensive diagnostics, or intrinsically safe device segments.



Videos
Creation of a Configuration
Access FF H1 Parameter
Adaptation of Modbus Mapping


OVERVIEW

Integration of FF-H1 devices into Modbus TCP control systems

  • Parallel support of up to 4 FF-H1 channels, each for max. 16 field devices
  • Fast access to process data
  • Suitable for use in hazardous areas
  • FF Configuration Tool for easy commissioning

Access to FF H1 devices from plant asset management applications

  • Visitor mode for avoiding interference with network behavior
  • FF HSE interface for EDD based applications like Emerson’s AMS Device Manager (< V14.5 or >= V15)
  • DTM for FDT applications like PACTware, Yokogawa FieldMate, Honeywell FDM, E+H FieldCare

High availability

  • Redundancy link enabling device redundancy (D-3 according to FF-593)
  • Automatic mirroring of configuration data
  • Very fast redundancy switchover
DATA SHEET

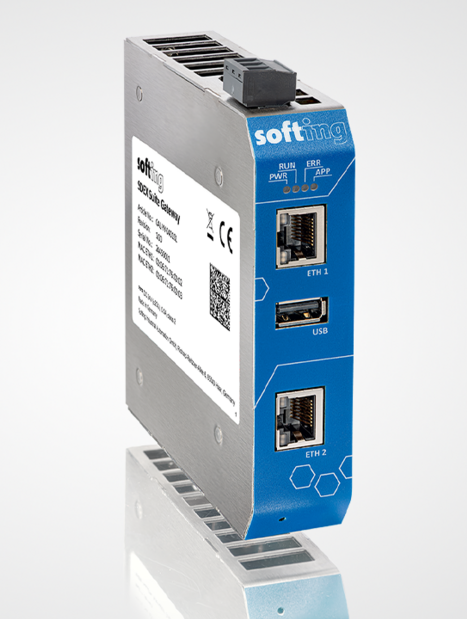

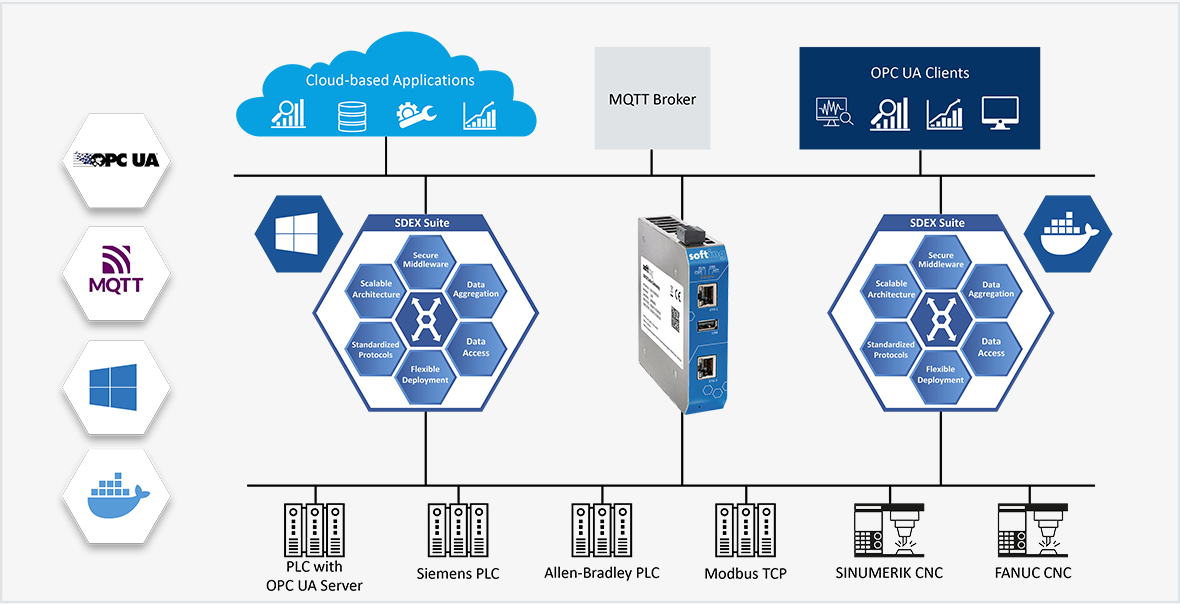

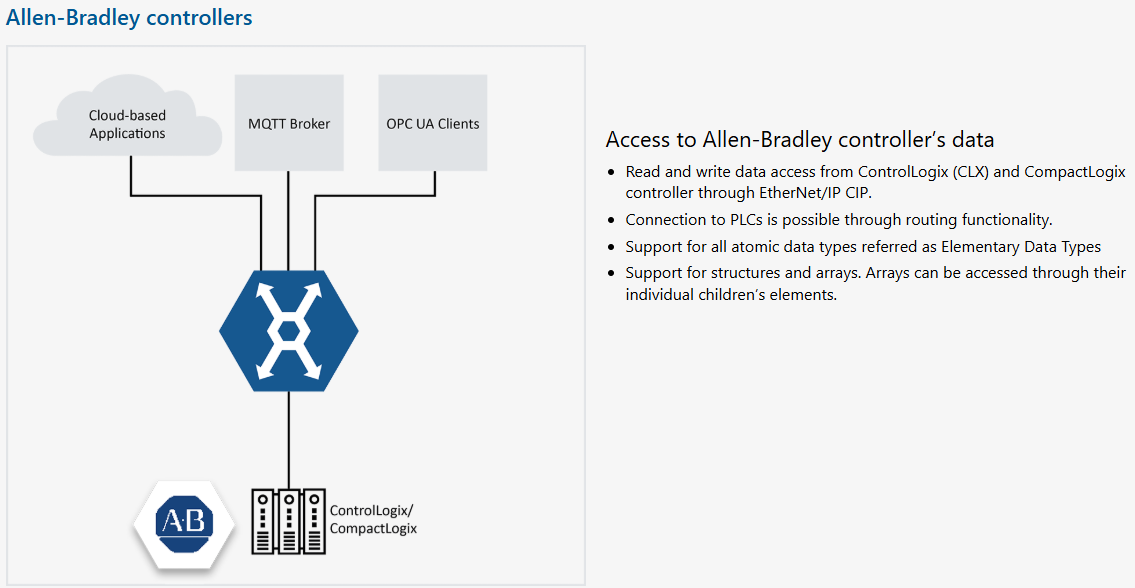

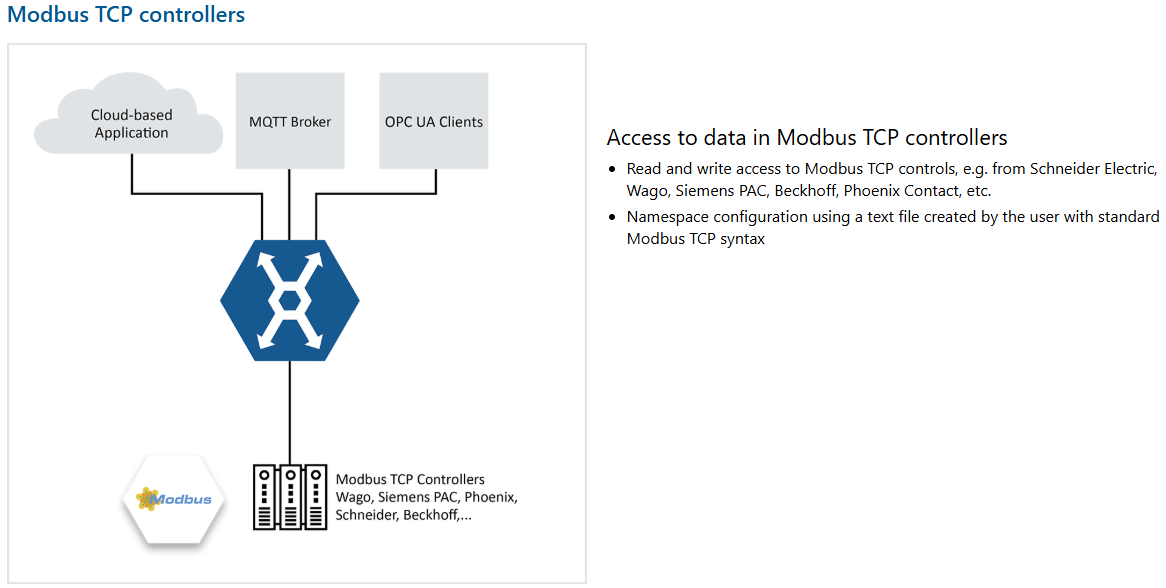

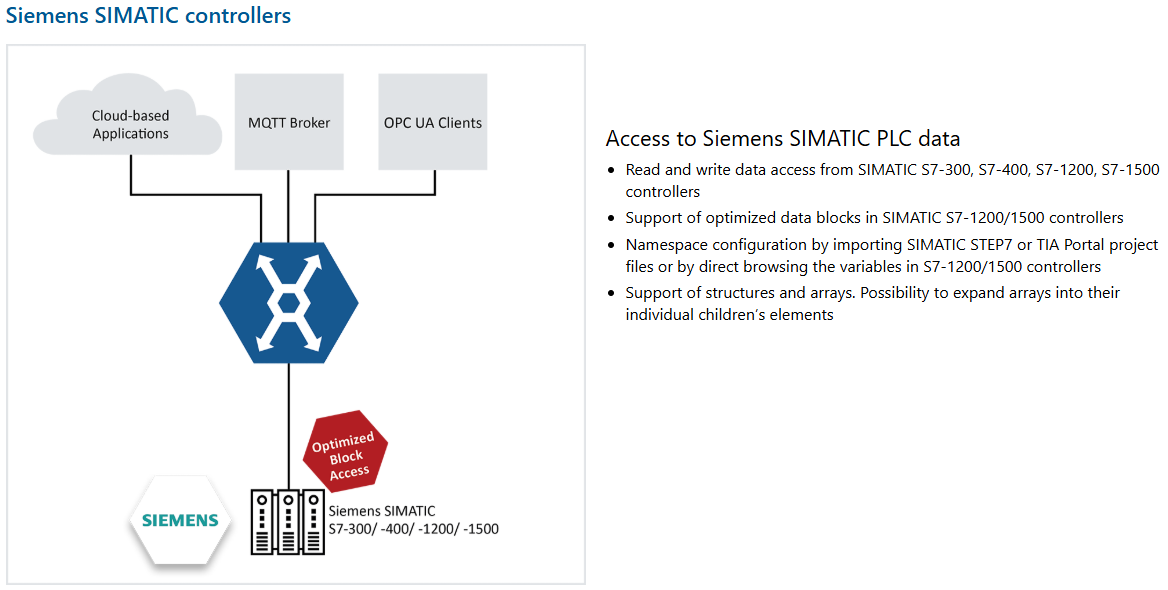

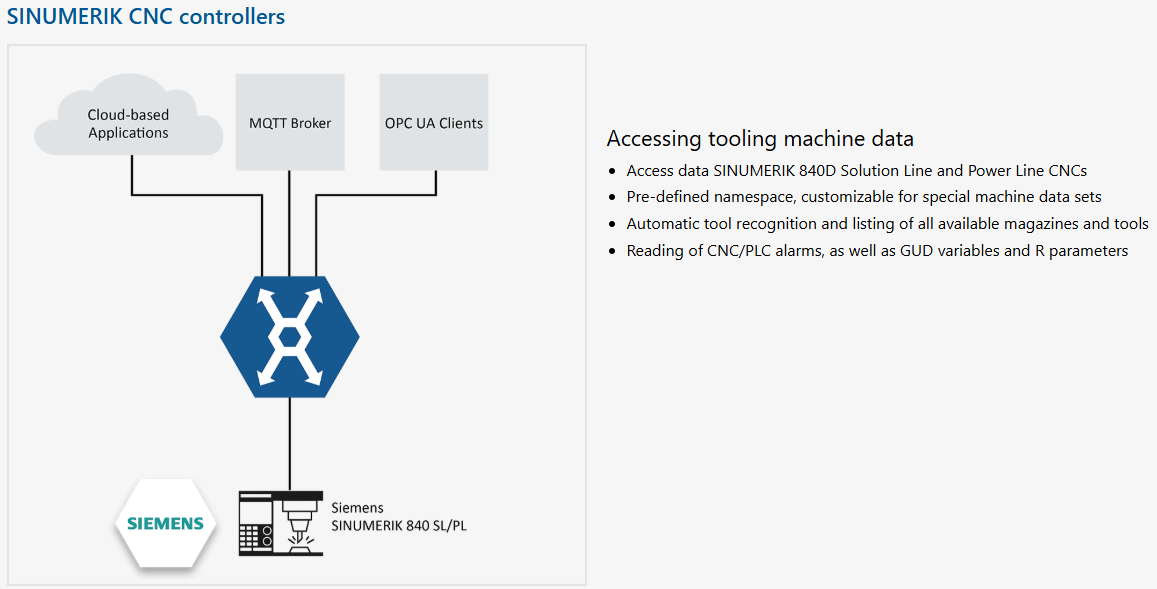

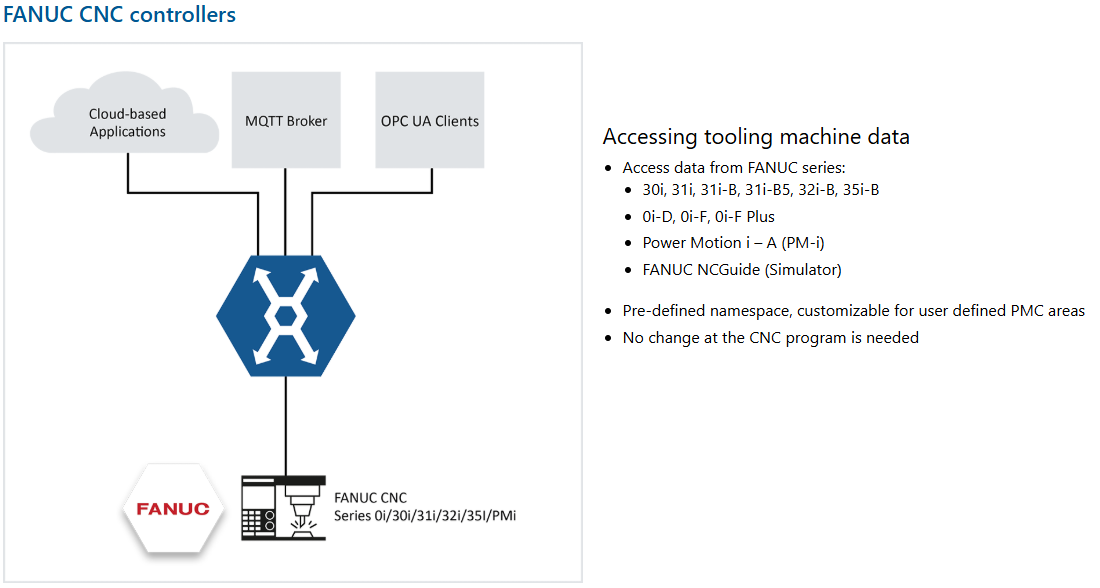

Simplified Industrial Data Access / SDEX Suite

Secure Industrial Connectivity Across All Platforms


SDEX Suite connects PLCs and CNCs securely via OPC UA and MQTT, enabling standardized, scalable data integration across Windows, Docker, and industrial hardware. It simplifies machine connectivity, enhances cybersecurity, and accelerates industrial digitalization.













OVERVIEW

Faster Integration and Deployment

  • Plug-and-play connectivity to leading PLCs and CNCs
  • Preconfigured OPC UA and MQTT communication paths
  • Minimal engineering effort, no PLC program changes
  • Shorter time-to-market for IIoT and analytics projects

Enhanced Cybersecurity

  • Secure IT/OT separation via middleware architecture
  • TLS/SSL encryption, authentication, and RBAC
  • Whitelisting, blacklisting, and DoS protection
  • Developed under IEC 62443-certified processes

Multi-Platform Flexibility

  • Unified GUI and functions across Windows, Docker, and hardware
  • Deploy locally, virtually, or on industrial gateways
  • Future-proof updates and unified licensing
  • Scales from single machines to multi-site deployments



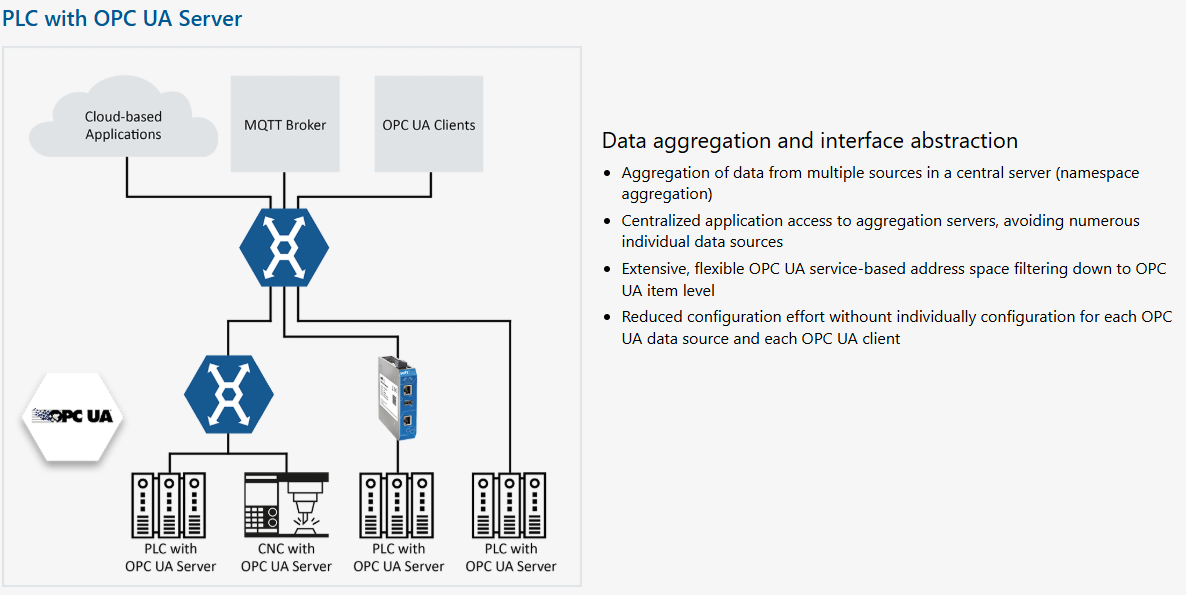

Unified and Scalable Data Access

  • Aggregation of data from PLC and CNC systems from different vendors
  • Standardized OPC UA address spaces (PADIM, Weihenstephan)
  • Compatibility with MES, ERP, SCADA, and cloud platforms
  • Improved data availability and analytic consistency

Optional Industrial Gateway for Secure OT/IT Integration

  • Physically separated network interfaces for OT and IT networks as an additional security layer
  • Deployment close to the machine or inside control cabinets without reliance on existing PCs or servers
  • Industrial-grade hardware for harsh environments and continuous operation
  • Preconfigured, dedicated SDEX Suite runtime for simplified commissioning and reduced operational risk



DATA SHEET

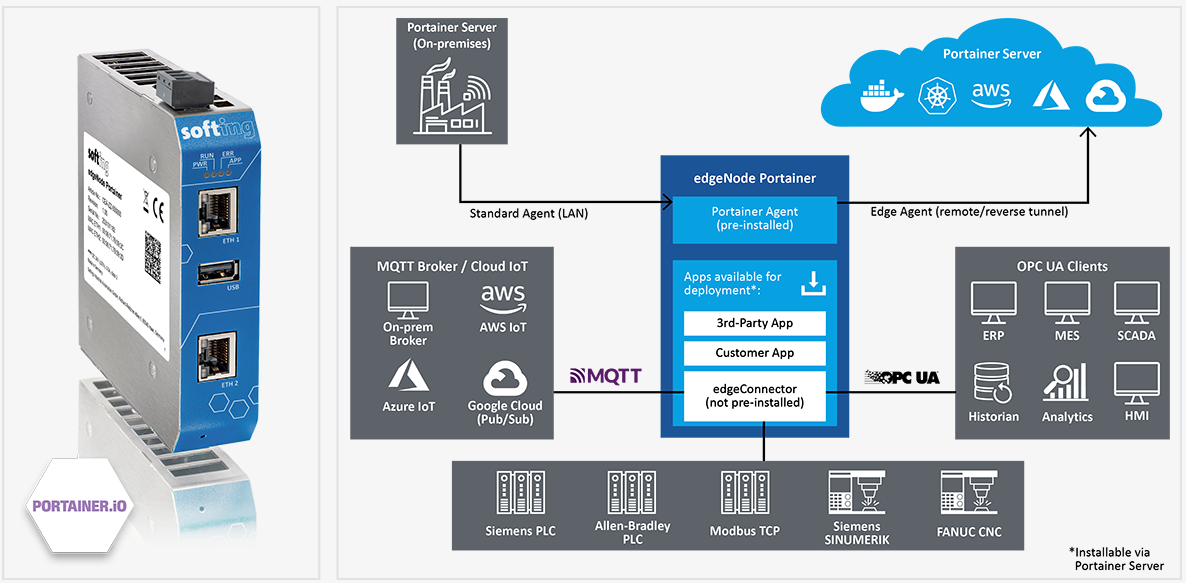

Industrial-Grade Edge Device with Portainer / edgeNode Portainer

Flexible industrial edge device with docker apps support through Portainer


edgeNode Portainer is an industrial-grade edge device that cuts maintenance costs and boosts cybersecurity. With Portainer control, it enables fast updates, simple version management, and secure PLC/CNC connectivity through Softing’s edgeConnector for seamless OT/IT integration.



OVERVIEW

Centralized Application Management

  • Control all devices from a centralized Portainer Server instance
  • Deploy, update, and roll back applications with ease
  • Ensure consistent versions across your installed base

Flexibility and Openness

  • Run Softing’s edgeConnector or any Docker-based app
  • Support for both in-house and third-party solutions
  • No vendor lock-in, limited only by hardware resources

Rugged and Reliable Design

  • Industrial-grade DIN-rail form factor (120 × 28 × 110 mm)
  • Zero-maintenance hardware with no moving parts
  • Operates reliably in extended temperature environments

  • Strengthened Cybersecurity

  • Quickly deploy updates and security patches fleet-wide
  • Improve visibility of deployed versions across devices
  • Developed under Softing’s IEC 62443–based secure development process

DATA SHEET

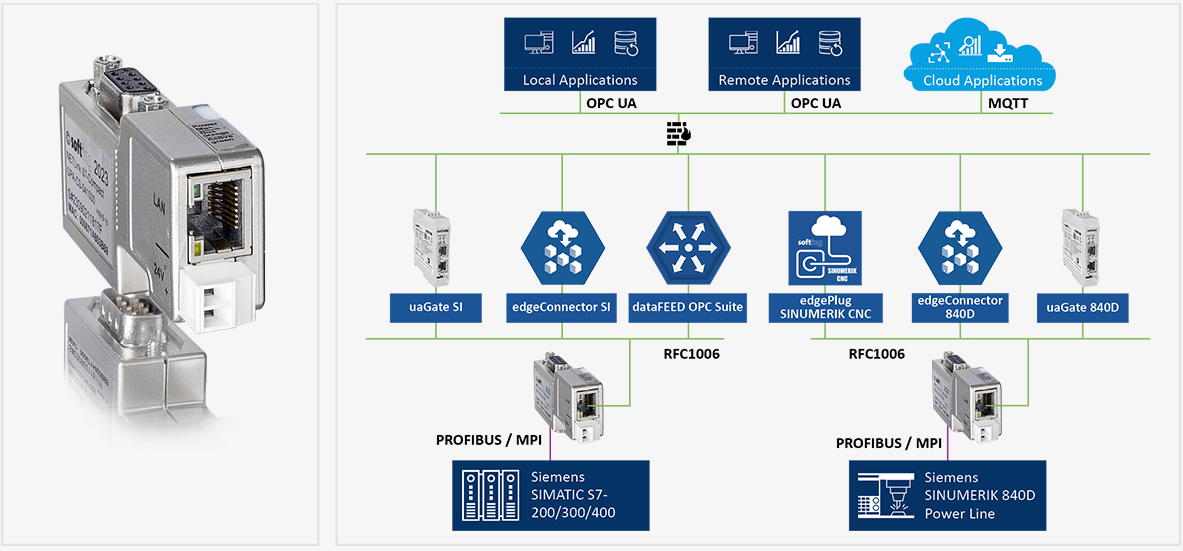

Compact PROFIBUS/MPI Adapter for Ethernet Connection of SIMATIC S7 Controllers / NETLink S7-Compact

Ethernet gateway for connecting higher-level applications for programming, diagnostics, and communication in IP networks


NETLink S7-Compact enables simple and fast integration of SIMATIC S7-200/300/400 controllers into Ethernet networks. This enables programming, configuration, and SCADA applications such as STEP7, TIA Portal, WinCC or OPC Servers to access up to 32 automation devices robustly and cost-effectively in parallel. The adapter can be plugged directly into the MPI connector and replaces expensive Communication Processors. The looped-through programming device socket allows retroactive piggyback mounting.

For configuration purposes, NETLink S7-Compact can be integrated as a programming device in the familiar STEP7 or TIA Portal development tools. In addition, a web interface is available for basic settings, e.g., the PROFIBUS subscriber address or the IP address. SIMATIC S7-200/300/400 controllers without Ethernet connection can also be connected to SIMATIC S7-1200/-1500 controllers with Ethernet connection via the adapter. NETLink S7-Compact can be supplied with power directly via the SIMATIC S7 controller or via the 24VDC connection.



OVERVIEW

Integration of S7-200, S7-300 and S7-400 into 10/100 Mbit Ethernet Networks

  • Direct communication with one or several controllers in any kind of TCP network structure
  • Support of up to 16 simultaneous connections
  • Use of standard TCP/IP for communication within plant or company networks and with the Internet
  • Expansion of participants using MPI or PROFIBUS via pass-through PG port
  • Interference-free integration into existing control systems
  • Power supply directly from controller or via external power supply
  • Cost-effective solution alternative

Programming Adapter Supporting all Relevant S7 Engineering Tools

  • Interface for programming controllers via Ethernet
  • Compatibility with STEP7, TIA-Portal, WinCC and WinCC flexible
  • Display and configuration of the adapter in STEP7 or TIA portal

Application Integration through RFC1006 and OPC UA

  • Connection to HMI station and PLC directly via RFC1006 Ethernet protocol
  • Support of OPC and OPC UA by using dataFEED OPC Suite for integration into higher-level systems, e.g. for production management

DATA SHEET
