Indicators and Displays
Moore Industries Indicators and Displays take a process input signal from a temperature, pressure, level, or flow transmitter loop and provide real-time process status in rugged and hazardous field environments.
MODEL | DESCRIPTION | INPUT | OUTPUT | POWER | FEATURE | ||
|---|---|---|---|---|---|---|---|

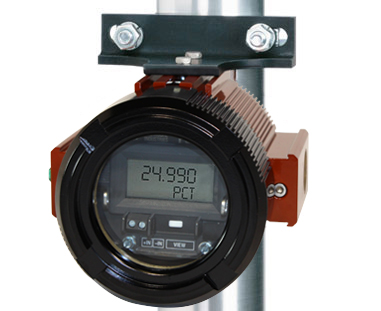

 | PSD | PC-Programmable Loop Display | 4-20mA | Programmable any EGU | 2.3VLP Loop Powered | DATA SHEET | |

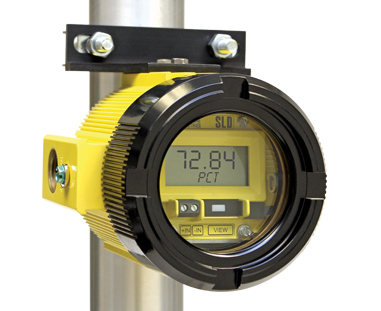

 | SLD | Functional Safety PC-Programmable Loop Display | 4-20mA | Programmable any EGU | Bus Powered | SIL3 (It is not SIL3 assessed to be used as part of the safety function.) | DATA SHEET |

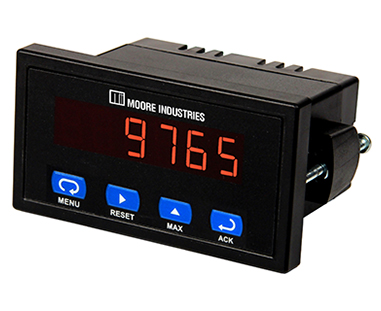

 | 330R2 | 330R2 1/8 DIN Process and Temperature Panel Meter & Alarm | 0-20mA, 4-20mA, ±20mA, 0-5V, 1-5V, 0-10V, ±10V, TC & RTD | 2 Alarm Outputs, Analog Output | HI : 85-265VAC or 90-265VDC LO: 12-24VAC or 12-36VDC | DATA SHEET | |

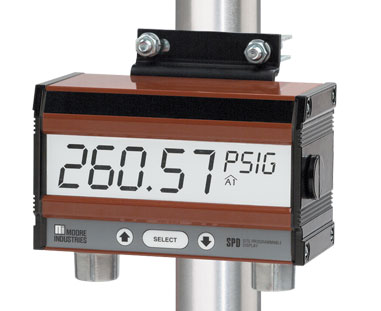

 | SPD | PC-Programmable Field-Mount Loop Display (Type 4X, IP66) | 4-20mA | Programmable any EGUr | 2.3VLP Loop Powered | TYPE 4X, IP66 | DATA SHEET |
