EEHA 교육을 이수하고 오랜경험을 쌓은 전문기술인이 최적의 모델을 선정하여 드립니다
EEHA 교육을 이수하고 오랜경험을 쌓은 전문기술인이 최적의 모델을 선정하여 드립니다

Analog Input

MODEL
DESCRIPTIONS
CONNECTION DIAGRAM
D5011S (1ch)

D5011D (2ch)


DATA SHEET DOWNLOAD		I.S. SIL3 2-Wire HART® Transmitter Power Supply

  • SIL 3 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • 4-20 mA Passive Input, Source Output
  • HART® compatible
  • Input and Output short circuit proof
  • High Accuracy
  • Three port isolation, Input/Output/Supply

  • High Density, two channels per unit (5011D)



D5014S (1ch)
D5014D (2ch)

DATA SHEET DOWNLOAD		I.S. SIL3 2/4-Wire HART® Transmitter Power Supply

  • SIL 3 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • 4-20 mA Active-Passive Input, Source-Sink Output
  • HART® compatible
  • Input and Output short circuit proof
  • In-field programmability by DIP Switch
  • High Accuracy
  • Three port isolation, Input/Output/Supply


  • High Density, two channels per unit (5014D)

D5015SK (1ch)

DATA SHEET DOWNLOAD

I.S. SIL2 2/4-Wire HART® Transmitter Power Supply


  • SIL 2 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • 4-20 mA Active-Passive Input, Source-Sink Output
  • HART® compatible
  • Input and Output short circuit proof
  • High Accuracy
  • Three port isolation, Input/Output/Supply


D5015SS (1ch)

DATA SHEET DOWNLOAD		I.S. SIL2 2/4-Wire HART® Transmitter Power Supply

  • SIL 2 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • 4-20 mA Active-Passive Input, Source Output
  • HART® compatible
  • Input and Output short circuit proof
  • High Accuracy
  • Three port isolation, Input/Output/Supply


D5016SK (1ch)
D5016SS (1ch)

DATA SHEET DOWNLOAD


I.S. SIL3 2-Wire Active HART® Tx Current Repeater

  • SIL 3 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • 4-20 mA Source-Sink Output
  • HART® compatible
  • High Accuracy
  • Three port isolation, Input/Output/Supply

D5016DK (2ch)
D5016DS (2ch)

DATA SHEET DOWNLOAD		I.S. SIL3 2-Wire Active HART® Tx Current Repeater

  • SIL 3 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • 4-20 mA Source-Sink Output
  • HART® compatible
  • High Accuracy
  • Three port isolation, Input/Output/Supply
  • High Density, two channels per unit


D5212Q (4ch)

DATA SHEET DOWNLOAD		I.S. SIL2 2/4-Wire Transmitter Power Supply

  • SIL 2 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • 0/4-20 mA Active-Passive Input, Source Output
  • Duplication/inversion/scaling output
  • Input operations (sum, dif, max, min) available
  • Input and Output short circuit proof
  • Out of range fault detection
  • Alarm output with user-settable trip points
  • Modbus RTU RS-485 for monitor & configuration
  • Fully programmable operating parameters
  • High Accuracy, µP controlled A/D converter
  • Three port isolation, Input / Output / Supply
  • High Density, four channels per unit

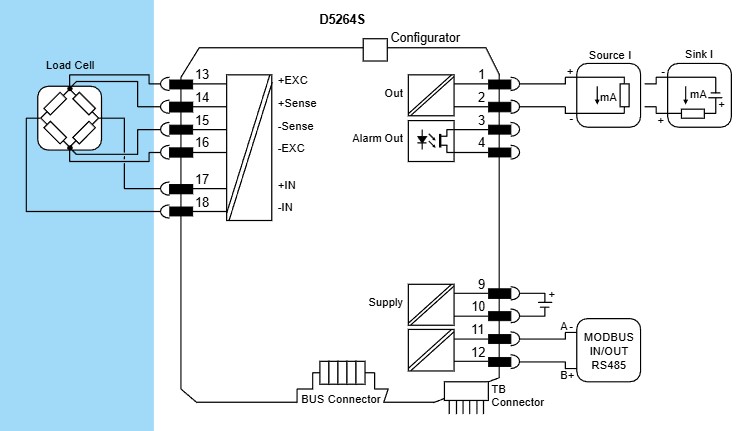

D5264S (1ch)

DATA SHEET DOWNLOAD

I.S. SIL2 2/4-Wire Transmitter Trip Amplifier


  • SIL 2 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • ±12 V Voltage Input
  • 0/4-20 mA Active-Passive Input, Source-Sink Output
  • Input and Output short circuit proof
  • Modbus RTU RS-485 for monitor & configuration
  • Out-of-range fault detection
  • Optional alarm acknowledgement input
  • Fully programmable operating parameters
  • High Accuracy, μP controlled A/D converter
  • Three port isolation, Input/Output/Supply


        SIL 2, 3 / SC 3

        Input from Zone 0 / Division 1

  • Installation in Zone 2 / Division 2
  • Loop disconnection to ease maintenance operations
  • Mechanical polarization key to prevent destructive mismatches
  • 4-20 mA 2-wire Active-Passive Input
  • HART® compatible
  • Out-of-range fault according to IEC 60947-5-6 NAMUR NE 43
  • Input and Output short circuit proof
  • High Accuracy
  • Three port isolation, Input/Output/Supply
X1-IS-AI-01-S
DATA SHEET DOWNLOAD


X1-IS-AI-02-S
DATA SHEET DOWNLOAD		X1-IS-AI-01-S /  I.S. SIL3  2-Wire Passive/Active HART® Tx Current Repeater

SIL 3 / SC 3





X1-IS-AI-02-S / I.S. SIL2   2-Wire Passive/Active HART® Tx Current Repeater
SIL 2 / SC 3

Analog Output

MODEL
DESCRIPTION
CONNECTION DIAGRAM
D5020S (1ch)
D5020D (2ch)

DATA SHEET DOWNLOAD		I.S. SIL2 HART® Isolating Driver

  • SIL 2 / SC 3
  • Output to Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • 4-20 mA Input, Output Signal
  • HART® compatible
  • Line & Load short/open circuit detection
  • Field fault mirroring to the PLC AO
  • In-field programmability by DIP Switch
  • High Accuracy
  • Three port isolation, Input/Output/Supply


  • High Density, two channels per unit (D5020D)

  • Input from Zone 0 / Division 1
  • Installation in Zone 2 / Division 2
  • Loop disconnection to ease maintenance operations
  • Mechanical polarization key to prevent destructive mismatches
  • HART® compatible
  • Line & Load short/open circuit programmable diagnostics
  • Out-of-range fault with programmable thresholds
  • Field fault mirroring to the DCS/PLC IO Card
  • High Accuracy
  • Three port isolation, Input/Output/Supply

X1-IS-AO-01-S
DATA SHEET DOWNLOAD		        I.S. SIL3 HART® Isolating Driver

        SIL 3 / SC 3



X1-IS-AO-02-S
DATA SHEET DOWNLOAD		        I.S. SIL2 HART® Isolating Driver

        SIL 2 / SC 3




Digital Input

MODELDESCRIPTIONCONNECTION DIAGRAM

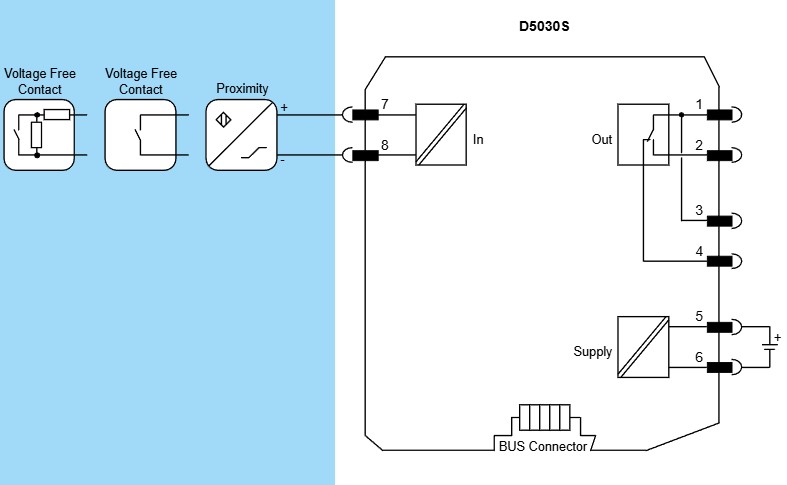

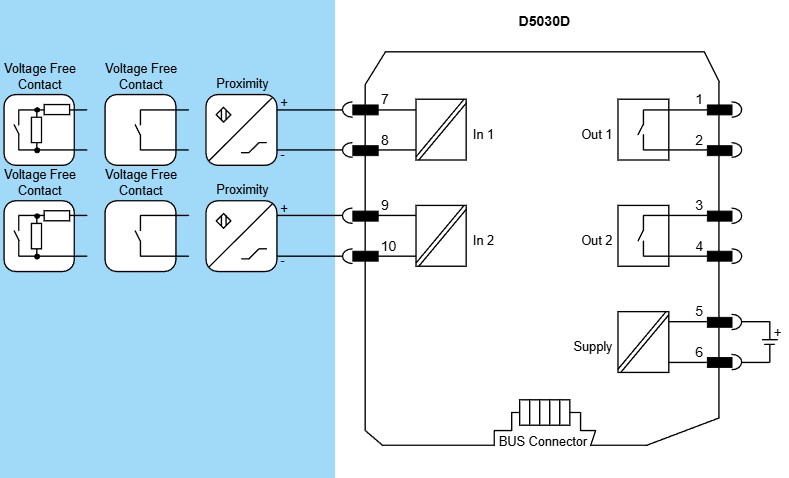

D5030S (1ch)
D5030D (2ch)

DATA SHEET DOWNLOAD		I.S. SIL3 Switch/Proximity Relay-Out Repeater

  • SIL 3 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • 2 fully independent channels
  • High voltage/current rating relay output
  • Field open and short circuit detection
  • In-field programmability by DIP Switch
  • Three port isolation, Input/Output/Supply


      High Density, two channels per unit (D5030D)

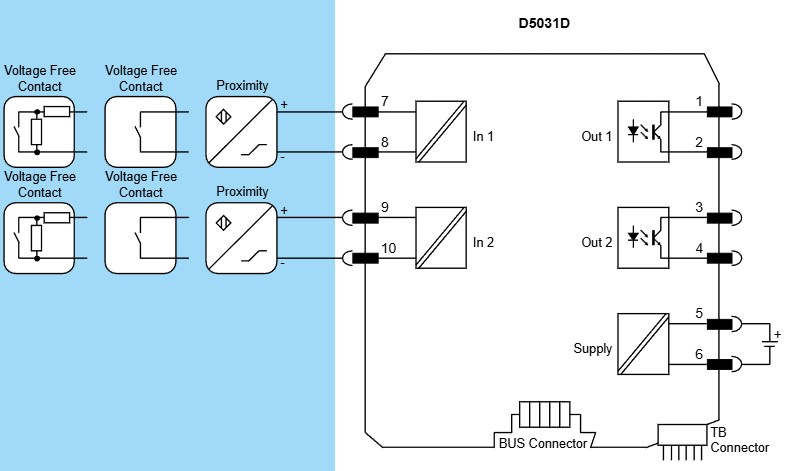

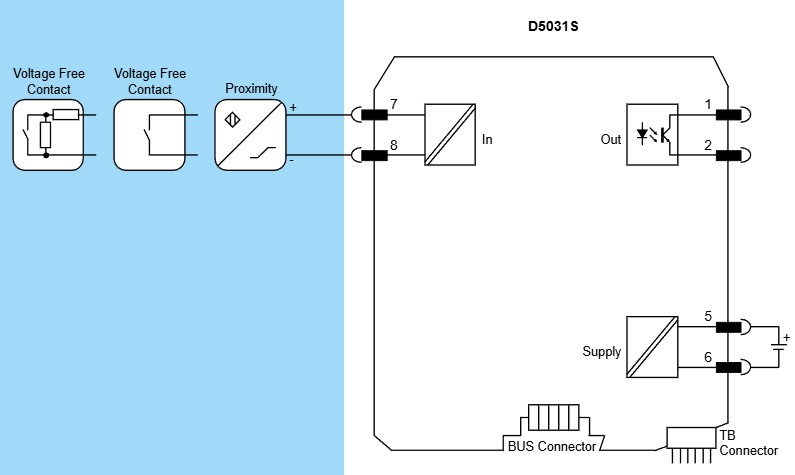

D5031S (1ch)
D5031D (2ch)

DATA SHEET DOWNLOAD

I.S. SIL3 Switch/Proximity Transistor-Out Repeater


  • SIL 3 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • High frequency transistor output
  • Field open and short circuit detection
  • In-field programmability by DIP Switch
  • Three port isolation, Input/Output/Supply

  • High Density, two channels per unit (D5031D)

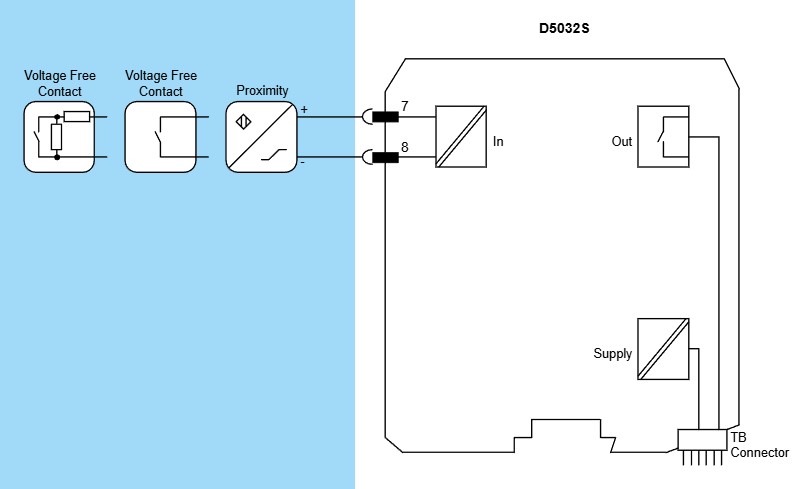

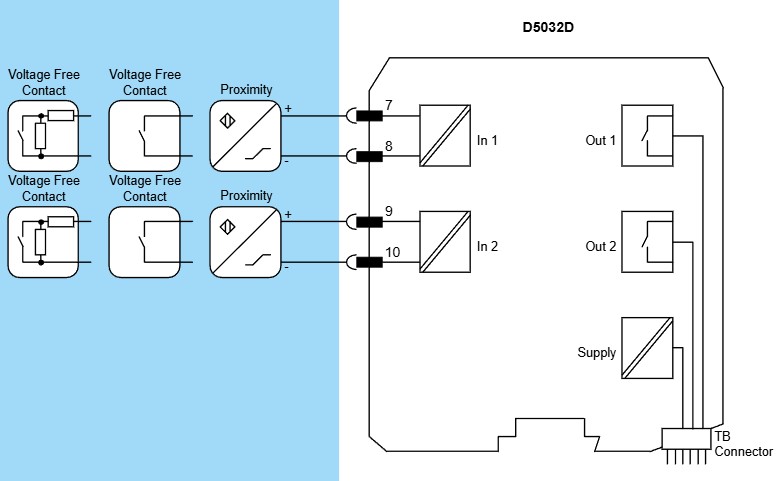

D5032S (1ch)
D5032D (2ch)

DATA SHEET DOWNLOAD

I.S. SIL3 Switch/Proximity Relay-Out Repeater


  • SIL 3 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • 2 fully independent channels
  • Field open and short circuit detection
  • In-field programmability by DIP Switch
  • Three port isolation, Input/Output/Supply

  • High Density, two channels per unit (D5032D)

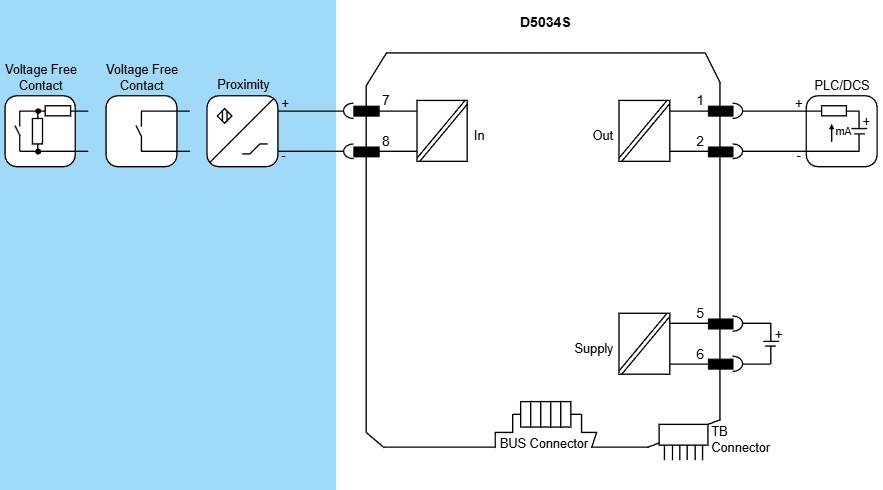

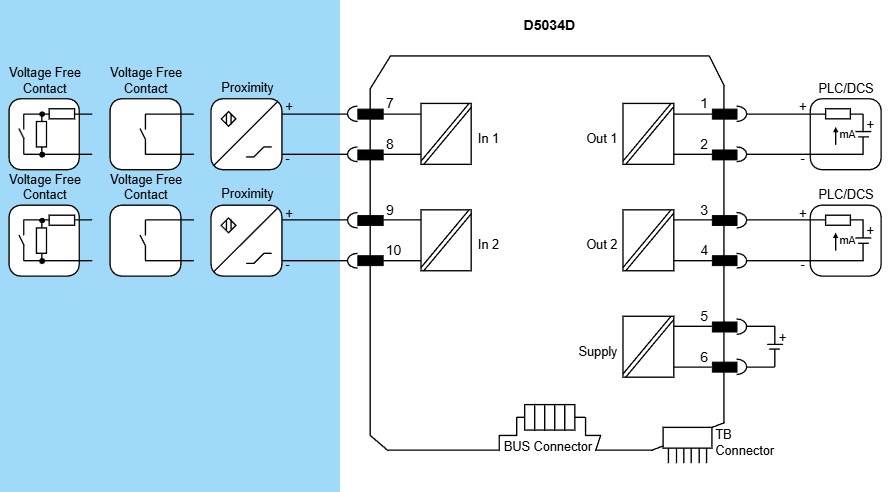

D5034S (1ch)
D5034D (2ch)

DATA SHEET DOWNLOAD

I.S. SIL3 Line-Fault Transp. Switch/Prox. Repeater


  • SIL 3/ SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • 2 fully independent channels
  • Field fault mirroring to PLC NAMUR DI
  • High Accuracy
  • Three port isolation, Input/Output/Supply

  • High Density, two channels per unit (D5034D)

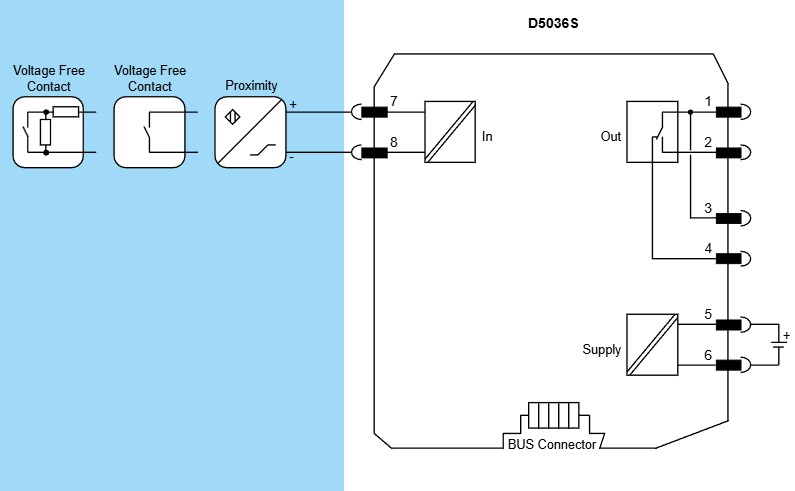

D5036S (1ch)
D5036D (2ch)

DATA SHEET DOWNLOAD		I.S. SIL2 Switch/Proximity Relay-Out Repeater

  • SIL 2 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • High voltage/current rating relay output
  • Field open and short circuit detection
  • In-field programmability by DIP Switch
  • Three port isolation, Input/Output/Supply

  • High Density, two channels per unit (D5036D)

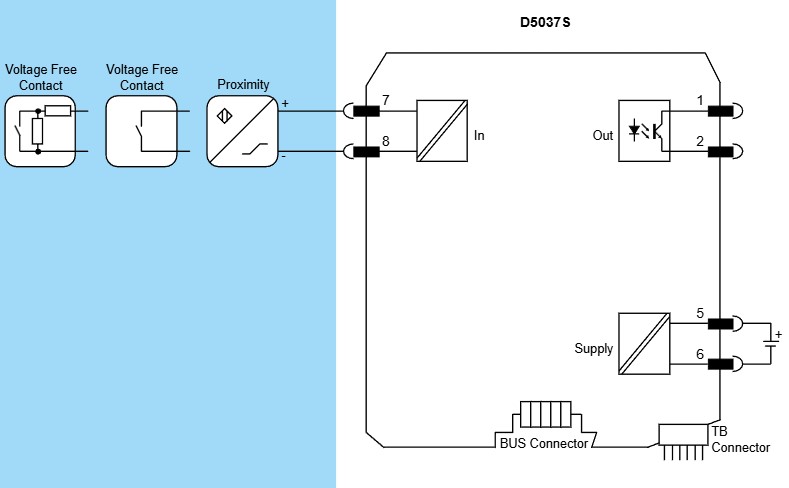

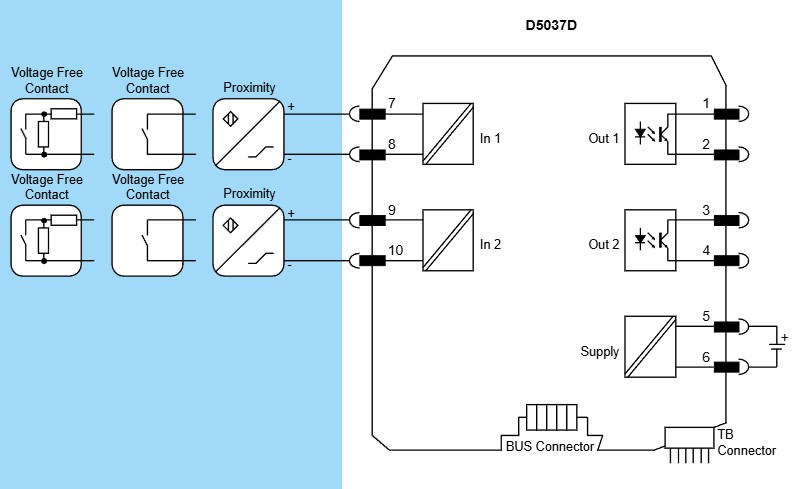

D5037S (1ch)
D5037D (2ch)

DATA SHEET DOWNLOAD		I.S. SIL2 Switch/Proximity Transistor-Out Repeater

  • SIL 2 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • High frequency transistor output
  • Field open and short circuit detection
  • In-field programmability by DIP Switch
  • Three port isolation, Input/Output/Supply

  • High Density, two channels per unit (5037D)

DATA SHEET DOWNLOAD

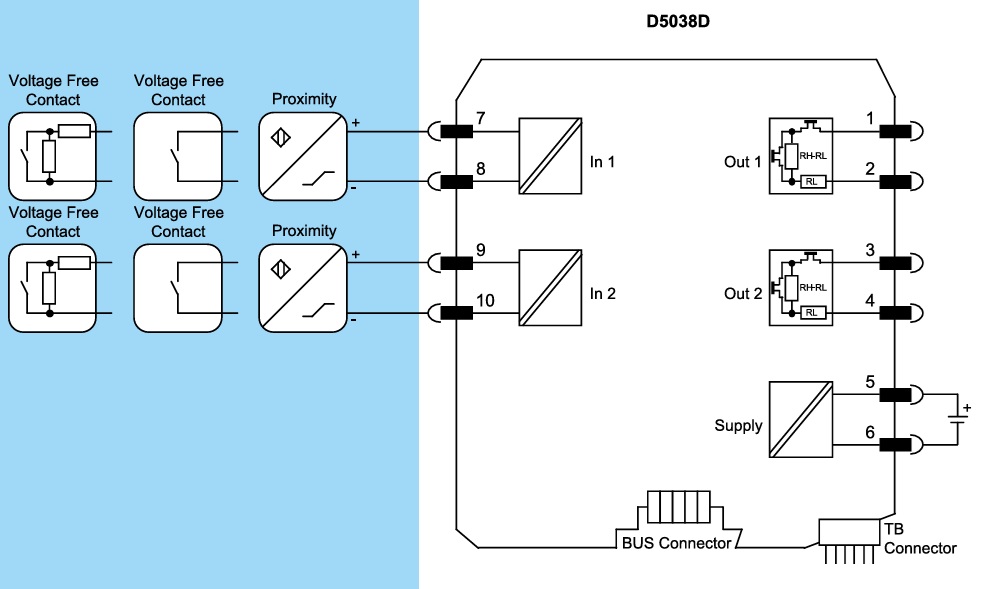

D5038SA
D5038SB
D5038SC
D5038SD

D5038DA
D5038DB
D5038DC
D5038DD

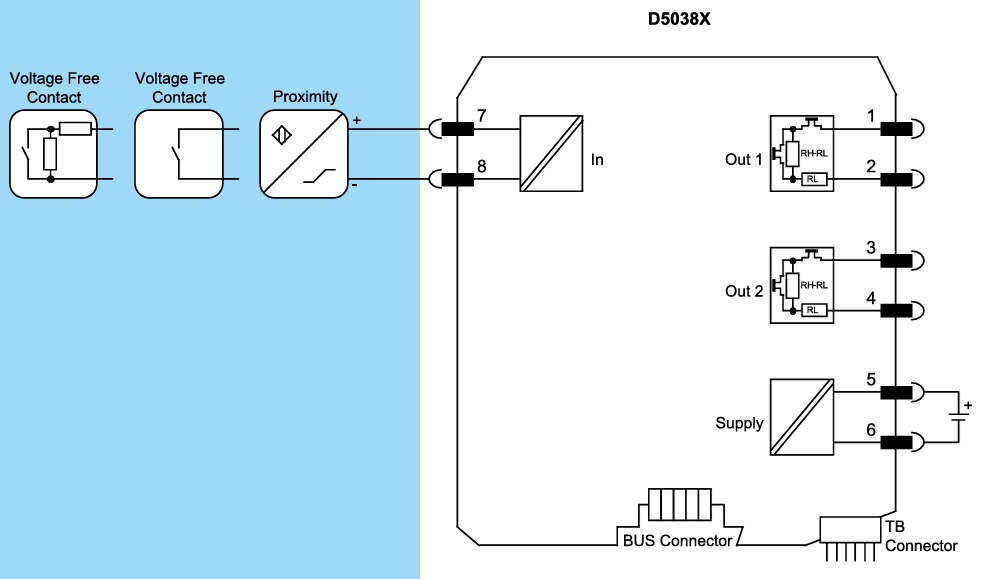

D5038XA
D5038XB
D5038XC
D5038XD

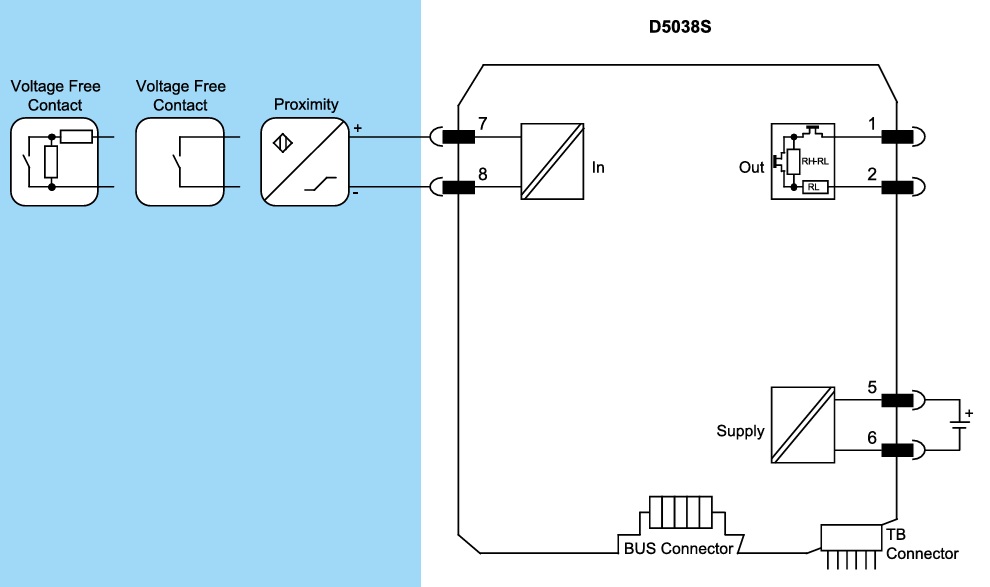

I.S. SIL3 Line-Fault Transp. Switch/Prox. Repeater

The Switch/Proximity Detector Repeater D5038 is a module suitable for applications requiring SIL 3 level in safety related systems for high risk industries.
The unit can be configured for switches or proximity detectors, located in Hazardous Area, and repeats the input state to the output in Safe Area.
The output port can assume two different impedance values (RL or RH) or it can open completely.
The module output repeats the input state according to the following correspondence: low input state -> RL, high input state -> RH.
Alternatively, the output can be configured to invert the input state. In both cases, the output opens if any fault (open or short circuit) occurs at the corresponding input.

Ordering codes
D5038xy
x: S → 1 channel; D → 2 channels; X → duplicator
y: A → RL = 2.2 kΩ, RH = 14.3 kΩ
    B → RL = 476 Ω, RH = 1.38 kΩ
    C → RL = 5 kΩ, RH = 15 kΩ
    D → RL = 0 Ω, RH = 33.2 kΩ


  • SIL 3 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • Field open and short circuit detection
  • Field fault universal mirroring to PLC DI
  • Line monitoring transparency
  • In-field programmability by DIP Switch
  • Three port isolation, Input/Output/Supply
  • High Density, two channels per unit

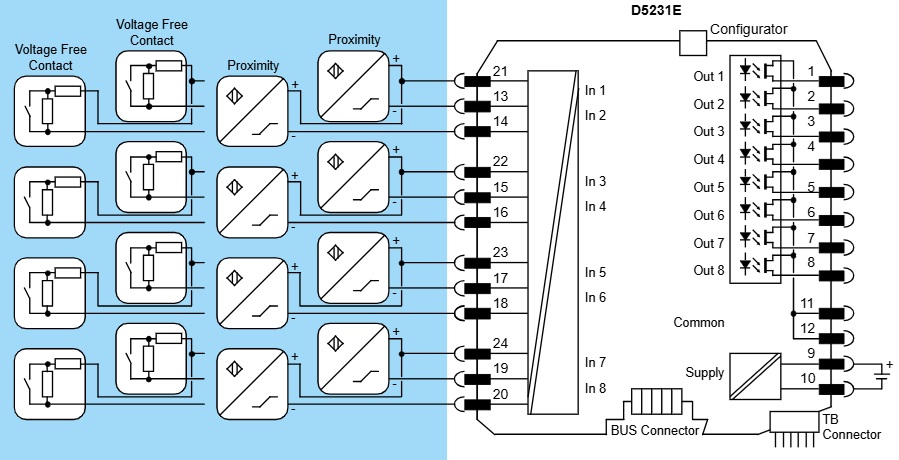

D5231E

DATA SHEET DOWNLOAD

I.S. SIL2 Switch/Proximity O.C.-Out Repeater


  • SIL 2 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • Field open and short circuit detection
  • Input muxing/duplication/inversion/operations available
  • Modbus RTU RS-485 for monitor & configuration
  • Fully programmable operating parameters
  • Three port isolation, Input/Output/Supply
  • High Density, eight channels per unit

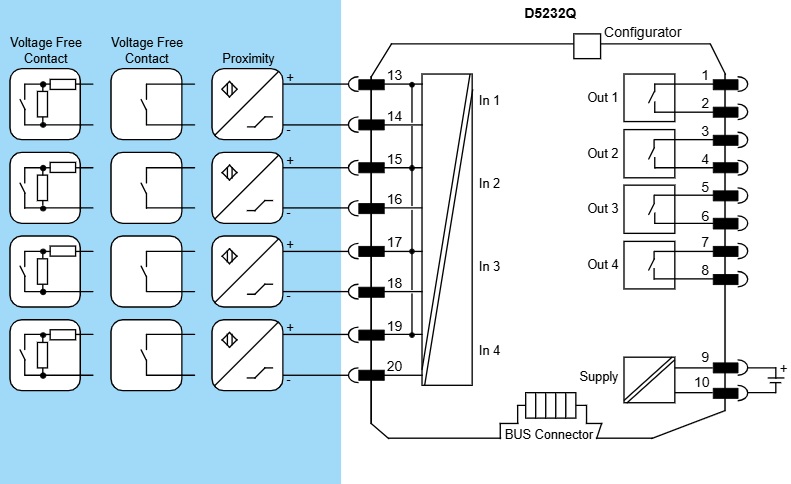

D5232Q

DATA SHEET DOWNLOAD		I.S. SIL2 Switch/Proximity Relay-Out Repeater

  • SIL 2 / SC 3 (pending)
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • High output current
  • Field open and short circuit detection
  • Input inversion available
  • Duplication available
  • Three port isolation, Input/Output/Supply
  • High Density, four channels per unit

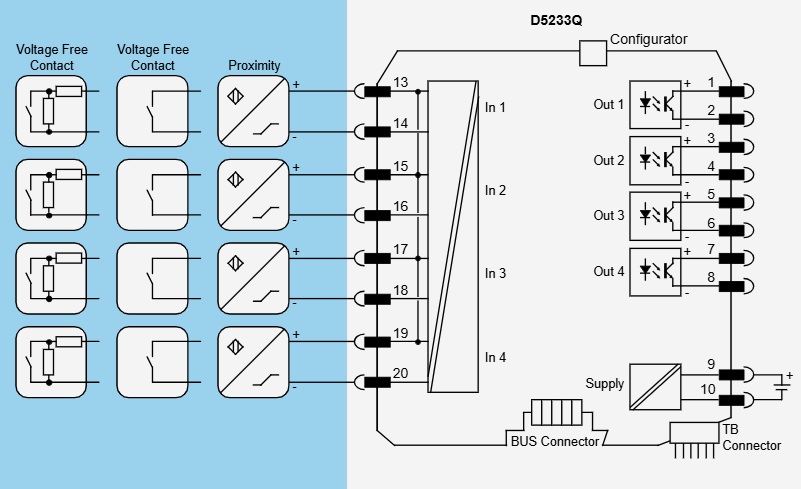

D5233Q

DATA SHEET DOWNLOAD


I.S. SIL2 Switch/Proximity Transistor-Out Repeater

  • SIL 2 / SC 3 (pending)
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • High frequency transistor output
  • Field open and short circuit detection
  • Input inversion available
  • Duplication available
  • Three port isolation, Input/Output/Supply
  • High Density, four channels per unit

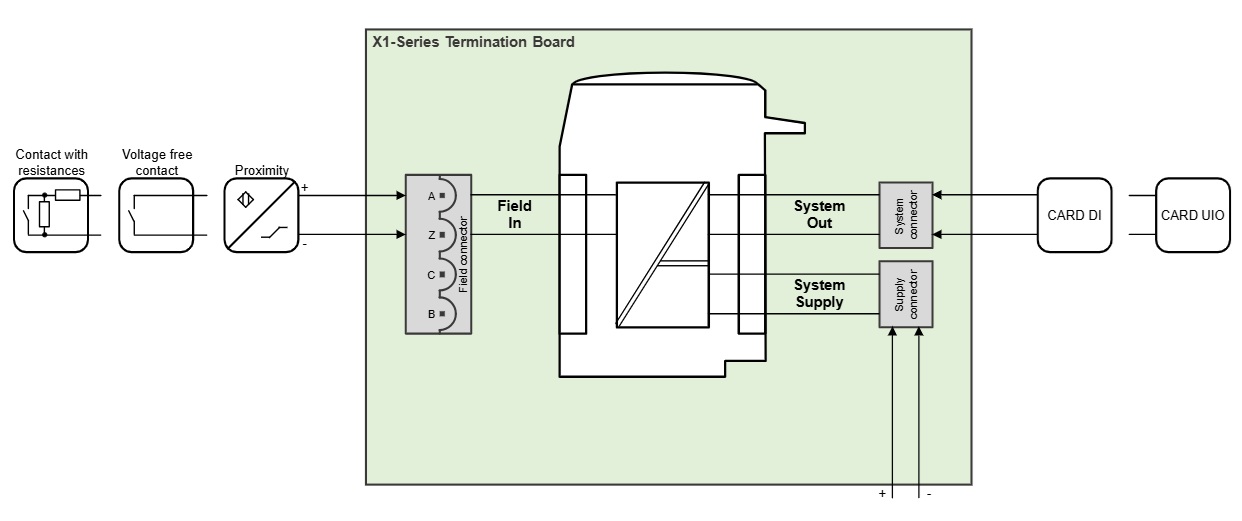

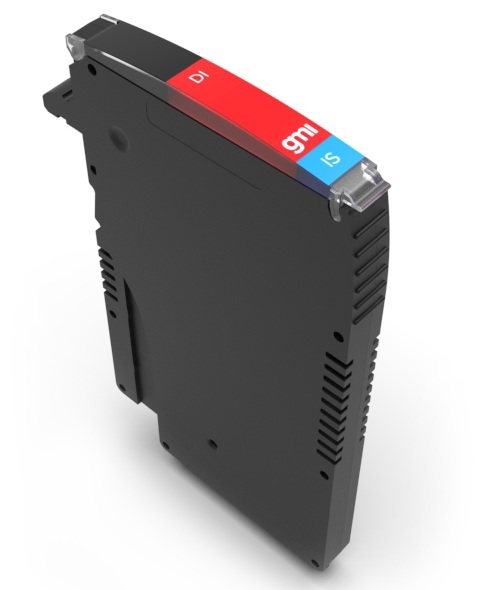

X1-IS-DI-01-S

DATA SHEET DOWNLOAD

I.S. SIL3 Switch/Proximity Transistor-Out Repeater


  • SIL 3 / SC 3
  • Input from Zone 0 / Division 1
  • Installation in Zone 2 / Division 2
  • Loop disconnection to ease maintenance operations
  • Mechanical polarization key to prevent destructive mismatches
  • High frequency transistor output
  • Field open and short circuit detection (DIP switch programmable)
  • Out-of-range fault with programmable thresholds
  • Inverted output available (DIP switch programmable)
  • Three port isolation, Input/Output/Supply
X1-IS-DI-02-S

DATA SHEET DOWNLOAD		I.S. SIL2 Switch/Proximity Transistor-Out Repeater

  • SIL 2 / SC 3
  • Input from Zone 0 / Division 1
  • Installation in Zone 2 / Division 2
  • Loop disconnection to ease maintenance operations
  • Mechanical polarization key to prevent destructive mismatches
  • High frequency transistor output
  • Field open and short circuit detection (software programmable)
  • Inverted output available (software programmable)
  • Three port isolation, Input/Output/Supply

X1-IS-DI-03-S

DATA SHEET DOWNLOAD		I.S. SIL3 Line-Fault Transparent Switch/Proximity Repeater

  • SIL 3 / SC 3
  • Input from Zone 0 / Division 1
  • Installation in Zone 2 / Division 2
  • Loop disconnection to ease maintenance operations
  • Mechanical polarization key to prevent destructive mismatches
  • High frequency transistor output
  • Field open and short circuit detection (DIP switch programmable)
  • Inverted output available (DIP switch programmable)
  • Line fault transparency to system Digital Input (when fault enabled)
  • Three port isolation, Input/Output/Supply
X1-IS-DI-04-S

DATA SHEET DOWNLOAD		I.S. SIL2 Line-Fault Transparent Switch/Proximity Repeater

  • SIL 2 / SC 3
  • Input from Zone 0 / Division 1
  • Installation in Zone 2 / Division 2
  • Loop disconnection to ease maintenance operations
  • Mechanical polarization key to prevent destructive mismatches
  • High frequency transistor output
  • Field open and short circuit detection (DIP switch programmable)
  • Inverted output available (DIP switch programmable)
  • Line fault transparency to system Digital Input (when fault enabled)
  • Three port isolation, Input/Output/Supply

Digital Output

MODELDESCRIPTIONCONNECTION DIAGRAM
D5040S (1ch)
D5040D (2ch)

DATA SHEET DOWNLOAD


I.S. SIL3 Loop-Powered Digital Output Driver

  • SIL 3 / SC 3
  • Output to Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • Loop powered for NE loads
  • Output short circuit proof
  • Two port isolation, Input/Output

      High Density, two channels per unit (D5040D)


D5048S (1ch)

DATA SHEET DOWNLOAD		I.S. SIL3 Loop-Powered Digital Output Driver

  • SIL 3 / SC 3
  • Output to Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • Loop powered for NE loads
  • Line & Load short/open circuit detection
  • Output short circuit proof
  • In-field programmability by DIP Switch
  • Three port isolation, Input/Output/Fault

D5049S (1ch)

DATA SHEET DOWNLOAD
I.S. SIL3 Bus-Powered Digital Output Driver

  • SIL 3 / SC 3
  • Output to Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • Bus powered for NE loads
  • Line & Load short/open circuit detection
  • Output short circuit proof
  • In-field programmability by DIP Switch
  • Three port isolation, Input/Output/Fault

D5240T (3ch)

DATA SHEET DOWNLOAD
I.S. SIL2 Bus-Powered Digital Output Driver

  • SIL 2 / SC 3
  • Output to Zone 0
  • Installation in Zone 2
  • Bus powered for NE loads
  • Output short circuit proof
  • Modbus RTU RS-485 for monitor & configuration
  • Fully programmable operating parameters
  • Three port isolation, Input/Output/Supply
  • High Density, three channels per unit


X1-IS-DO-01-S

DATA SHEET DOWNLOAD
I.S. SIL3 Digital Output Driver

  • SIL 3 / SC 3
  • Input from Zone 0 / Division 1
  • Installation in Zone 2 / Division 2
  • Loop disconnection to ease maintenance operations
  • Mechanical polarization key to prevent destructive mismatches
  • Short-circuit proof
  • Three different IS valve family parameters supported
  • Compatible with DCS/PLC pulse testing
  • Three port isolation, Input/Output/Supply

X1-IS-DO-02-S

DATA SHEET DOWNLOAD

I.S. SIL3 Digital Output Driver with Diagnostics


  • SIL 3 / SC 3
  • Input from Zone 0 / Division 1
  • Installation in Zone 2 / Division 2
  • Loop disconnection to ease maintenance operations
  • Mechanical polarization key to prevent destructive mismatches
  • Short-circuit proof
  • Three different IS valve family parameters supported
  • Compatible with DCS/PLC pulse testing
  • Load short/open circuit detection in ON and OFF
  • Field fault mirroring to the DCS/PLC DO Card
  • Selectable fault input impedance (software programmable)
  • Three port isolation, Input/Output/Supply

Temperature Intput

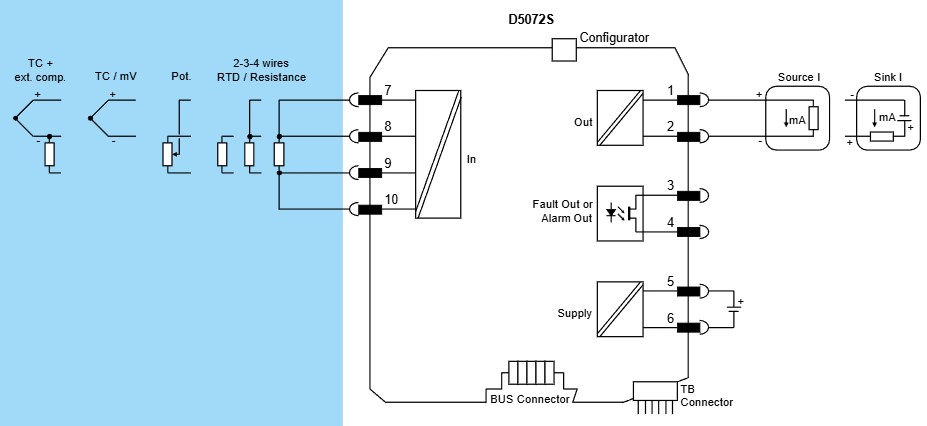

D5072S (1ch)

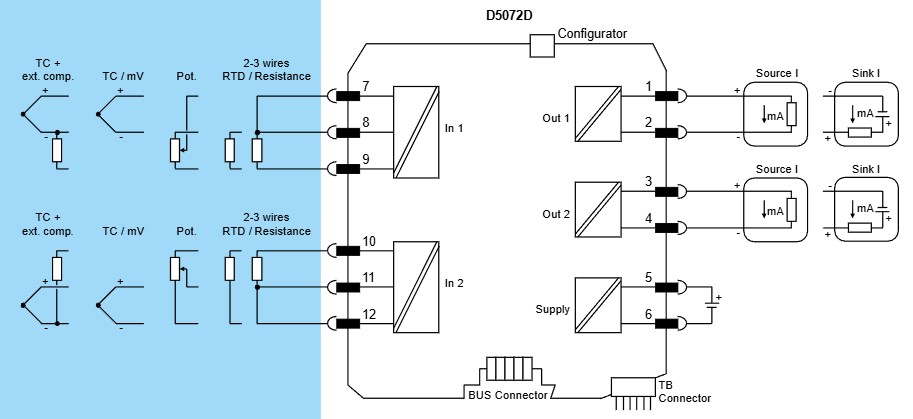

D5072D (2ch)

DATA SHEET DOWNLOAD


I.S. SIL2 Multifunction Temperature Converter

  • SIL 2 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • mV, TC, 2/3/4wire res./RTD or potentiometer input
  • Duplication/inversion/scaling/custom output
  • Selectable CJC: int. PT1000, external RTD or fixed
  • Burnout/internal/cjc/in sensor fault monitor
  • Alarm output with user-settable trip points
  • Modbus RTU RS-485 for monitor & configuration
  • Fully programmable operating parameters
  • High Accuracy, µP controlled A/D converter
  • Three port isolation, Input/Output/Supply

  • High Density, two channels per unit (D5072D)

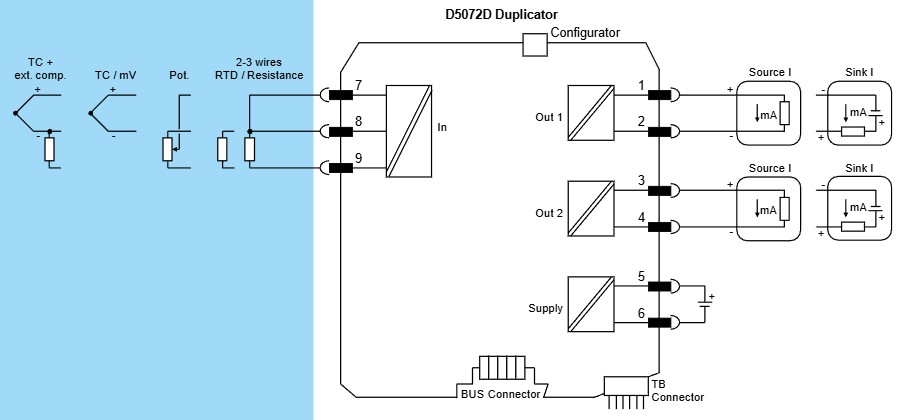

  • D5072D can configure as Duplicator

Duplicator

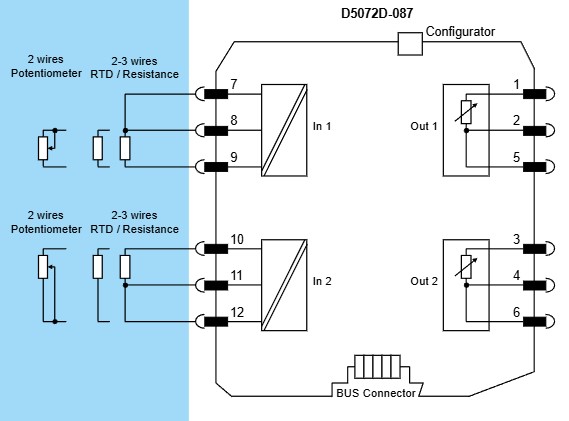

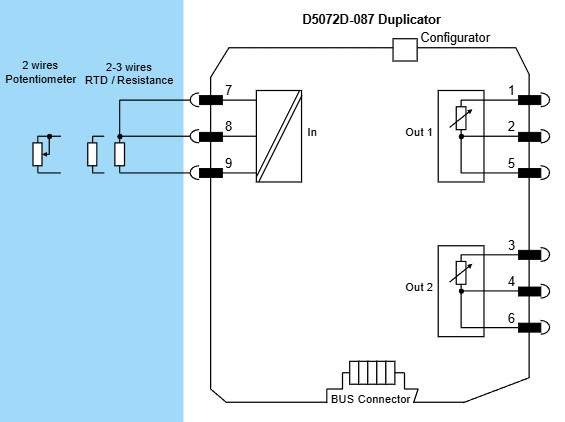

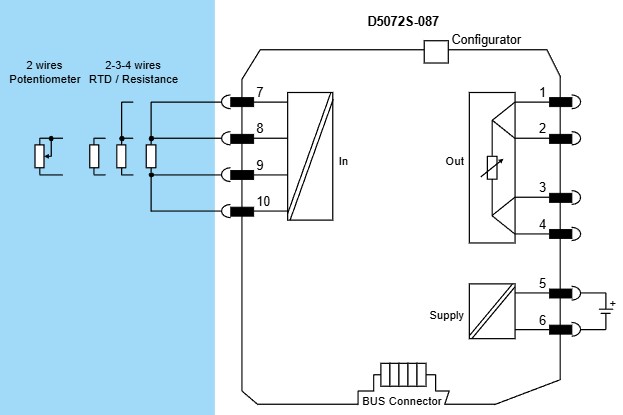

D5072S-087(1ch)
D5072D-087(2ch)

DATA SHEET DOWNLOAD


I.S. SIL2 Resistance Repeater



    • SIL 2 / SC 3
    • Input from Zone 0/Div. 1
    • Installation in Zone 2/Div. 2
    • 2/3/4wire res./RTD or potentiometer input
    • Burnout Fault detection
    • Fully programmable operating parameters
    • High Accuracy
    • Three port isolation, Input/Output/Supply

    • High Density, two channels  (D5072D-087)

    • D5072D-087 can configure as Duplicator


Duplicator

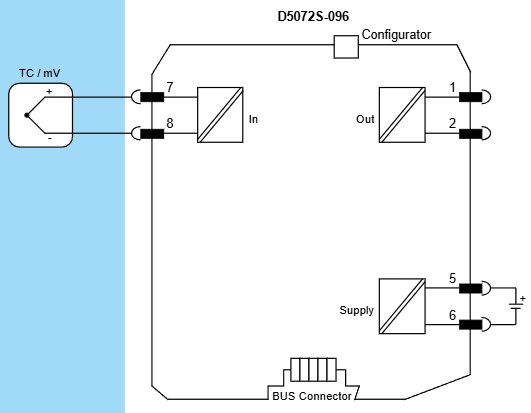

D5072S-096(1ch)

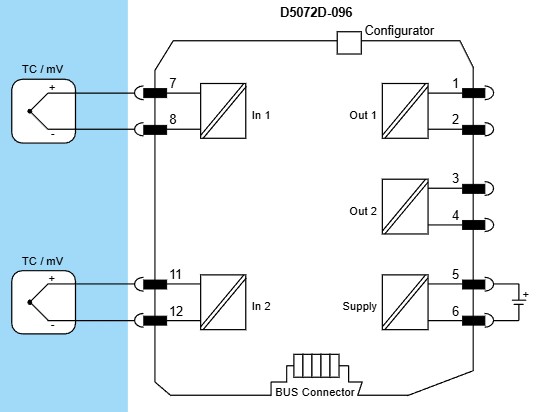

D5072D-096(2ch)

DATA SHEET DOWNLOAD
I.S. SIL2 Thermocouple/mV Repeater

  • SIL 2 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • mV or thermocouple input
  • Output duplication
  • Fully programmable operating parameters
  • High Accuracy, µP controlled A/D converter
  • Three port isolation, Input/Output/Supply

  • High Density, two channels per unit (D5072D-096)

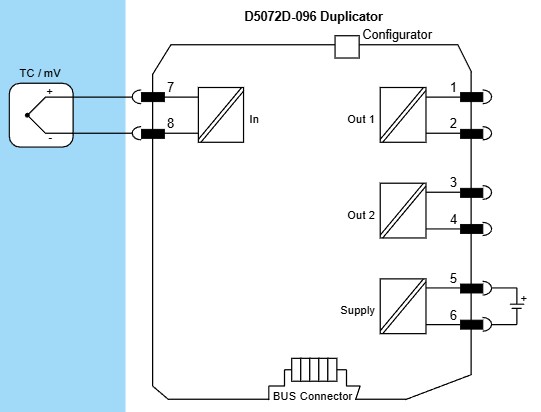

Duplicator

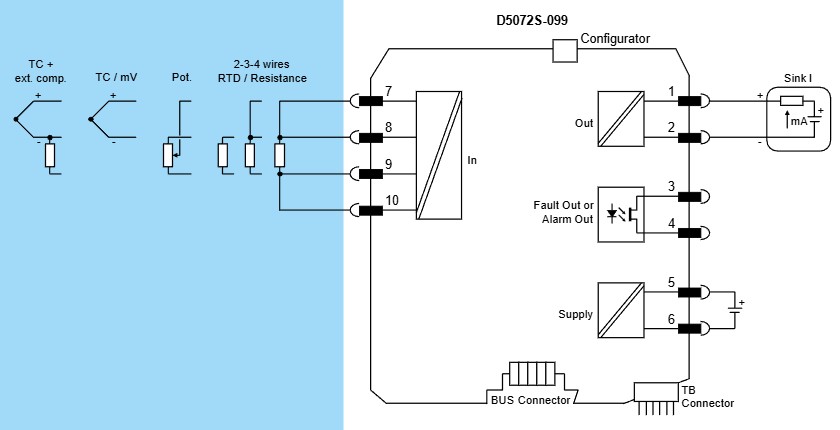

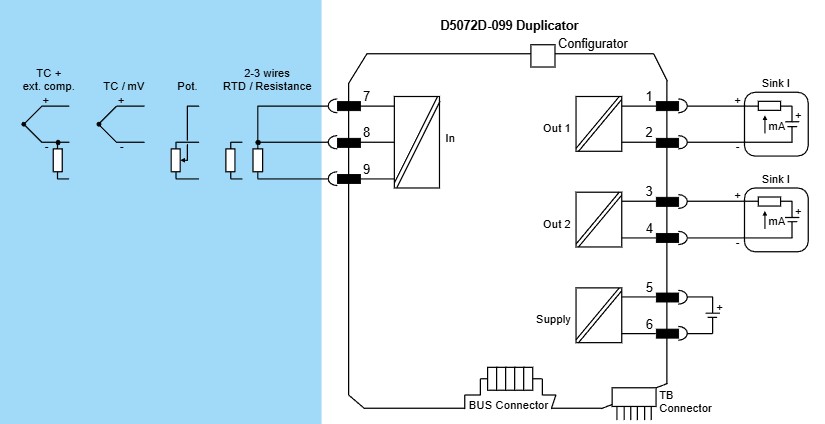

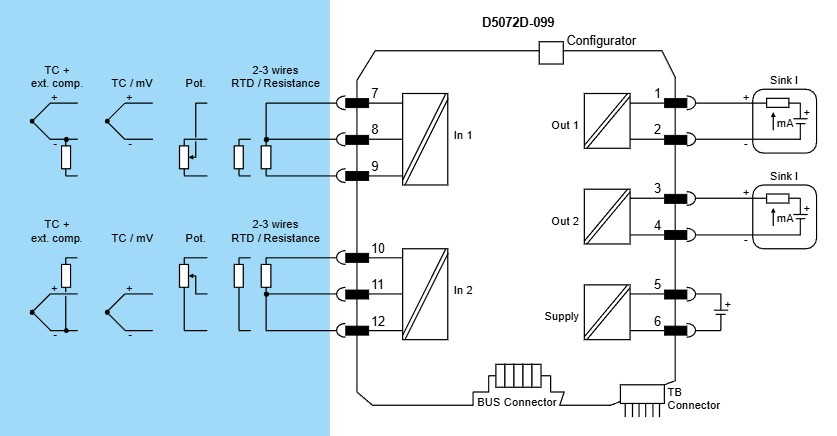

D5072S-099(1ch)
D5072D-099(2ch)

DATA SHEET DOWNLOAD

I.S. SIL2 Sink-Out Temperature Converter


  • SIL 2 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • mV, TC, 2/3/4wire res./RTD or potentiometer input
  • Duplication/inversion/scaling/custom output
  • Selectable CJC: int. PT1000, external RTD or fixed
  • Burnout/internal/cjc/in sensor fault monitor
  • Alarm output with user-settable trip points
  • Modbus RTU RS-485 for monitor & configuration
  • Fully programmable operating parameters
  • High Accuracy, µP controlled A/D converter
  • Three port isolation, Input/Output/Supply
  • High Density, two channels per unit (D5072D-099)

Duplicator

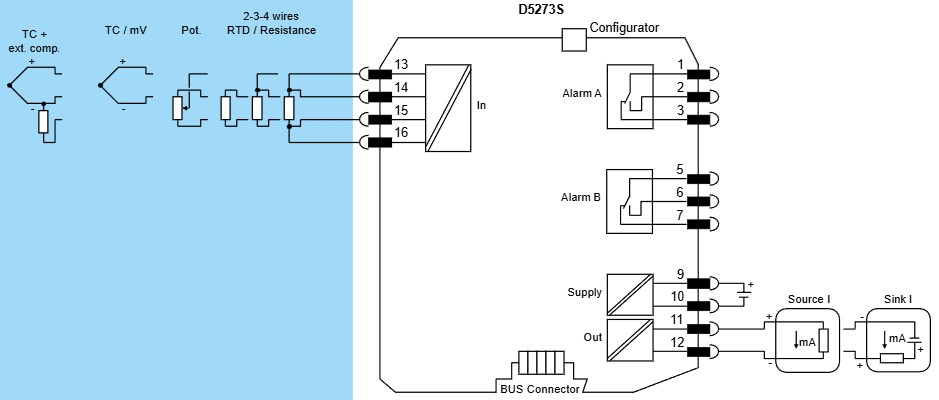

D5273S

DATA SHEET DOWNLOAD
I.S. SIL2 Temperature Converter & Trip Amplifier

  • SIL 2 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • mV, TC, 2/3/4wire res./RTD or potentiometer input
  • Two independent Trip Amplifiers (SPDT relay contacts)
  • Inversion/scaling/custom output
  • Selectable CJC: internal PT1000, external RTD or fixed
  • Burnout/internal/cjc/in sensor fault monitor
  • Alarm output with user-settable trip points
  • Modbus RTU RS-485 for monitor & configuration
  • Fully programmable operating parameters
  • High Accuracy, µP controlled A/D converter
  • Three port isolation, Input/Output/Supply

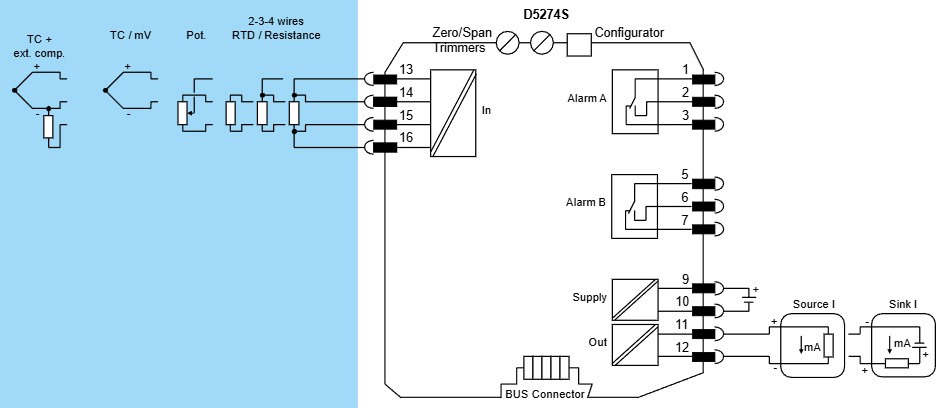

D5274S

DATA SHEET DOWNLOAD
I.S. SIL2 Temp. Trip Amplifier w/ Zero/Span Trimmer

  • SIL 2 / SC 2 (pending)
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • mV, TC, 2/3/4wire res./RTD or potentiometer input
  • Two independent Trip Amplifiers (SPDT relay contacts)
  • Inversion/scaling/custom output
  • Selectable CJC: internal PT1000, external RTD or fixed
  • Burnout fault monitor
  • Alarm output with user-settable trip points
  • Zero/span output current trimmers
  • Extended power supply for 12/24 Vdc nominal voltage
  • Fully programmable operating parameters
  • High Accuracy, µP controlled A/D converter
  • Three port isolation, Input/Output/Supply

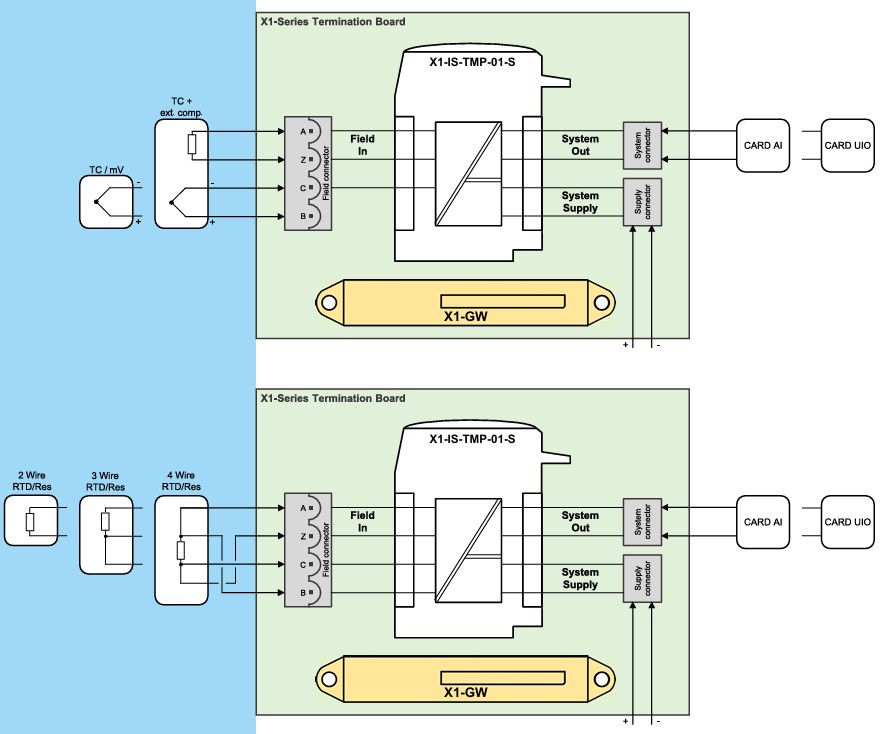

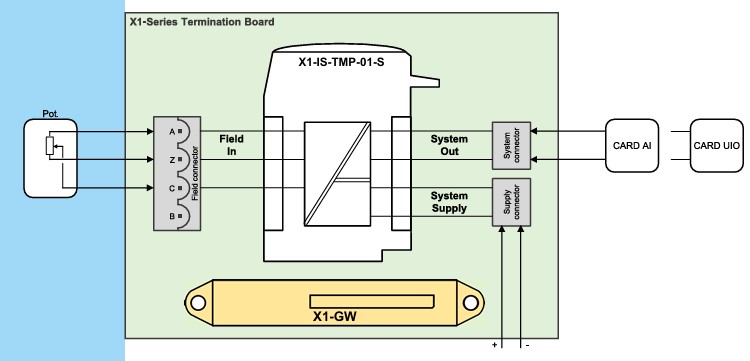

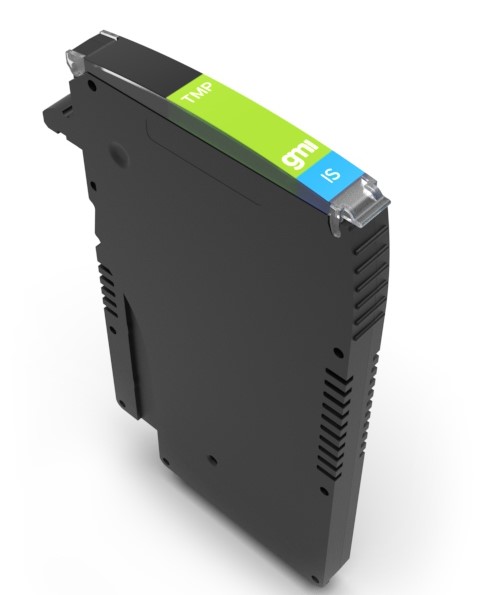

X1-IS-TMP-01

DATA SHEET DOWNLOAD
I.S. SIL2 Temperature Converter

  • SIL 2 / SC 3
  • Input from Zone 0 / Division 1
  • Installation in Zone 2 / Division 2
  • Loop disconnection to ease maintenance operations
  • Programmable fault in case of burnout or threshold exceeding
  • mV, TC, 2/3/4-wire resistance/RTD or potentiometer input
  • Inversion/scaling/custom output current
  • Mechanical polarization key to prevent destructive mismatches
  • Fully programmable through Gateway
  • High Accuracy
  • Three port isolation, Input/Output/Supply

LOAD CELL Intput

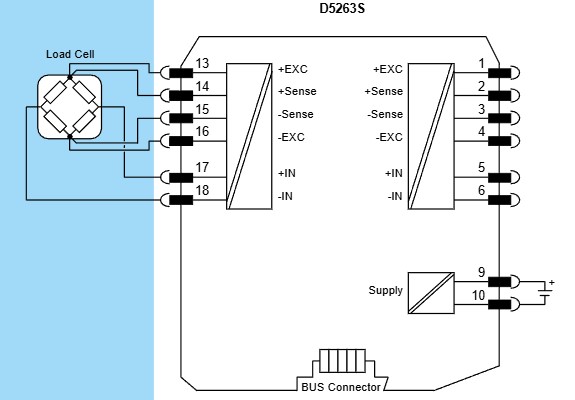

D5263S

DATA SHEET DOWNLOAD
I.S. SIL2 Load Cell/Strain Gauge Bridge Repeater

  • SIL 2 / SC 3
  • Input from Zone 0
  • Installation in Zone 2
  • Strain Gauge Bridge Transparent Repeater
  • Up to four 350 Ω load cells in parallel
  • High Accuracy
  • Three port isolation, Input/Output/Supply

D5264S

DATA SHEET DOWNLOAD


I.S. SIL2 Load Cell/Strain Gauge Bridge Converter


  • SIL 2 / SC 3
  • Input from Zone 0
  • Installation in Zone 2
  • Strain Gauge Bridge Isolated Converter
  • Up to four 350 Ω load cells in parallel
  • 0/4-20 mA sink/source output current
  • Modbus RTU RS-485 for monitor & configuration
  • Field Automatic Calibration
  • Fully programmable operating parameters
  • High Accuracy, μP controlled A/D converter
  • Three port isolation, Input/Output/Supply


VIBRATION TRANSEDUCER Interface

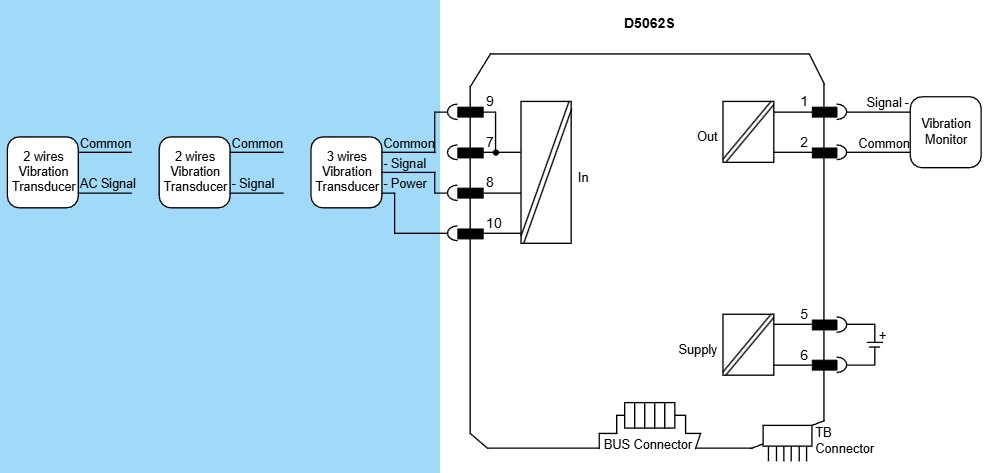

D5062S (1ch)

DATA SHEET DOWN LOAD
I.S. SIL2 Vibration Transducer Interface

  • SIL 2 / SC 3
  • Input from Zone 0/Div. 1
  • Installation in Zone 2/Div. 2
  • 0 to –20 V Input/Output Signal
  • Wide band signal transfer
  • Input and Output short circuit proof
  • In-field programmability by DIP Switch
  • High Accuracy
  • Three port isolation, Input/Output/Supply

RS485 / RS422 Isolating Repeater

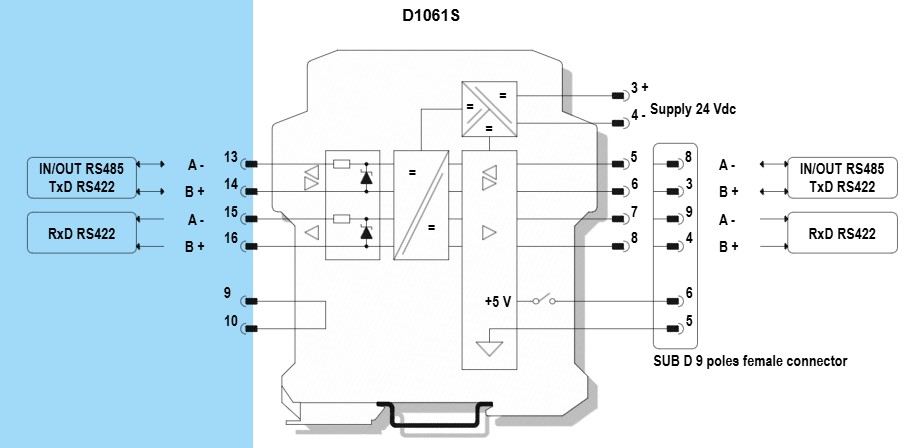

D1061S (1ch)

DATA SHEET DOWNLOAD

RS422 / RS485 Isolating Repeater DIN-Rail Model D1061S


  • Input from Zone 0 (Zone 20), Division 1, installation in Zone 2, Division 2.
  • RS422 / RS485 Hazardous Area I.S. Signal.
  • RS232 / RS422 / RS485 Safe Area Signal.
  • Transmission speed up to 1.5 Mbit/s.
  • For Modbus, Fieldbus, Profibus and all other RS485 protocols.
  • Three port isolation, Input/Output/Supply.
  • EMC Compatibility to EN61000-6-2, EN61000-6-4.
  • In-field programmability by DIP Switch.
  • 250 Vrms (Um) max. voltage allowed to the Instruments associated with the barrier.
