Signal Isolators, Repeaters and Converters
Moore Industries Signal Isolators, Converters and Splitters protect your process by converting, isolating, splitting, boosting and stepping down process signals so field instruments can interface directly with indicators, recorders, DCS, PLC, Asset Management, Control and SCADA systems.


MODEL
DESCRIPTION
INPUT
OUTPUT
POWER
FEATURE

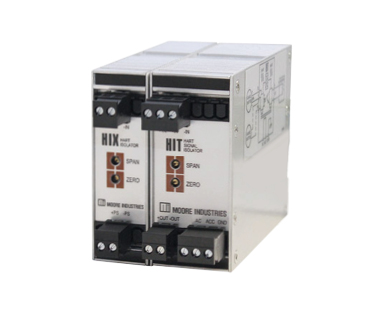

HIX & HIT2- and 4-Wire HART® Isolators and Repeater4-20mA4-20mA12-42Vdc, Output Loop PoweredHART passthruDATA SHEET

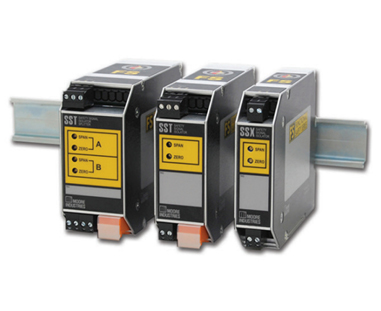

SSX & SSTHART® Functional Safety Isolators, Repeaters and Splitters4-20mA4-20mA24Vdc, 117Vac, 230Vac, Output Loop PoweredHART passthru depend on the models
SIL2		DATA SHEET

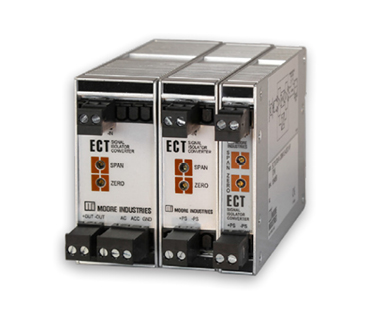

ECT-DINSignal Isolator, Converter, Repeater, Booster and Splitters4-20mA
10-50mA
1-5V
0-100V etc
4-20mA12-42dc, Input Loop Powered, Output Loop Powered
DATA SHEET

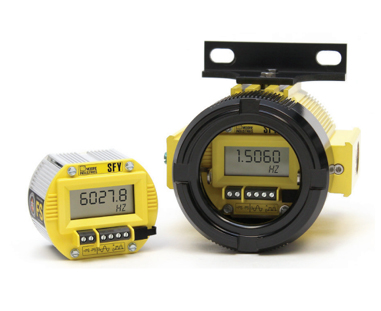

SFYFunctional Safety Frequency-to-DC Transmitter with DisplayFrequency4-20mA12-42dc, Input Loop Powered, Output Loop PoweredSIL2DATA SHEET

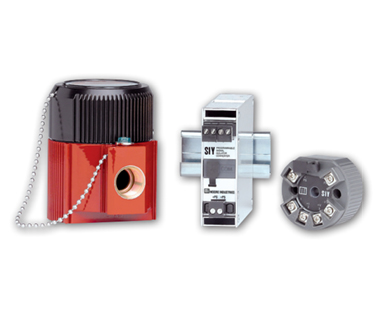

SIYPC-Programmable Signal Isolator/Repeater/ConverterCurrent
Voltage		4-20mA12-42dc, 10-30dc, Input Loop Powered, Output Loop Powered


DATA SHEET

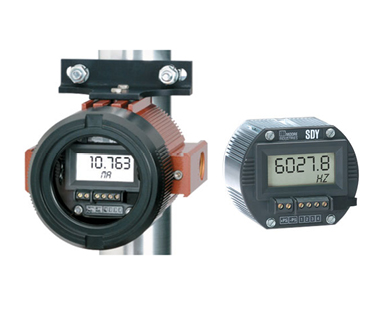

SDYSDY PC Programmable Signal Isolator, Repeater and ConverterCurrent
Voltage		4-20mA10-42dc, 10-30dc IS option
DATA SHEET

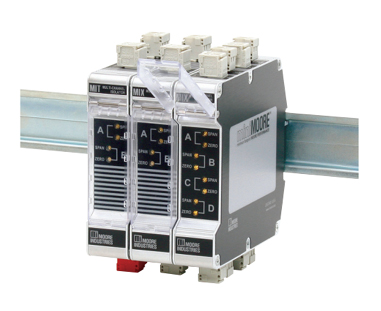

MIX & MITMulti-Channel Signal Isolator, Repeater and ConverterCurrent
Voltage		4-20mA

12-42dc, MIT ; U : 20-125Vdc,or 90-250Vac2channel or 4 channel high density modelDATA SHEET

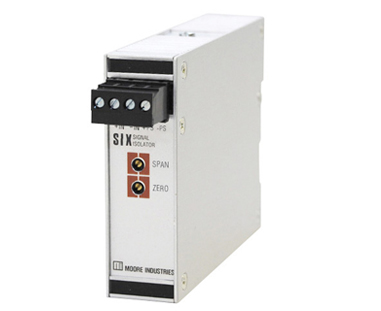

SIX2-Wire Isolator/Repeater/ConverterCurrent
Voltage		4-20mA,
10-50mA		10-42dc (Loop powered on output side)-10 Vdc ~ +10 Vdc for BaileyDATA SHEET

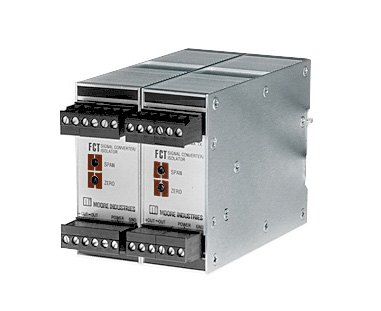

FCTField-Configurable Signal Isolator, Converter and Repeater0-20mA , 4-20mA,
0-50mA, 10-50mA 0-5V , 1-5V, 0-10V
0-20mA , 4-20mA  0-5V, 1-5V, 0-10V
22- 300Vdc or 90- 260Vac,
DATA SHEET

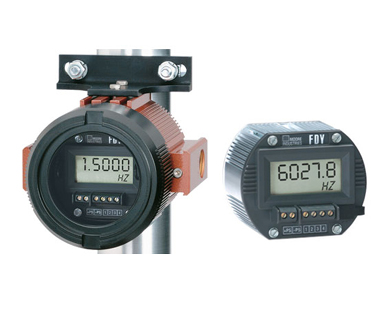

FDYPC-Programmable Frequency-to-DC Transmitter with DisplayFrequency
4-20mA10-42dc, 10-30dc IS option10-250Vac  or 0.1-30Vdc amplitude DATA SHEET
