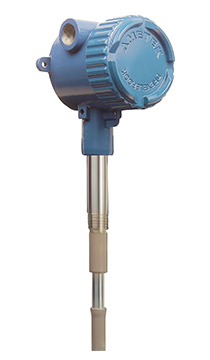

Genesis™ Models ED1 & ED2 Multiphase Detectors

Genesis™ 모델 ED1 및 ED2 Detector는 TDR 기반의 24VDC 레벨 검출기로, 인터페이스 레벨 측정 애플리케이션에서 다양한 층의 레벨을 정확하게 검출하도록 설계되었습니다. 여러 중요한 엔지니어링 성과를 담고 있는 최첨단 레벨 검출기는 기존의 많은 기술보다 훨씬 뛰어난 측정 성능을 제공하도록 설계되었습니다.

Genesis 모델은 두껍고 유동적인 에멀젼 층이 있는 응용 분야에서 여러 단계를 측정하도록 설계되었습니다.

• 기체상 (탱크 크기 기준)
• 총량 (예: 탄화수소 액체)
• 유화층 상단
• 유화층 하단 (예: 수면)
•  침전물







• 24VDC 인터페이스 검출기로, 상단 레벨, 에멀젼 상단, 수위 및 침전물 레벨을 편리하게 제어할 수 있는 4개의 4-20mA 출력 단자를 제공합니다.
• 탑다운 및 바텀업 신호를 동시에 생성합니다.
• 매체 특성 변화에도 레벨 측정에 영향을 받지 않습니다.
• 용기 내 레벨 교정, 변경이 필요 없습니다.
•  4 버튼키패드와 그래픽 LCD를 통해 구성 매개변수 및 성능 곡선을 확인할 수 있습니다.
• 유지보수 일정을 계획하고 예기치 않은 가동 중단을 최소화하는 사전 진단 기능을 제공합니다.
• 물리적 가동 부품이 없어 측정 오류 및 가동 중지 시간을 줄입니다.
• 상단에 장착된 하나의 연결 센서를 통해 4개의 레벨을 감지합니다.
• 센서 설계는 최대 +200°C / 70bar까지 사용 가능합니다.
• 신호 해석을 위한 독자적이고 혁신적인 소프트웨어 알고리즘을 탑재했습니다.

E4 Modulevel® liquid level transmitter

The E4 Modulevel® is a loop powered, two-wire instrument, utilizing simple buoyancy principles to detect and convert liquid level changes into a stable output signal. The linkage between the level sensing element and output electronics provides a purely mechanical design and construction. The vertical in-line design of the transmitter results in low instrument weight and simplified installation. The instrument comes in a variety of configurations and pressure ratings for varied applications.

The E4 Modulevel has microprocessor based electronics with 4–20 mA/HART® digital output. E4 supports the FDT/DTM standard and a PACTware™ PC software package allows for additional configuration, diagnostics and trending capabilities.

• Safety Integrity Level (SIL) 2 Suitable
• No calibration required; configuration only
• Available with 4–20 mA and HART® 7 with PACTware™ PC software and the Field Device Tool (FDT); AMS ready
• NAMUR NE 107 diagnostic coverage
• Range spring suppresses effects of turbulence to produce stable output signal
• Full range of hazardous location approvals with international certifications
• Order entire Modulevel or retrofit the latest transmitter onto existing displacer assemblies
• In additional to total level, suitable for interface measurement or specific gravity output

Eclipse® 706 guided wave radar transmitter

The Eclipse® Model 706 high performance transmitter is a loop-powered, 24 VDC level transmitter that is based upon the proven technology of guided wave radar (GWR). Encompassing a number of significant engineering accomplishments, this leading-edge level transmitter is designed to provide measurement performance well beyond that of many of the more traditional technologies.

The ECLIPSE Model 706 transmitter supports both the FDT/DTM and enhanced DD standards, which allows viewing of valuable configuration and diagnostic information such as the echo curve in tools such as PACTware™, AMS Device Manager, and various HART® Field Communicators.

Jupiter® JM4 magnetostrictive level transmitter

The Jupiter® JM4 liquid level transmitter is a loop-powered 24 VDC liquid-level transmitter and is available as a direct insertion transmitter or as an external mounted transmitter onto a Magnetic Level Indicator. It relies on the position of a magnetic float which is designed precisely for the liquid to be measured. This high-accuracy device can be designed for liquid level and/or liquid-liquid interface measurement.

The high safety level of JUPITER is demonstrated by a Safe Failure Fraction > 90 %

• 4-button user interface and graphical LCD display provide enhanced depth of data, indicating on-screen waveforms and troubleshooting tips.
• 4-20 mA output
• Rotatable housing can be dismantled without depressurising
• the vessel via “Quick connect/disconnect” probe coupling.
• Ergonomic dual compartment enclosure
• Simple set-up and configuration
• Smart Probe Technology
• Easy attachment to an MLI
• Direct insertion for a wide variety of vessels and applications

Eclipse® Model 706 Guided Wave Radar (GWR) transmitter for hygienic applications

The Eclipse Model 706 GWR transmitter is available with a 304 stainless steel single compartment housing designed specifically for use in hygienic applications. This instrument meets the needs and requirements for the wetted and non-wetted materials, process connections and surface finishes of hygienic industries.

The Model 706 is a loop-powered, 24 VDC, level transmitter based upon the revolutionary guided wave radar (GWR) technology. Designed to provide measurement performance well beyond that of many traditional technologies, it offers easy configuration with a graphic LCD and intuitive user interface.

The Eclipse transmitter supports the FDT/DTM standard, and a PACTware™ PC software package allows for additional configuration and trending flexibility.

• Low dielectric measurement capability (εr ≥ 1.2)
• Volumetric output with a 30-point strapping table
• Quick connect/disconnect probe coupling
• Operates in visible vapors and ignores most foams
• IS and Non-Incendive approvals
• Ignores coating buildup

Eclipse® 700 guided wave radar transmitter

The Eclipse® Model 700 Transmitter is a loop-powered, 24 VDC level transmitter that is based upon the proven and accepted technology of Guided Wave Radar (GWR). Encompassing a number of significant engineering accomplishments, this leading-edge level transmitter is designed to provide measurement performance well beyond that of many of the more traditional technologies.

This single transmitter can be used in a wide variety of applications ranging from very light hydrocarbons to water-based media.

One universal Model 700 transmitter can be used and interchanged with several different probe types and offers enhanced reliability as it is certified for use in critical SIL 2/3 hardware safety loops.

The ECLIPSE Model 700 supports both the FDT/DTM and Enhanced DD (EDDL) standards, which allow viewing of valuable configuration and diagnostic information such as the echo curve in tools such as PACTware™, AMS Device Manager, and various HART® Field Communicators.

• Multivariable, two-wire, 24 VDC loop-powered transmitter for level, interface, volume, or flow.
• Level measurement not affected by changing media characteristics.
• No need to move levels for calibration.
• Overfill Capable probes allow for “true level” measurement all the way up to the process seal, without the need for special algorithms.
• 4-button keypad and graphic LCD display allow for convenient viewing of configuration parameters and echo curve.
• Proactive diagnostics advise not only what is wrong, but also offer troubleshooting tips.

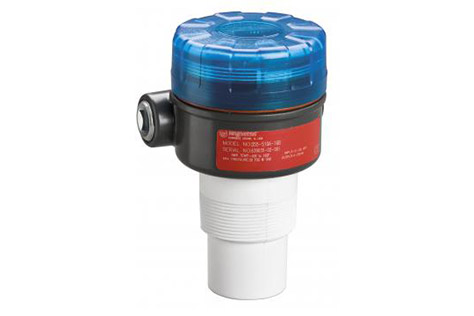

Echotel® model 355 two-wire loop-powered ultrasonic non-contact transmitter

Echotel® Model 355 is a loop-powered, non-contact-type ultrasonic transmitter that performs liquid level, volume or open channel flow measurement. HART® communications are offered with a PACTware™ PC program for remote configuration and troubleshooting.

• PACTware PC program using HART Communications for remote configuration, advanced diagnostics, performance trending and troubleshooting
• Menu-driven 4-pushbutton, 2-line x 16 character LCD user interface
• False target rejection for identification of true echo from liquid surface
• Common tank shapes and 20-point custom table for volume measurement
• Resettable and non-resettable 7-digit flow totalizers
• Flume and weir curves for open channel flow measurement, in addition to a 20-point custom table and a generic discharge flow equation

BrightTEK ST9x Wireless IIoT Tank Monitoring System

BrightTEK™ by AMETEK®  is an IIoT solution that provides remote wireless connectivity of Magnetrol®, Orion Instruments®, Drexelbrook®, SWI® and B/W Controls level measurement sensors to the AMETEK LMS cloud-enabled, BrightTEK® web server allowing remote data monitoring and system processing.

• Tank monitoring
  • Large bulk tanks
  • Commercial tanks
  • All shapes and sizes supported
• Trailers and Trucks
  • Optimized routes
  • Maximize driver and asset productivity
  • Eliminate unnecessary and costly stops

BrightTek introduces three cutting-edge uplink options designed to cater to diverse industrial needs:

• ST95 Cellular Uplink:
  A battery-powered cellular uplink providing power and monitoring to sensors in remote locations without the need for wired connections. The ST95 supports up to two 4-20mA sensors and offers compatibility with AT&T® and Verizon® cellular services.


• ST95 Satelite Uplink Host:
  The ST95 Satellite Uplink Host is a solar-powered cellular uplink designed for connecting level measurement devices. Similar to the ST95 Cellular Uplink Host, it offers the benefits of remote monitoring and features unlimited communication range via the Iridium Satellite Network, eliminating the need for cellular service. The ST95 Satellite Uplink Host can support up to six ST95 clients and is intended for installations in non-hazardous areas.


• ST90 AC Powered Host:
  Capable of powering and communicating with up to 32 4–20mA sensors, the ST90 is an excellent choice for various industrial applications, offering the same robust features as the ST95 in a compact, rugged design.

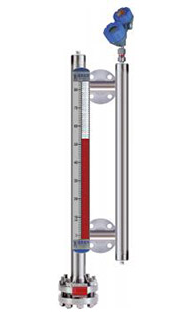

Aurora® magnetic level indicator

The Aurora® combines the operating system of a conventional float-based magnetic level indicator (MLI) with the leading-edge Eclipse® guided wave radar transmitter developed for level measurement applications. The result is true level-measurement redundancy in a single-chamber design.

Using a 3" or 4" chamber to house both the Eclipse probe and the MLI float, these devices operate seamlessly to provide continuous electronic guided wave radar measurement and visual indication. There are six basic configuration styles and more than 15 material selections for the Aurora magnetic level indicator.

For the first time ever, the ability to accurately and repeatedly measure ultra low dielectric media, high temperature/high pressure process conditions, and media with shifting and changing dielectric values can be accomplished with Aurora.

Gemini™ magnetic level indicator

The Gemini MLI offers innovative level measurement in a special twin-chamber design. A magnetic float and high-visibility indicator in the primary chamber operate indepently of the Eclipse® Guided Wave Radar transmitter in the secondary chamber. This use of two differing technologies adds a layer of redundancy similar to the Aurora model.

Gemini's magnetic indicator chamber can be equipped with switches and additional transmitters for expanded capability. Isolation vales are also easily implemented between both chambers to provided flexibility while fulfilling periodic maintenance procedures.

Pulsar® Model R80 FMCW 80 GHz radar level transmitter

The Pulsar® Model R80 radar transmitter is the latest generation of Magnetrol® 24 VDC, loop-powered, non-contact radar transmitters. Utilizing Frequency Modulated Continuous Wave (FMCW) radar technology, this transmitter offers enhanced performance, proactive diagnostics, and various configuration wizards to bring simplicity to an often complex technology.

Liquid, Solid and Bulk material level measurement

• Multivariable two-wire, 24 VDC loop-powered transmitter for level, volume, or flow
• Performance not process dependent (changing specific gravity and dielectric have no effect)

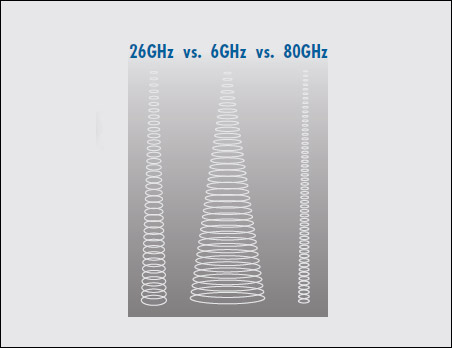

• 80 GHz operating frequency offers superior performance, smaller antennas, better accuracy and enhanced resolution
• Antenna designs up to 200°C (+400 °F), -1 to 70 bar (-14.5 to 1000 psi)
• Hygienic antenna with Tri-Clamp connections and 15 Ra surface finish
• Range up to 30 meters (100 feet)
• 4-button keypad and graphic LCD allow for convenience viewing of configuration parameters and echo curve
• Proactive diagnostics advise not only what is wrong but also offer troubleshooting tips

Pulsar® model R96- 6 GHz non-contact radar transmitter

The Pulsar® Model R96 is a loop-powered, 24 VDC, non-contact radar level transmitter. It has a longer measurement range, improved diagnostics and is easier to use than most loop-powered radar transmitters.

• Performance not process dependent (changing specific gravity and dielectric have no effect)
• 6 GHz operating frequency offers superior performance in the tougher applications of turbulence, foam, and heavy vapors
• Antenna designs to +400 °F (+204 °C)
• Range up to 130 feet (40 meters)
• Quick connect/disconnect probe coupling allows vessel to remain sealed
• SIL 2 capable with Safe Failure Fraction (SFF) = 92.7% (FMEDA available upon request)
• PACTware™ PC software interface with new improved DTM.

Pulsar® model R86 26 GHz non-contact radar transmitter

The Pulsar® Model R86 non-contact radar level transmitter is a 24 VDC, liquid level transmitters. It has a longer measurement range, circular polarization, advanced diagnostics and is easier to use than most loop-powered radar transmitters.

Non-contact radar model R82 pulse burst radar transmitter

Radar has been part of the level measurement market for more than thirty years. The early designs used in tank gauging were heavy, expensive, power-hungry and complex. Advancements in radar circuitry have evolved the modern radar transmitter so that now it is light, inexpensive, loop-powered and easy to use. The R82 is the logical extension of that evolution.

Microwave-based radar is a superior measurement technology with its ability to operate effectively in a wide range of process conditions. It has been too expensive to use as a replacement for ultrasonic transmitters in simple, daily applications...until now. The R82 radar transmitter can be considered the answer to almost every daily level measurement application imaginable.

• 24 VDC, loop-power with HART®
• Housing: Lexan® or cast aluminum
• Range: 15" (380 mm) to 40 feet (12 m) measured from process connection
• Antenna: Encapsulated horn - polypropylene or Tefzel®
• Process Temperature: -40 to +200 °F (-40 to +93 °C)
• Process Pressure: Vacuum to 200 psig (-1 to 13.8 bar)

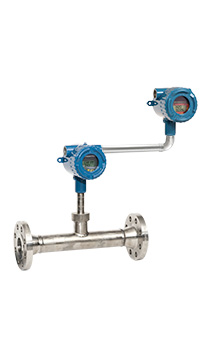

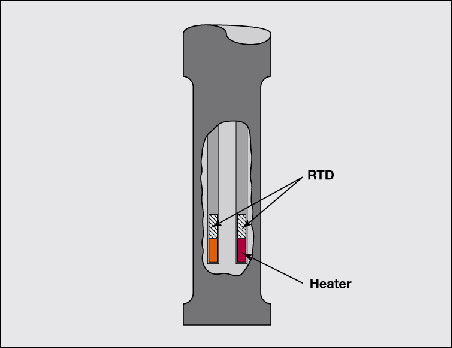

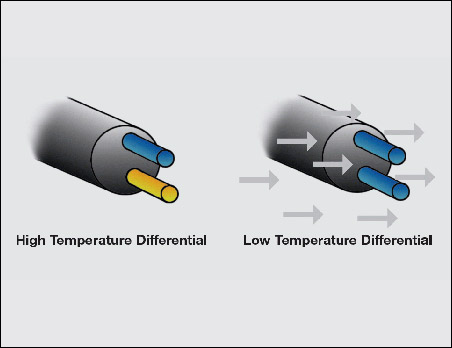

Thermatel® TA2 thermal mass flow meter

The Thermatel® Model TA2 thermal mass flow meter delivers accurate, continuous gas flow measurement for a wide range of industrial applications. Designed for easy installation and long-term reliability, the TA2 is an economical solution for monitoring and controlling gas flow to help manage energy costs and ensure compliance with environmental regulations.

The TA2 minimizes maintenance and downtime while providing dependable performance in challenging process conditions. Its heat transfer–based measurement technology offers exceptional accuracy and repeatability at low gas flow rates and pressures—where traditional differential pressure or mechanical meters may struggle.

Ideal for use in industries such as chemical processing, oil and gas, wastewater treatment, and power generation, the Thermatel® TA2 offers a low total cost of ownership, simple field calibration verification, and proven Magnetrol® quality.

Universal V Level System

The Universal V Series offers worldwide hazardous area approvals including FM, FMc, ATEX & IECEx, standard display/keypad, autoranging capabilities and improved firmware and software for a more reliable measurement.

Pro Model
The Universal V™ Pro model integrates the RF Admittance technology pioneered by Drexelbrook with the versatility of Cote-Shield™ technology that ignores coatings on the probe and measurement span of 1" to 800'. The Pro is compatible with a vast array of applications: conductive, insulating, and heavy or light coating.

Lite Model
The Universal V™ Lite model is the entry level RF Capacitance measurement system without Cote-Shield™ capabilities. Lite models can be used in non-coating conductive liquids and insulated coating applications where Cote-Shield™ is not required. In addition, the Lite model offers a measurement range up to 20' typically.

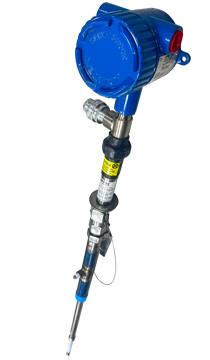

Universal V - Water Cut Monitor

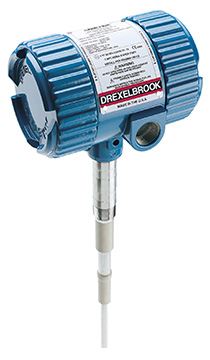

For more than 50 years, Drexelbrook has been the world leader in capacitive based water cut measurement. We offer the highest pressure and temperature ratings in the industry and our capacitive probes can handle pressures up to 1500 Psi and temperatures up to 450°F.

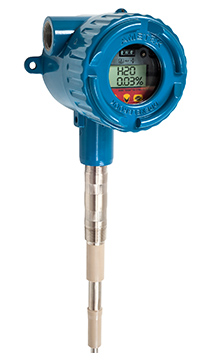

Our popular Universal V CM Series is a high quality water cut meter, also known as a water cut monitor or BS&W, with a range of 0-50% in light oil and 0-80% in heavy oil.

It is built upon the Drexelbrook expertise in RF Admittance that allows the electronics to ignore paraffin and other coatings that buildup on the probe.

The Universal V CM features a unique Cote Shield that is designed into the Universal IV CM series and enables the instrument to ignore a pre-determined length of the sensing element.

This water cut meter comes with a Perm-A-Seal sensing element that does not require epoxy coatings that wear out and require expensive servicing.

Using this water cut meter together with our HRTWin or new STExplorer PC software field configuration is possible from anywhere along the two wire loop.

The Universal V CM sensing element is selected based on pipe size, wetted parts, NACE requirement and pressure/temperature. Drexelbrook offers a wide range of probes to fit virtually any application required.

All water cut meters features a built-in LCD display and keypad and comes from the factory pre-calibrated and requires only one point validation.

The Universal V CM water cut meter is intrinsically safe and approved for Class I, Div1 hazardous locations.

Water Cut Meter - Density Compensation Module

Drexelbrook offers a Density Compensation Module (DCM) for its Universal IV™ & V In-Line Water Cut Monitors (CM). The module automatically compensates for density changes that may occur in the composition of products and reduces the calibration requirements due to those changes.

The Universal IV & V CMs are designed for high-accuracy water in oil measurement. The DCM allows the Universal IV & V CMs to maintain its stated accuracy with variations in density up to 10 API, ensuring measurement accuracy from load to load regardless of changes in product composition.

The Universal V utilizes an electrical measurement (capacitance) and correlates that to water cut (% of oil in water). Those measurements can be affected by changes in density. Density compensation is done to correct for changes in electrical properties that may impact output measurement and is particularly suitable for midstream refinery and oil pipeline operators.

Along with the optional Density Compensation Module, the Universal V CM features an in-line probe design that allows it to analyze a large representative sample of flowing fluid in real time. Its sensing element extends into the main process line, taking an average of the capacitive property of the fluid over its entire length. That ensures a smoother and more accurate response, regardless of the mixture. The monitor’s onboard electronics then computes the relationship between capacitance change and water cut.

Atlas™ magnetic level indicator

The AtlasTM is our standard, high performance magnetic level indicator. The ATLAS is a single-chamber design, with either 2", 2.5", or 3" chamber diameter, as required by the application. There are twelve basic configuration styles, including top mount models.

ATLAS magnetic level indicators are produced in a wide range of materials of construction, including exotic alloys and plastics. We also offers one of the most complete selections of process connection types and sizes for level measurement.

The ATLAS unit may be equipped with a variety of level transmitters and switches, as well as flag and shuttle indicators with or without stainless steel scales. This enables the ATLAS magnetic level indicator to be a complete level and monitoring control.

• Broad range of chamber styles
• Fabricated non-magnetic chambers
• ASME and DIN flanges
• Precision manufactured float
• Flag or shuttle type indicator

Vector™ magnetic level indicator

Vector is a rugged, reliable and cost-effective Magnetic Level Indicator (MLI). Suitable for a variety of installations, Vector is precision-engineered and manufactured to ensure a long service life. It's built to the highest quality standards and is equipped with a high-visibility indicator which has a shatter-resistant viewing window. The Vector MLI virtually eliminates maintenance and is a great replacement for hard-to-see, leaky, sight and gauge glass indicators. Optional switches and transmitters are available to provide alarm points and level control.

• Rugged, industrial-grade construction
• Field adjustable visual indicator for convenient viewing
• Continuous measuring range up to 216 in. (549 cm.)
• Compatible with electronic point switches and continuous level transmitters
• Media specific gravity as low as 0.54

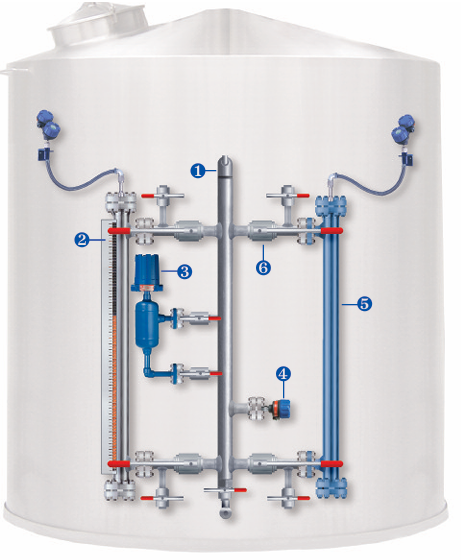

Modular Instrumentation Bridle

At a time when cost-effective level control solutions are paramount in the process industry, the Orion Instruments brand from AMETEK LMS introduces the Modular Instrumentation Bridle (MIB). Our unique approach to complementing a vessel with the appropriate instrumentation and control technologies goes beyond simply offering bolt-on level, flow, high/low level cutoff switching, etc. to a multitude of process connections.

At AMETEK LMS, we consider all level control needs as they affect overall costs of the project as well as performance of the specified measurement technologies. The engineering and design aspects of any vessel, along with how best to incorporate the instrumentation package, substantially reduces cost and improves performance in a variety of areas including vessel design, lower construction costs, installation and commissioning, reliability and long-term maintenance.

A New Perspective on the Benefits of a Bridle

SAVINGS:
Reduces the number of process connections required on an ASME vessel, in turn, lowering engineering, design and construction costs of the vessel.
SAFETY:
Transfers potential leak points from costly, direct-to-vessel connections to the less expensive MIB. The MIB can be removed, repaired, and pressure tested independent of the vessel.
SIMPLICITY:
Simplifies the design and implantation of more comprehensive level and control solutions on critical applications/vessels with a minimum number of process connections.
ISOLATION:
Isolates the level measurement from vessel process dynamics, internal obstructions, and fill/drain lines providing a much more stable indication, while at the same time minimizing startup and commissioning time.

Displacer switches – single, dual and tri-switch series

Single-Stage Switches

Series A10 displacer type level measurement units are wide differential units calibrated to actuate as a liquid level reaches a given displacer and to deactuate when the level reaches a second displacer. Single stage, wide differential displacer switches are factory calibrated yet field-adjustable to operate over a wide level differential band.

The minimum differential band is approximately 6 inches (152 mm) in water and varies somewhat with liquid specific gravity. The maximum differential is determined by the length of the displacer suspension cable. Series A15 units are calibrated to operate over a narrow level differential band and are ideally suited for liquid level alarm applications on either high or low level.

Dual-Stage Switches

Series B10 displacer type level measurement units are wide differential tandem switches that are factory calibrated with a choice of several switch operating sequences designed to meet virtually any application.

Series B15 units are narrow differential tandem switches that are factory calibrated. Each switch actuates at a different level.

Tri-Stage Switches

Series C10 displacer type level measurement units utilize three electrically separate control signals in a selected sequence in response to liquid level changes.

Series C15 units are wide differential switches with a choice of several operating sequences combining wide and narrow level differential and are factory calibrated.

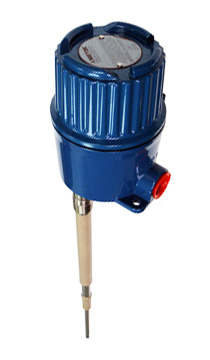

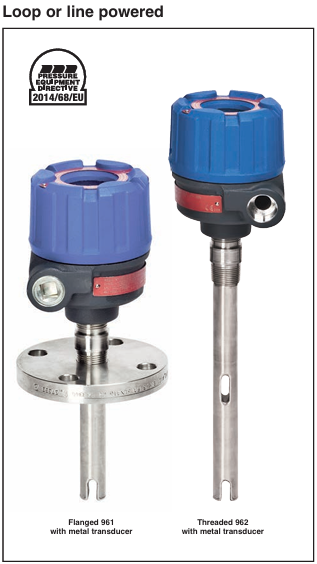

Echotel® 961/962 single- and dual-point ultrasonic level switches

Increasing demands for compliance with safety systems and overfill protection have mandated more reliable point level measurement. Echotel® Models 961 and 962 ultrasonic level switches meet these demands with advanced transducer designs, extensive hazardous location approvals, and a new self-test technology.

Single Point

Dual Point

• No calibration
• Loop current or relay output
• Advanced diagnostics: sensor, electronics and electrical noise interference
• LED indication for alarm status and error
• Pushbuttons for manual testing of output
• Metal and plastic sensors
• Adjustable time delay for turbulent aerated liquids
• Pulsed signal technology
• Extensive FM, CSA and ATEX explosion proof and intrinsically safe approvals
• Suitable for Safety Integrity Level (SIL) 2 loops

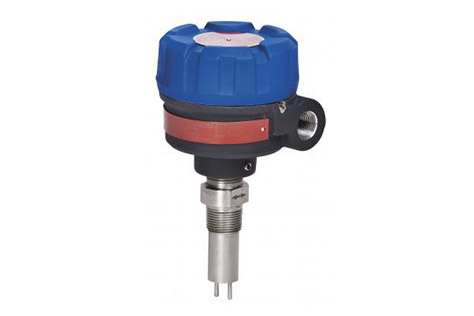

Echotel® 910 ultrasonic level switch

Echotel® Model 910 ultrasonic level switches utilize ultrasonic contact technology for measuring level in clean liquid applications. These integrally mounted level switches offer either a 8-amp DPDT gold flash relay or a 5-amp DPDT hermetically sealed relay. The 910 level switch is often installed into seal pots found in refineries and chemical plants.

• Available in a wide variety of lengths up to 130 inches
• NPT, BSP or flanged mounting
• 10-amp DPDT gold flash relay or a 5-amp DPDT hermetically sealed relay

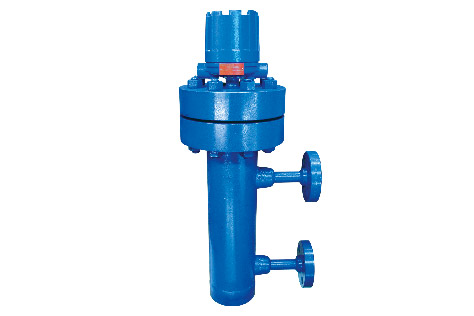

High-pressure external cage liquid level switch

High Pressure Liquid Level Switches are displacer actuated units, utilizing a single switch mechanism for level alarm or control functions. These units are designed for service pressures up to 5000 psig (345 bar) and liquids with specific gravities of 0.40 and above.

• Fabricated carbon steel cages
• Model B74 available with 304 or 316 stainless steel cages as standard
• Inconel displacer spring and stainless steel trim
• Stainless steel displacers
• Sealed or flanged cages
• Pressures to 5000 psig (345 bar)
• Temperatures to +750 °F (+400 °C)
• Specific gravity as low as 0.40

Model F10 vane-actuated mechanical flow switch

Magnetrol® flow switches provide dependable flow control for a wide range of industrial applications, detecting the presence or absence of flow in horizontal pipelines with exceptional accuracy. Designed for reliability and long service life, these switches help protect critical equipment and ensure efficient system performance.

Model F10 flow switches are vane-actuated units engineered for use with both gas and liquid flow in 2-inch through 10-inch flow lines. Their rugged construction makes them ideal for demanding environments such as chemical processing, oil and gas, water treatment, and power generation. With proven Magnetrol® quality, F10 flow switches offer a cost-effective way to monitor process flow, prevent damage from low-flow conditions, and maintain consistent system operation.

• Field adjustable
• Negligible pressure drop
• Process pressures to 1000 psig (69 bar)
• Process temps. to +450°F (+230°C)
• Actuation on increasing or decreasing flow
• Standard flow vanes for 2” through 10” flow lines
• Special sensing elements for non-standard or high flow applications

Model F50 disc-actuated mechanical flow switch

Magnetrol® flow switches are highly reliable flow control solutions utilized to sense the presence or absence of flow in horizontal pipelines. Disc-actuated Model F50 switches are in-line type used for sensing clean liquids in 2 inch or smaller line sizes.

• No calibration required
• Bronze or stainless steel construction
• Process pressures to 1150 psig (79 bar)
• Process temperatures to +750°F (+400°C)
• Actuation on increasing or decreasing flow
• In-line mounting
• Bodies for flow lines from ¾” to 2”

Models C24/C25, boiler, and water column liquid level switches

Models C24/C25, boiler, and water column liquid level switches are single- or multi-switch units that offer versatility and reliable operation in a variety of applications. Available with up to three switch mechanisms for level alarm, control, and shutdown functions, the boiler and water column controls are designed for use in steam boiler applications while the Models C24 and C25 are for general use.

• Easy inspection of float chamber through removable head
• Cast iron or fabricated steel float chambers
• 316 and 316L stainless steel floats
• Brass chamber liner standard in Models B24, B25, W24 and W25
• Right or left hand water column mounting
• Process temperature to +1000º F (+540º C)
• Working steam pressure to 600 pounds

Series B73 and series 75 sealed external cage liquid level switches

Series B73 and series 75 external cage type level switches are completely self-contained units designed for side mounting to a tank or vessel with threaded, socket weld or flanged pipe connections. These float-actuated controls have proven their reliability in process control for decades.

• Carbon steel or stainless steel welded float chamber
• Service pressures up to 2240 psig (154 bar)
• Process temperatures up to +1000 °F (+538 °C)
• Specific gravity ratings as low as 0.32
• Available switch styles including dry contact, hermetically sealed and pneumatic
• Single or multiple switch mechanisms available
• Optional high temperature insulation available
• Choice of switch mechanism: ◦ Dry contact ◦ Hermetically sealed ◦ Pneumatic
• Choice of switch mechanism enclosure: ◦ TYPE 4X/7/9 Class I, Div. 1, Groups B, C & D, polymer coated aluminum ◦ NEMA 1, carbon steel for pneumatics
• Choice of tank connection: ◦ 1", 1½" or 2" NPT ◦ 1", 1½" or 2" flanged side/side ◦ 1", 1½" or 2" flanged side/bottom ◦ 1", 1½" or 2" socket welds

Flanged external cage liquid level switches

Flanged external cage type level switches are completely self-contained units designed for side mounting to a tank or vessel with threaded, socket weld or flanged pipe connections. In hundreds of industrial applications throughout the petroleum refining, petrochemical production and power generation markets, these switches have demonstrated their worth through reliable and repeatable service.

• Carbon steel float chambers
• Stainless steel float and trim
• Service pressures up to 900 psig (62 bar)
• Process temperatures to +1000 °F (+540 °C)
• Specific gravity ratings as low as 0.34
• Chamber internals accessible via flange top
• Single or multiple switch mechanisms
• 1", 1½", or 2" tank connections available in either NPT, socket weld, flanged side/side or flanged side/bottom construction

Thermatel® TD1/TD2 thermal dispersion switches

The Thermatel® Model TD1/TD2 switch is utilized in flow, level and interface applications. The TD1/TD2 is popular for pump protection, specifically low flow detection with the unique spherical tip design, to prevent pumps from running dry. Continuous diagnostics with fault indication, temperature compensation and fast response time make the TD1/TD2 the latest in thermal dispersion technology.

• Temperature compensated to provide repeatable alarm under varying process temperatures
• Continuous diagnostics detect sensor fault
• Non-linear mA output signal can be used for trending, diagnostics and repeatable flow/level indication
• Detects minimum flow or presence / absence of flow
• Excellent low flow sensitivity
• Simple calibration / installation

Thermatel® TG1/TG2 flow/level/interface switches with din rail

Thermatel® TG1/TG2 provides a two-wire, intrinsically safe circuit between the probe and remote din rail enclosure. The flow/level/interface switches provide a new level of performance and reliability not found in previous switches. Continuous diagnostics with fault indication, narrow hysteresis and fast response time make the TG1/TG2 the latest in thermal dispersion switch technology.

• Easy field calibration - pre-calibration fro factory on request
• Variable flow or flow / no flow detection of gases and liquids
• Excellent low flow sensitivity
• Continuous diagnostics detect sensor fault
• mA output provides repeatable indication of flow rate and fault detection
• Process conditions up to +850 °F (+450 °C) and 6000 psi (413 bar)

Model J52 refrigerant liquid level switch

The Model J52 Refrigerant Level Switches are float actuated units designed for use on liquids with 0.60 specific gravity and above.

• Temperatures from -50 to +100 °F (-45 to +40 °C)
• Maximum working pressure to 400 psig (28 bar)
• Housing is completely sealed against entrance of moisture
• Conduit seal with 24 in. (610 mm) lead wires
• Welded float chamber assembly

Z-Tron IV Level Switch

ThePoint - Line Powered Level Switch

ThePoint - Loop Powered Level Switch

ThePoint Loop Powered two wire level switch provides a current output and has hazardous area approvals making it a good choice for most of your point level application requirements. ThePoint level sensing device offering is suitable for most temperature, pressure, and material types.

3A approved Sanitary Sensor Data sheet

ThePoint - Retractable Sensors

IntelliPoint RF - Line Powered Level Switch

The IntelliPoint Line Powered level probe provides a level swtich with relay output and “On-Board” self-diagnostics to ensure reliability and level sensing elements for a wide variety of temperatures, pressures, and materials. The IntelliPoint carries hazardous area approvals to provide a solution to critical point level applications.

IntelliPoint RF - Loop Powered Level Switch

The IntelliPoint Loop Powered Two Wire provides a capacitance probe level switch with current output and “On-Board” self-diagnostics to ensure reliability and level sensing elements for a wide variety of temperatures, pressures, and materials.

The IntelliPoint carries hazardous area approvals to provide a solution to critical point level applications.

• Supply voltage: 13-30 VDC
• Output: 8mA (Alarm), 16mA (Normal), 22mA (Fault) or 8mA (Normal), 16mA (Alarm), 5mA (Fault)
• 3A approved probes suitable for sanitary applications

Safety IntelliPoint - Loop and Line Powered Level Switch  SIL2

TF 100 Series Vibrating Level Switch

TF-100 Series is a vibrating level switch with TF-L relay output and TF-P transistor output or with TF-T current output.

This level switch is designed for reliable indication of clean liquids and light slurries. It is available with Relay, Current, and PNP outputs that can be set to indicate alarm on either high level for spill prevention, or low level for run-dry protection.

The TF-100 Series comes in a compact design with sensor lengths as short as 1.9" (47mm). The compact design makes this level switch ideal for limited space installation.

It carries FM hazardous area approvals and is available in sanitary models for pharmaceutical, food and beverage applicaitions.
