mobiLink -  Mobile & USB Interface for HART, FOUNDATION fieldbus, PROFIBUS PA

현장 계기의 시운전 매개변수화 및 유지보수를 위한 Bluetooth 및 USB 인터페이스

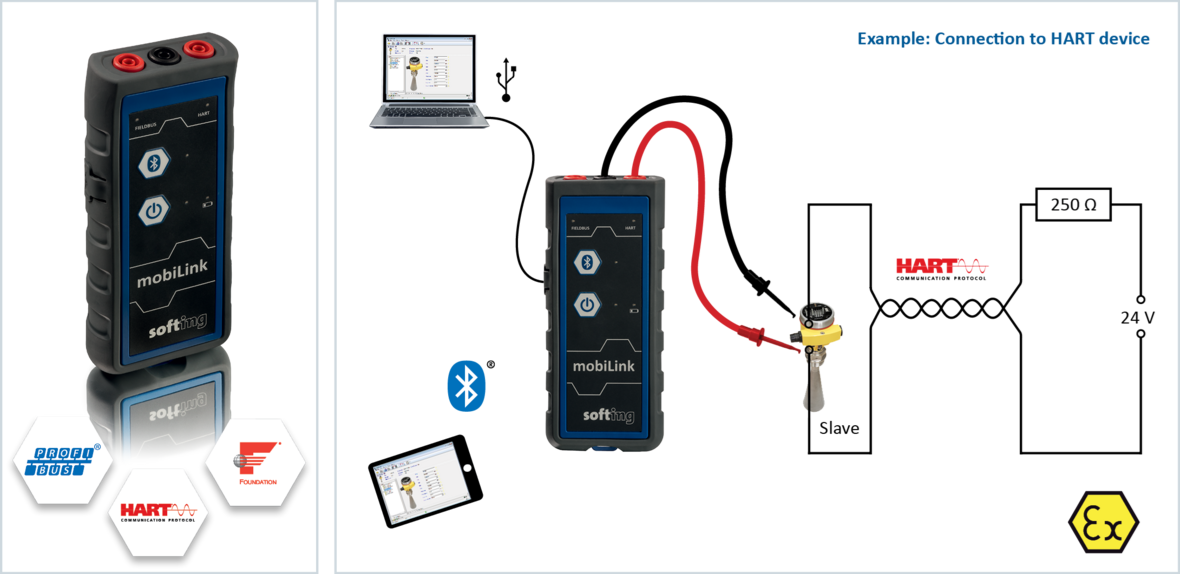

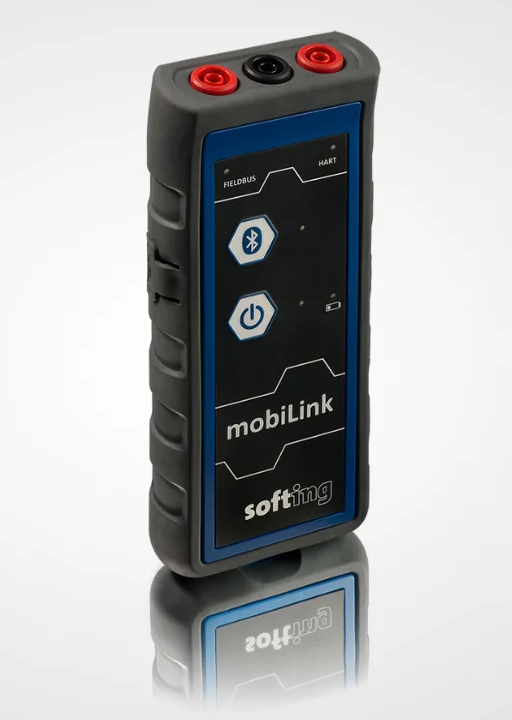

mobiLink는 HART, FOUNDATION Fieldbus 및 PROFIBUS PA용 모바일 및 USB 인터페이스입니다. Bluetooth 및 배터리 작동을 통해 태블릿 및 스마트폰과 같은 휴대용 호스트 장치와 함께 사용할 수 있습니다. mobiLink는 FDT 프레임 애플리케이션 및 기타 주요 엔지니어링 도구와 호환되므로 다양한 애플리케이션에서 사용할 수 있습니다. 또한 위험지역 환경에도 적합합니다(위험존 1 에 대해 IECEx , 국내 EX Proof  KC 인증 및 KCC전파인증 획득품).

Multi protocol operation

• HART Master, Foundation fieldbus Host and PROFIBUS PA Master included in one device
• Temporary attachment to fieldbus segments or HART loops for individual interaction with field devices
• Fully compliant protocol implementations allow for interference-free access to running plants

Host communication via Bluetooth or USB

• Built-in batteries and Bluetooth communication enable use of handheld host devices like smart phones and tablets
• USB interface for bench host operation

Support of FDT Frame Applications and major Engineering Tools

• PACTware FDT Frame Application and HART Communication DTM included
• Communication DTM for Foundation fieldbus and PROFIBUS PA (optional)
• Foundation fieldbus configuration tool (optional)
• Application Program Interface for integration into Engineering Systems

Suitable for use in hazardous areas

• IECEx, EX and KC approval for Zone 1, NEC500 Cl. Div.1
• Suitable for connection to intrinsically safe circuits
• Suited for harsh environment

mobiLink Power -  Mobile & USB Interface for HART, FOUNDATION fieldbus, PROFIBUS PA

현장 계기의 시운전 매개변수화 및 유지보수를 위한 Bluetooth 및 USB 인터페이스

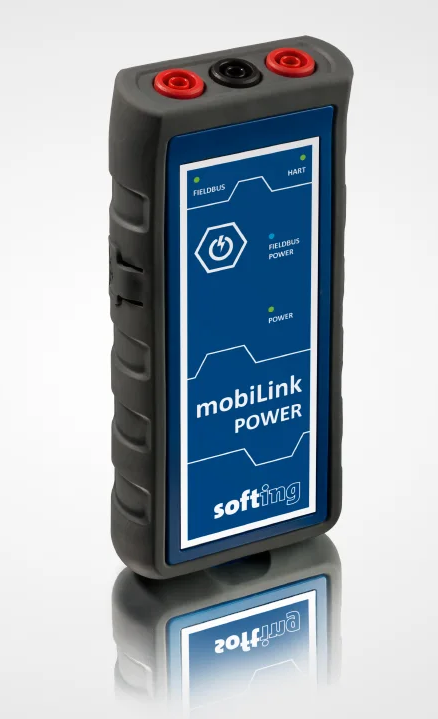

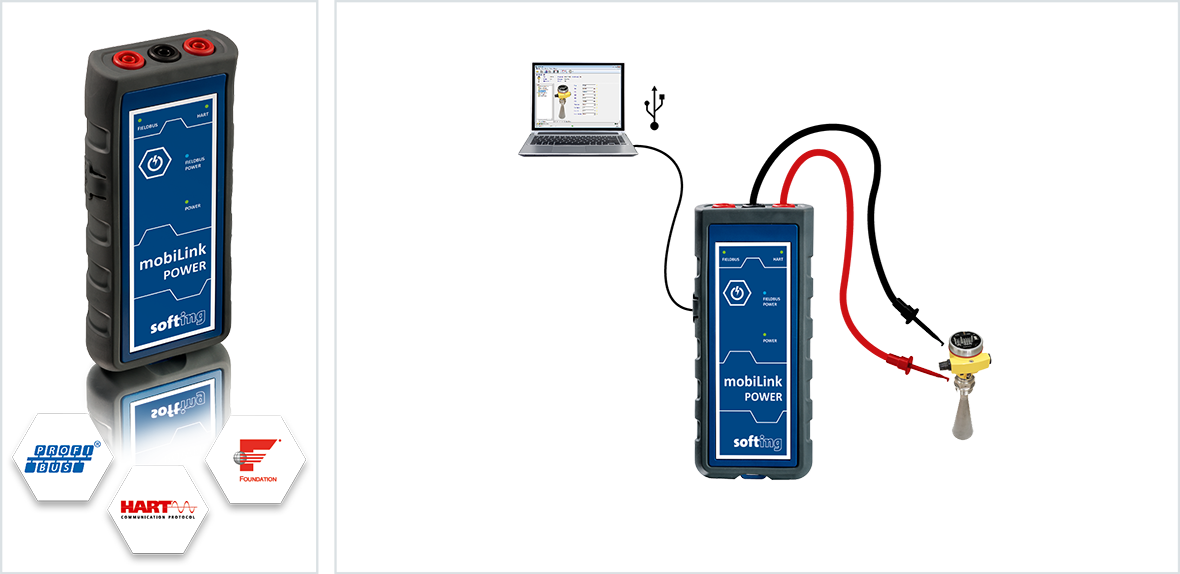

mobiLink Power를 사용하면 운전중인 버스 인프라 내에 연결되어 있지 않아도 현장 계기에 직접 연결할 수 있습니다. 통합 전원 공급 장치를 사용하면 현장 계기의 시운전 및 유지 관리를 위한 외부 전원 공급 장치 및 종단 저항과  같은 추가 구성 요소가 필요하지 않습니다.

또한 위험지역 환경에도 적합합니다(위험존 1 에 대해 IECEx , EX 인증).

Single interface for the major Process Automation protocols

• HART Master, Foundation Fieldbus Host and PROFIBUS PA Master included in one device
• Parametrization and configuration of field devices
• Diagnostics and condition monitoring

Provides the power supply for the field devices

• Eliminates the need for an additional power supply and power conditioner for workbench applications

Support of FDI, FDT frame applications and major engineering tools

• Compatible with Emersons instrument inspector with the FDI communication server
• PACTware FDT frame application and HART communication DTM included
• Communication DTM for Foundation Fieldbus and PROFIBUS PA (optional)
• Foundation Fieldbus configuration tool (optional)
• Application Program Interface for integration into engineering systems

Unlimited flexibility in use

• mobilink Power draws power from the connected computer via USB

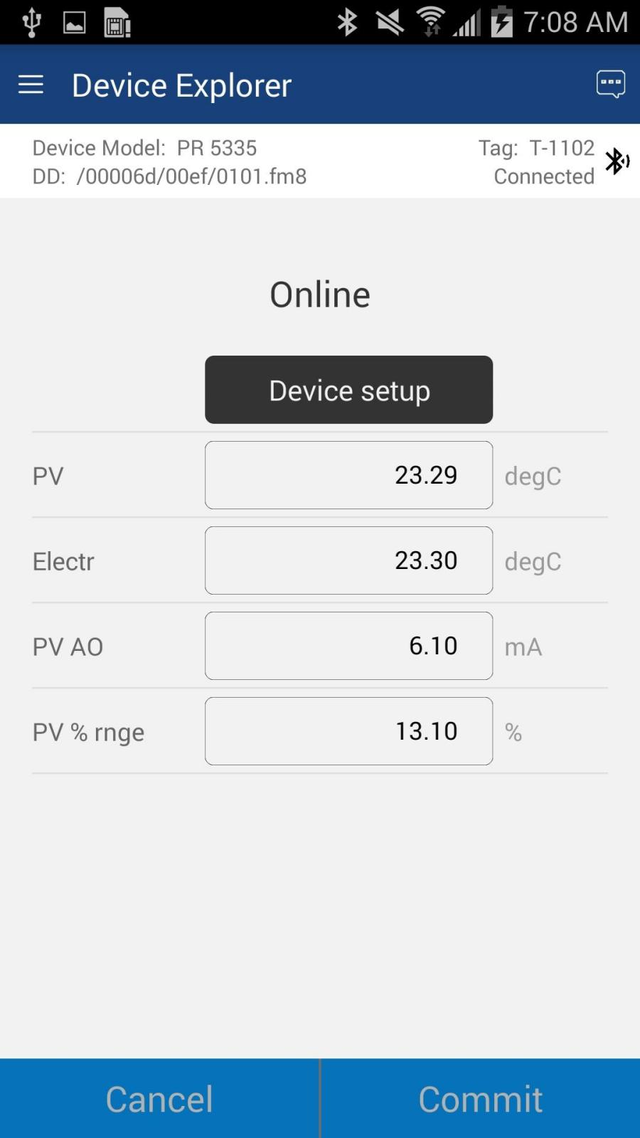

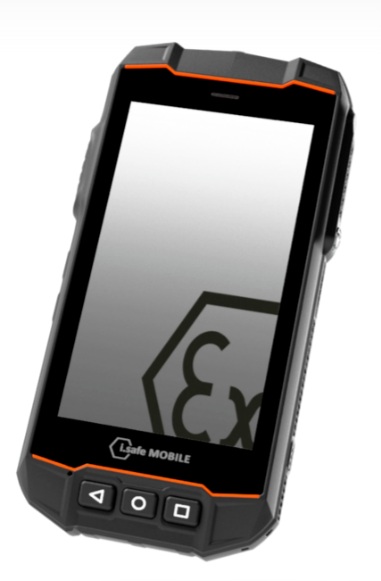

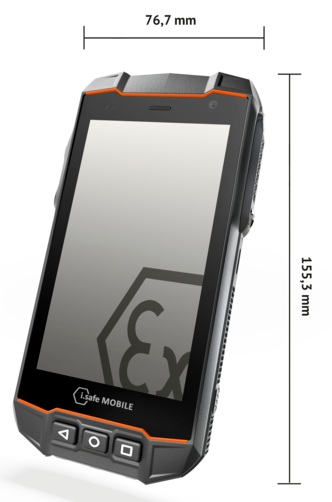

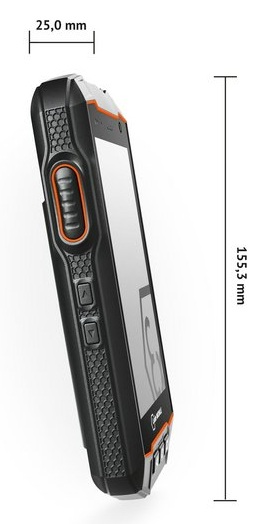

DEVCOMDROID

Features and Benefits:

• Comes with ALL the latest registered Device Descriptors (DD’s) from the FieldComm Group (FCG)
• Complete access to all features of the device DD including Methods
• Monitor PV, Multi-variables, and Device Status
• View and edit device Variables
• Easy to use Android interface
• Save device configurations as text and PDF files for documenting the device
• Write saved device configurations to devices
• Perform Calibration Checks
• Save calibration and device configuration data to the cloud
• Supports HART 5, 6, 7, WirelessHART devices, and HART-IP
• Supports English, German, French, Spanish, Portuguese, Swedish, Russian, and Chinese languages
• 1 Year of free DD library and program updates
• No tag limits
• Wireless convenience

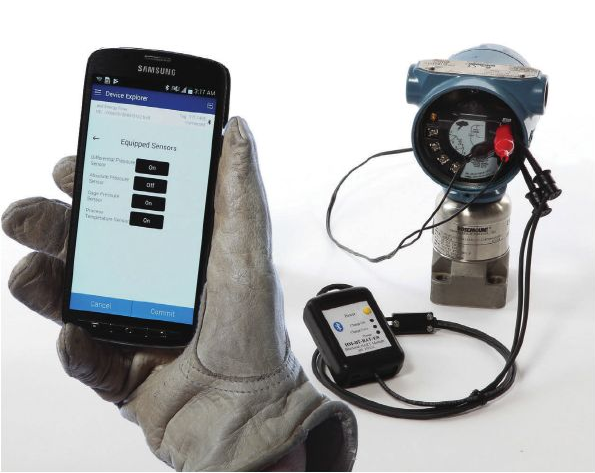

• Complete HART communicator that can fit in your pocket!
• 1 Year warranty

• Complete Device Descriptor (DD) library
• One year Update Subscription (SUB-1YR)

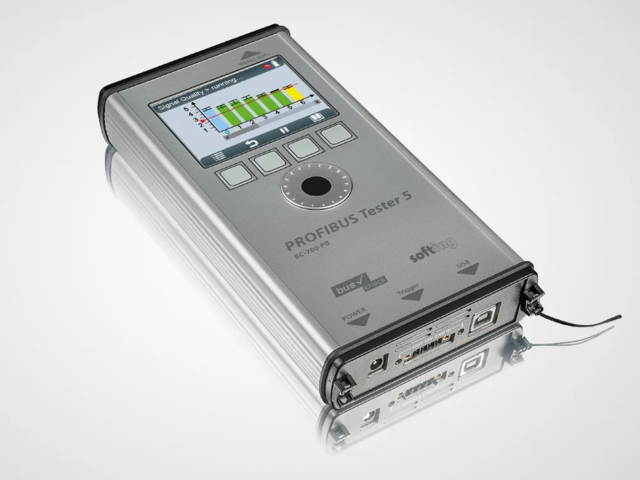

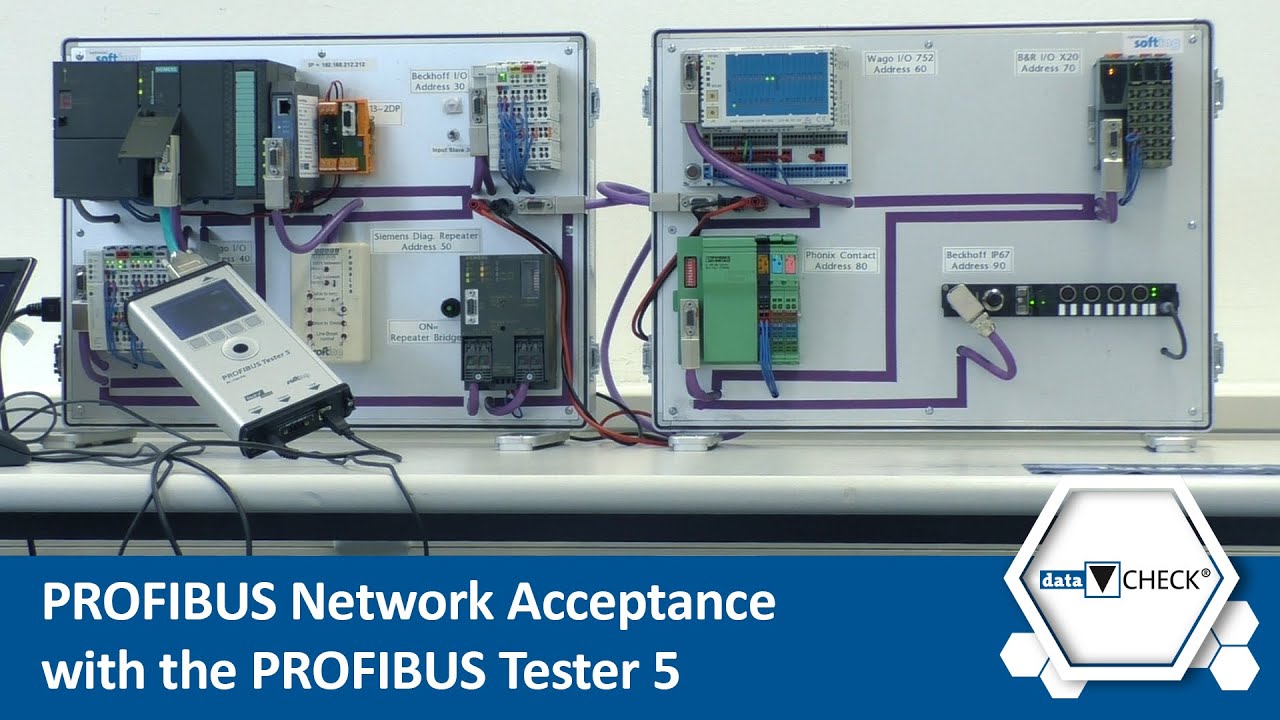

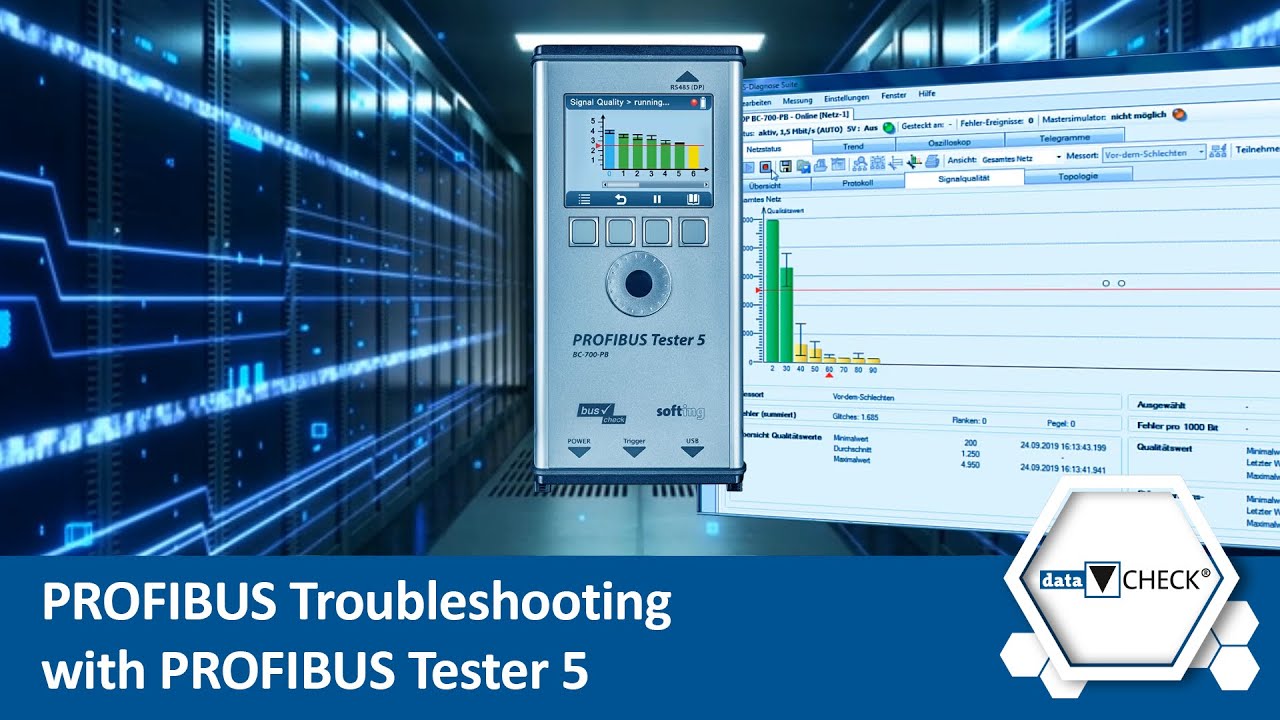

PROFIBUS Tester 5 (BC-700-PB) -  Mobile & USB Interface for HART, FOUNDATION fieldbus, PROFIBUS PA

Supports PROFIBUS cable testing, physical signal & protocol analysis

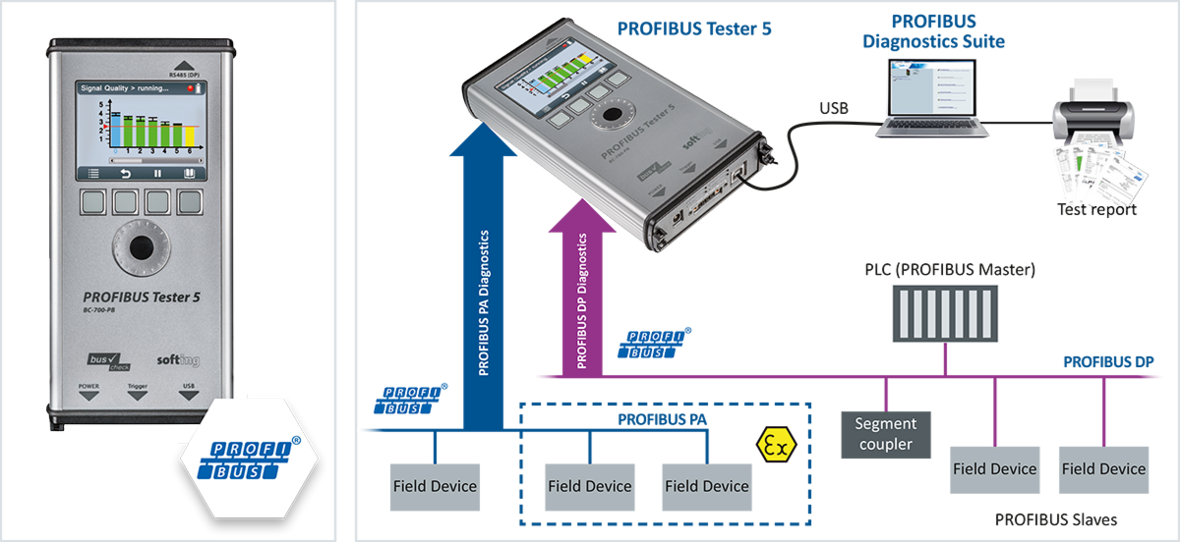

PROFIBUS 테스터 5(BC-700-PB)는 케이블 테스트, 신호 측정 및 PROFIBUS 네트워크 통신 분석을 위한 강력한 PROFIBUS 진단 및 문제 해결 도구입니다. 배터리로 구동되며 그래픽 디스플레이를 제공하므로 독립형 모드에서 작업할 때 빠른 결과를 얻을 수 있습니다. 선택적으로 PROFIBUS PA 네트워크도 분석할 수 있습니다. 또한 PROFIBUS Tester 5는 고급 분석을 위한 테스트 결과 내보내기를 지원합니다.

Test PROFIBUS Cable, Signals, and Data, All-In-One Handheld Tester

• Combination of PROFIBUS signal tester, oscilloscope, protocol analyzer, master simulator and cable tester functionality in a single handheld diagnostic tool
• Includes stand-alone mode plus extended PC-based diagnostics
• Suited for PROFIBUS installation, setup, commissioning, documentation, acceptance testing, network optimization, preventive maintenance, troubleshooting as well as laboratory tests
• Ideal for first time users as well as for PROFIBUS specialists

Highly Mobile PROFIBUS Tester for Testing Even Without a Laptop

• Battery-powered operation; testing while unplugged reduces risk of ground loops
• Graphical display provides easy-to-understand presentation of test results
• Comprehensive network tests are built-in to PROFIBUS Tester 5 without requiring a laptop PC

Enhanced Diagnostic Features in the Analytical Software

• Many additional features for executing, analyzing and managing PROFIBUS tests (Trend, Topology Scan, Master Simulator, Oscilloscope, Frame Analyzer)
• Quick Test and User-Controlled Test for easy network status assessment at the push of a button
• Generation of test reports describing the actual status of the PROFIBUS installation

Optional Measuring Adapter for MBP (Manchester Coded Bus Powered) Signals

• Specific signal analysis supporting MBP Physics (feeding voltage, signal deviation, signal polarity, bitrate divergence)
• Complete protocol analysis directly at the PROFIBUS PA segment

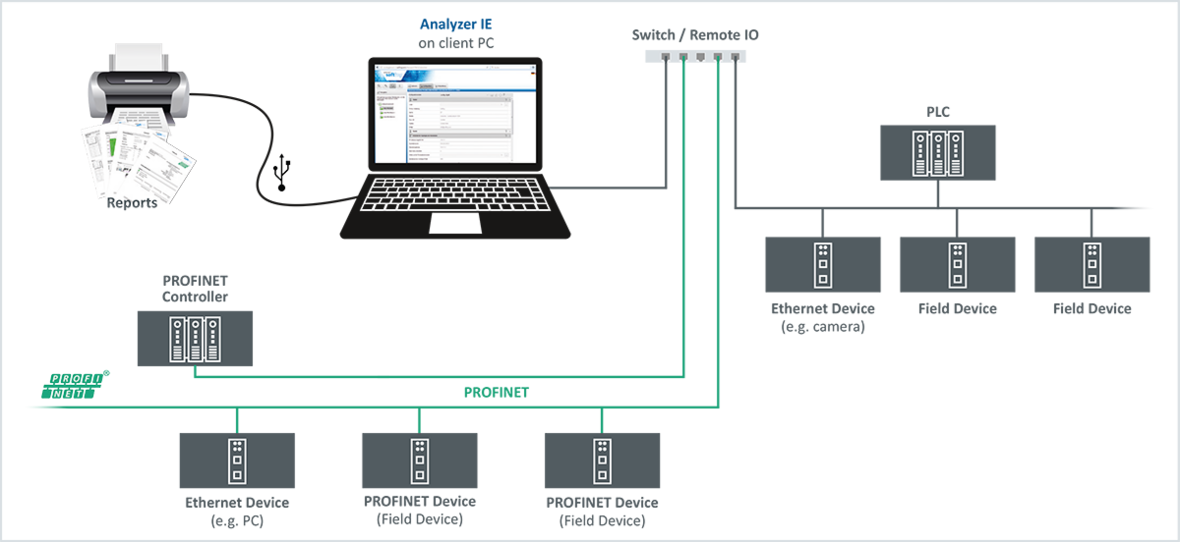

Analyzer IE

Software for Mobile Diagnostics and Acceptance Testing of Industrial Networks

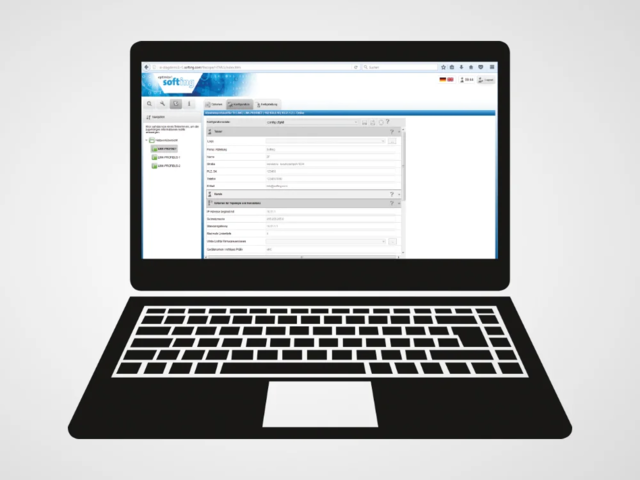

Analyzer IE is a comprehensive software solution for acceptance testing and efficient troubleshooting of Ethernet-based industrial communication. In a PROFINET environment, the mobile diagnostic tool generates standardized acceptance reports in accordance with the recommendations of PROFIBUS & PROFINET International (PI), making it an easy-to-use product that is tailored to the needs of plant suppliers, maintenance personnel as well as service providers.

Overview

Comprehensive Functionality

• Diagnostics list, error statistics, network statistics
• Enhanced flexibility by supporting online as well as offline mode
• Generation, analysis and handling of diagnostic data such as graphical topology, inventory list and reference measurements, also for standard Ethernet components (eg PCs, camera systems)

Automated Generation of Acceptance Test Documents

• Time saving by automatically created test reports
• Flexible definition of acceptance criteria
• Transparent reporting by following PI guidelines

Tool Addressing Complete Plant Lifecycle

• Data on network configuration, network communication and diagnostic messages
• Error identification for effective troubleshooting (e.g. based on inventory list of network devices)
• Chance to support exchange of general project information between end users, EPC contractors, system integrators and maintenance service providers
• Seamless integration with Softing diagnostics per-manent monitoring solutions TH SCOPE and TH LINK

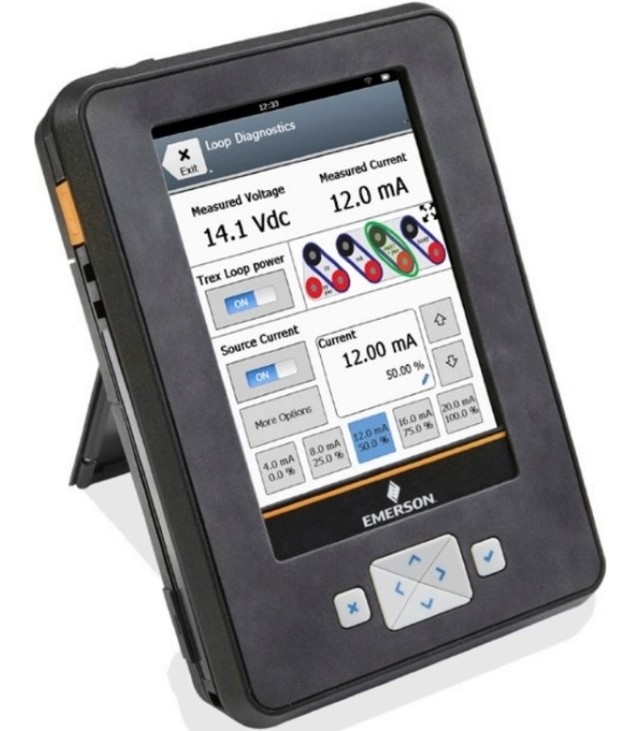

Features and Benefits:

• HART and Foundation Fieldbus communication protocols
• 5.7" / 14.5cm colour VGA touchscreen
• 32GB extended flash memory
• 800MHz ARM Cortex A8 / NXP processor
• Rechargeable lithium-ion power module
• -20 to +55C operating temperature range
• IP54 rated, dust and water resistant housing

• AC power adapter
• USB cable
• Leads set with connectors
• Hand strap
• Quick start guide
• ValveLink mobile application
• Instruction manuals
