AC Power Transducers
Use these power transducers to schedule maintenance, identify inefficiencies, cut energy use, and prevent expensive damage to a load device like a motor, pump, heater, or mixer by accurately monitoring AC power use and trends.
MODEL | DESCRIPTION | INPUT | OUTPUT | POWER | FEATURE | ||
|---|---|---|---|---|---|---|---|

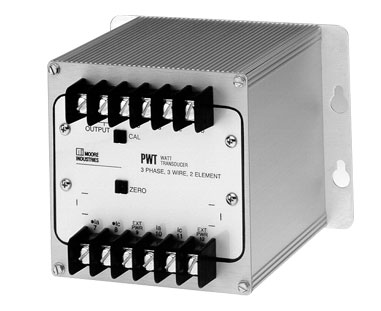

 | PWT, PWV & PVT | AC Power Transducers | 69 ac - 600 ac , 0 - 25A | -1 ~ 1mA, -10 ~ 10mA, 4-20mA, 4-20mAB, 1-5V | PWT : Watt Transducer PVT : VAR Transducer PWV : Watt, VAR Transducer | DATA SHEET | |

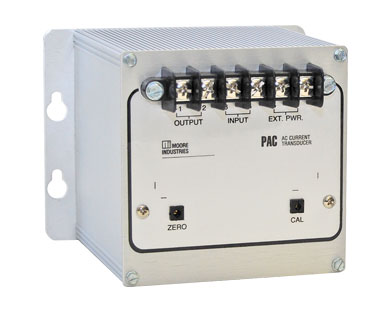

 | PAC | AC Current Transducers | 1A, 2A, 5A, 10A, 25A | 0-1mA 0-20mA (5A only) | Self Power | DATA SHEET | |
| 4-20mA, 1-5V | Auxiliary Power | ||||||
| PAV | AC Voltage Transducers | 0-90AC, 0-150AC, 0-300AC, 0-600AC | 0-1mA | Self Power | |||
| 90-150AC, 100-140AC, 110-130AC, 180-300AC, 200-280AC, 220-260AC | 0-1mA, 4-20mA, 1-5V | ||||||
| 0-90AC, 0-150AC, 0-300AC, 0-600AC | 4-20mA, 1-5V | Auxiliary Power | |||||

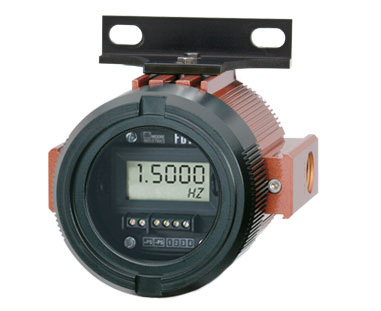

 | FDY | PC-Programmable Frequency-to-DC Transmitter with Display | PRG : 0.02-30Vac, 0.1-30Vdc 10-250Vac | 4-20mA | 10-42dc, 10-30dc IS option | FMEDA (option) | DATA SHEET |

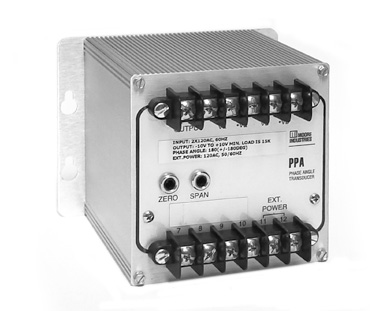

 | PPA | Phase Angle Transducer | 0-69AC, 0-120AC, 0-240AC, 0-460AC, 0-600AC 1A, 2A, 5A, 10A, 25A 2x0-69AC, 2x0-120AC, 2x0-240AC, 2x0-460AC, 2x0-600AC | 4-20mA, 4-20mAB, 4-20mALEAD, -1~1mA, 0-1mAB | Angle Factor Phase Angle : 30, 45, 60, 90, 180 Power Factor : 0, 0.3, 0.5, 0.7 | DATA SHEET |
