Remote I/O and RTUs

Remote I/O and RTUs eliminate expensive T/C and RTD extension wire and other point-to-point wires by sending temperature measurements, process monitoring and control signals between the field and control room on one digital communication link.


MODEL
DESCRIPTION
INPUT
OUTPUT
POWER
FEATURE


NCSNCS NET Concentrator System® Process Control and Distributed I/O
T/C, RTD, Ohm, contact, Current, VoltageAO, DO, Modbus, Ethernet20-30dc
DATA SHEET
TCS
Temperature Concentrator System™ Multi-Channel Transmitter
RTD, T/C,
0-4,000ohms,
-50 to +1000mV
HART15-42DC,
15-30DC (IS option)
Temperature Multiplexer SystemDATA SHEET
HCSHART® Concentrator System HART-to-MODBUS RTU Converter
HARTMB485,
MB232		9-30DCModbus RTUDATA SHEET

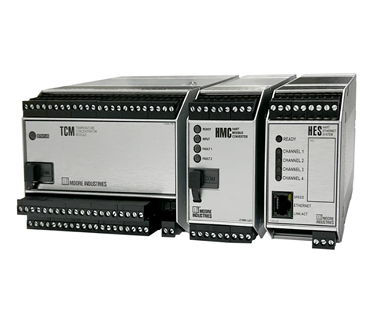

HESHART® to Ethernet Gateway System
HARTEthernet9-30dc1ch HART, 4ch HARTDATA SHEET

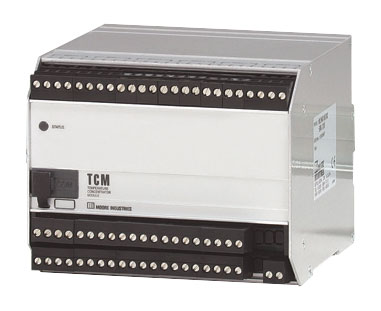

TCM16 Channel Temperature Concentrator Module - Used with HMC and HES
RTD, T/C,
0-4,000ohms,
-50 to +1000mV
HART
15-42DC,
15-30DC (IS option)
Temperature MultiplexerDATA SHEET
TMZMODBUS RTU Single and Dual Channel I/O Modules

T/C, RTD, mV, Ohm, Current, Voltage
Modbus RTU (RS485)
24dcHLPRG : Current, Voltage
TPRG : mV, T/C, Ohm, RTD
2 PRG : Dual Inputs
DATA SHEET

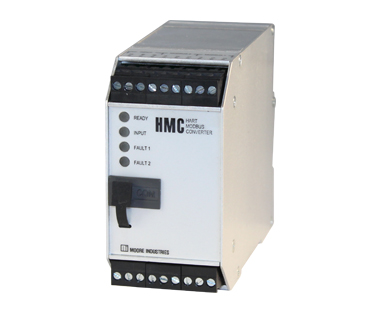

HMCHART-to-MODBUS RTU Converter - Used with TCM
HARTModbus RTU (RS485)
24dc
(20-30dc)
DATA SHEET

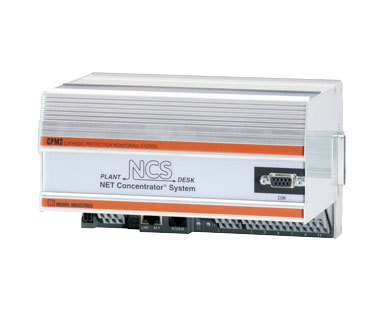

CPMS
Cathodic Protection Monitoring System
4 rangeable cathodic protection monitoring channels with 4 discrete (contact closure) input channels
Dual MODBUS RTU (RS-485), One Ethernet (MODBUS/TCP)
20-30 dc,
90-260 Vac
DATA SHEET

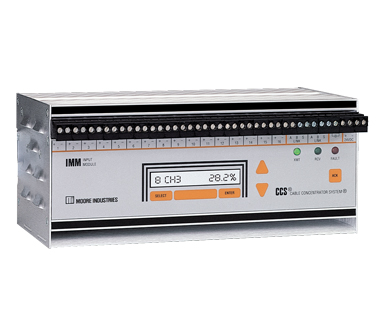

CCS
Cable System Peer-to-Peer I/O System
16ch AI, DIMB485
16ch AO, DO		18-30 dc
DATA SHEET
