Functional Safety Solutions
Moore Industries Functional Safety Solutions provide reliable and SIL-certified instrumentation designed to enhance safety and compliance in critical process applications. The SIL 2 and SIL 3 capable FS Functional Safety Series instruments are third-party certified by exida to IEC 61508 standards designed and built for use in Safety Instrument Systems.
MODEL | DESCRIPTION | INPUT | OUTPUT | POWER | FEATURE | ||
|---|---|---|---|---|---|---|---|
 | SLA | Functional Safety Multiloop Logic Solver and Alarm | 6 inputs ; mV, T/C, RTD, Ohm, Current, Voltage | 4 SPDT relays, 3 AO (option) RS485 Modbus (option) | 10-30 dc | SIL2/3 (SC) Logic Solver | DATA SHEET |
 | STA | Functional Safety Limit Alarm Trip | mV, T/C, RTD, Ohm, Current, Voltage | 3 SPDT relays, 1 AO (option) | 21.6-375Vdc or 90-260Vac | SIL2/3 (SC) Safety Trip Alarms Dual process relays and one fault relay | DATA SHEET |

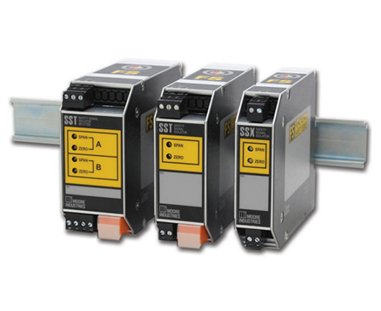

 | SSX & SST | HART® Functional Safety Isolators, Repeaters and Splitters | 4-20mA | 4-20mA | 24Vdc, 117Vac, 230Vac, Output Loop Powered | HART passthru depend on the models SIL2 | DATA SHEET |
 | SRM | Functional Safety Relay Module | 1 Contact Closure | 3 NO 1 NC | 24dc | SIL2/3 (SC) Safety Relay | DATA SHEET |

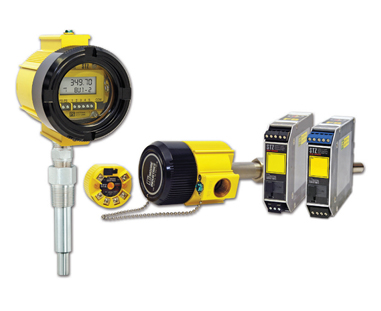

 | STZ | Functional Safety Dual Input Smart HART® Temperature Transmitters | T/C, RTD, 0-4,000 Ohm, -50 - 1,000 mV | 4-20mA | 12-42dc 10-30dc (IS option) | SIL2/3 (SC) | DATA SHEET |

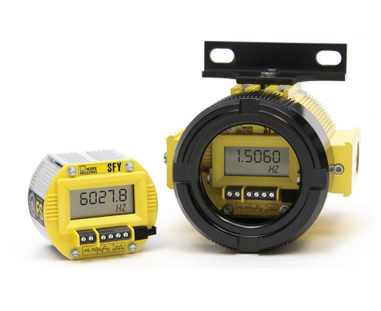

 | SFY | Functional Safety Frequency-to-DC Transmitter with Display | Frequency | 4-20mA | 12-42dc, Input Loop Powered, Output Loop Powered | SIL2 | DATA SHEET |

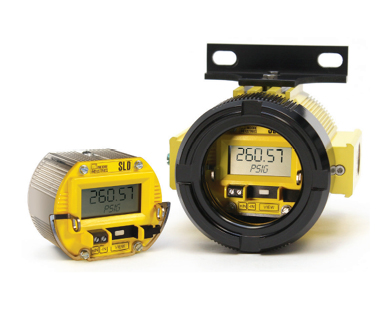

 | SLD | Functional Safety Programmable Loop Display | 4-20mA | Display | Loop Powered (2.3VLP) | SIL3 | DATA SHEET |
