 | Wide Angle Optics Illuminate Boiler Water Level at Any Angle, Any Distance Demo Video 보기 P4100 selection work sheet | LED Illuminator
Wide Angle Hood
| CATALOG |

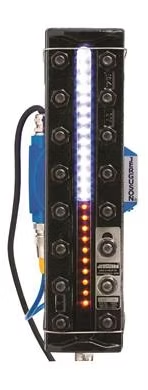

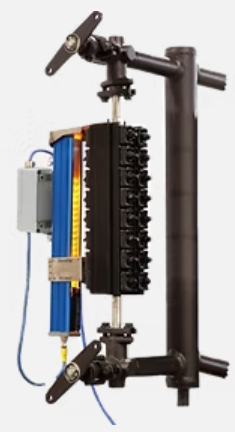

 | Eye-Hye® SmartLevel™ Remote Water The all new Eye-Hye® SmartLevel™ Boiler Indication System adds patented technology to intelligently monitor the condition of its probes which sense water level in the boiler’s steam drum. When the probes require cleaning to remove residue and mineral build-up to maintain their accuracy, the system’s smart technology unambiguously notifies the control room or other remote locations that a probe column blowdown (cleaning) is necessary. If the blue light on the indicator is illuminated, a blowdown is needed. | The World’s Smartest Boiler Water Level Indication System, Intelligence That Improves Steam Efficiency
| BROCHURE |

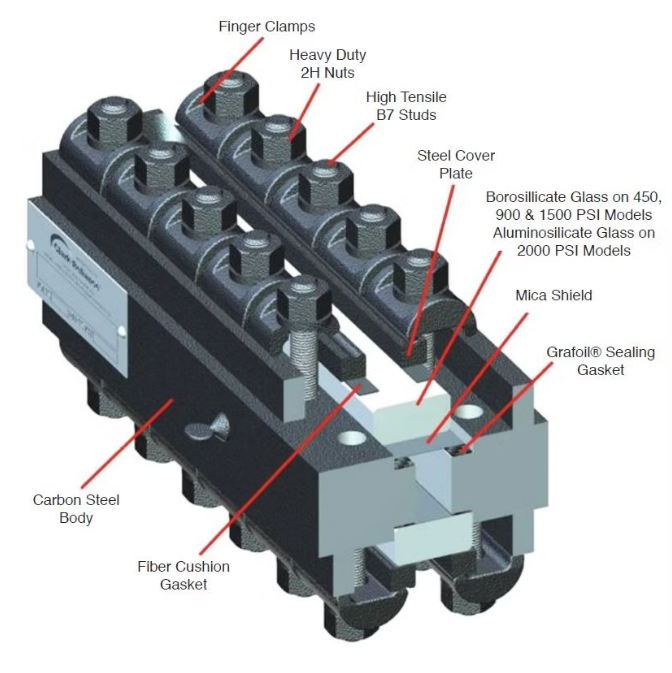

 | Flat Glass Water Gages (450 – 2000 PSI) The precision manufacturing of these time-tested designs assures outstanding performance and service life. Choose from single, double or triple windows for ultimate visibility.
A window slot, 5/8” (15.9 mm) wide, provides high visibility gage reading. For many installations, Water Gage Illuminators are recommended to improve gage readability. |  | BROCHURE |

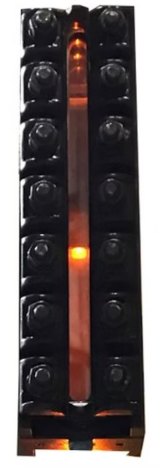

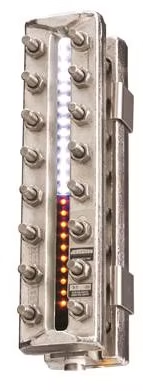

 | DuraStar® Flat Glass Gage LED Illuminator The Most Dependable LED Illuminator for all Reliance® Flat Glass Level Gages
| Selection Work Sheet | |

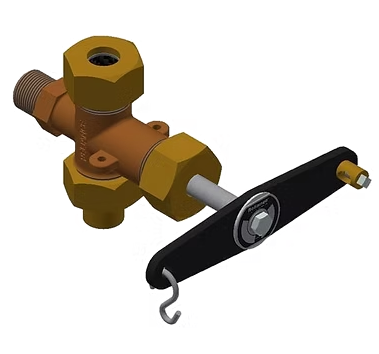

 | Bronze Water Gage Valves | Specification Data Chains and handles that indicate open/closed positions are provided, as required by theASME Boiler Code. Lower valves employ a 3/8” pipe tap connection for blowdown (drain). A complete valve setincludes upper and lower valve and two 5-foot lengths of chain. Valve model numbers are stamped on the top of upper valve. NOTE: Clark-Reliance does not recommend tubular glass for use above 250 WSP. | BROCHURE |

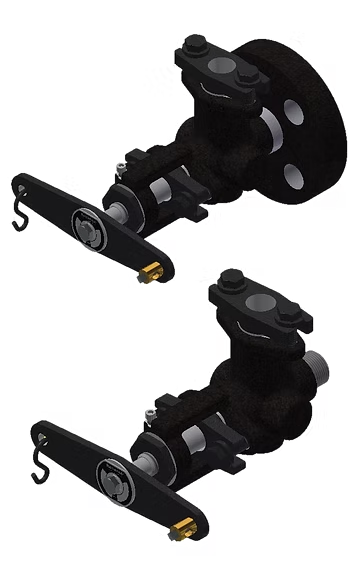

 | Steel Water Gage Valves SG800 Series Forged Steel Lever Operated Water Gage Valves for Dependable Steam Service to 1500 PSI (100 Bar SG800 Series Lever Operated Forged Steel Water Gage Valves for Dependable Steam Service to 1500 PSI at 600°F Available with ¾” Male Pipe Connection or Standard ANSI Flange SG800 Series valves offer choices in vessel and gage connections, ball check locations, and union availability |
| DRAWINGS |

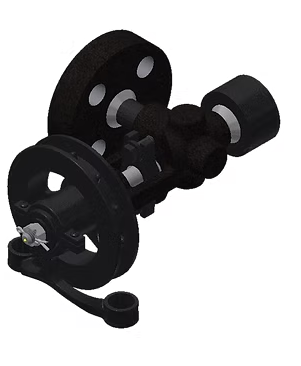

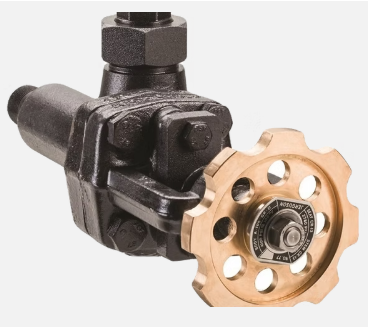

 | SG600 and SG700 Series Forged Steel Chain Wheel Operated Water Gage Valves for Dependable Steam Service to 3000 PSI (200 Bar) Exclusively Chain Wheel Operated Models SG600 Series & SG700 Series valves offer choices in vessel and gage connections, equalizer tube availability and maximum steam pressure services. Automatic Ball Check Valve Protect Against Blowout Damage Where specifications require use of automatic ball check valves ahead of a water level gage, Model SG77BC Upper & Lower Check Valves can be factory installed. Note the 1.125 inch offset in elevation between inlet and outlet ports of the Lower Ball Check Valve. This applies only to the SG600 and SG700 Series valves. |
| IO MANUALS |
 | TWIP® Level Switches TWIP® System Detection Protects Turbines and Other Equipment Applications from Catastrophic Damage Caused by Water Influx | The Water Detector is available in various materials to withstand system pressures to 3000 PSI (206 Bar) or temperatures to 1100°F (593°C).
| BROCHURE |
 | Levalarms® Low Water Cut-Out and NEW Levalarm 1000 Float Level Switch
Demo Video 보기 | Retropak Assemblies
 | BROCHURE |

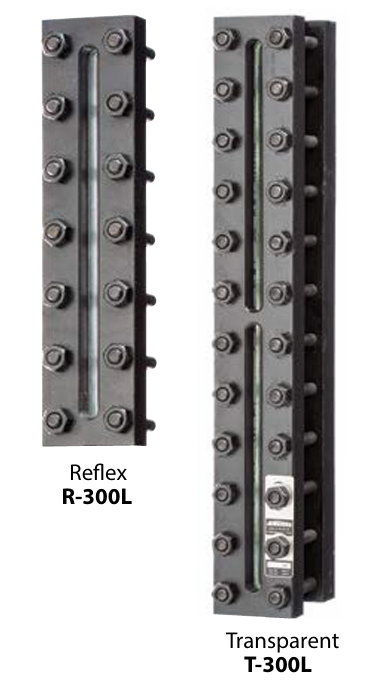

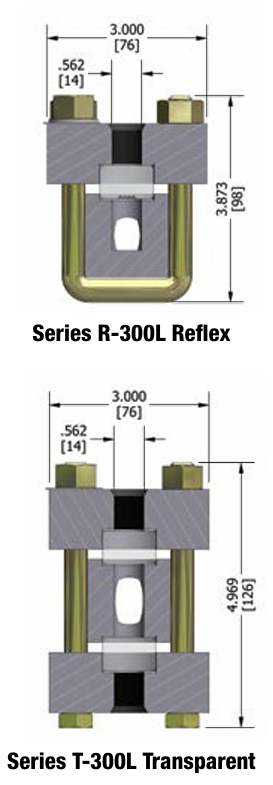

 | Jerguson® Series 300L™ Liquid Level Gages For Pressures up to 300# ANSI
|  | BROCHURE |

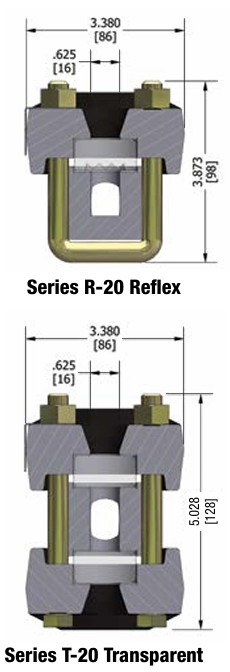

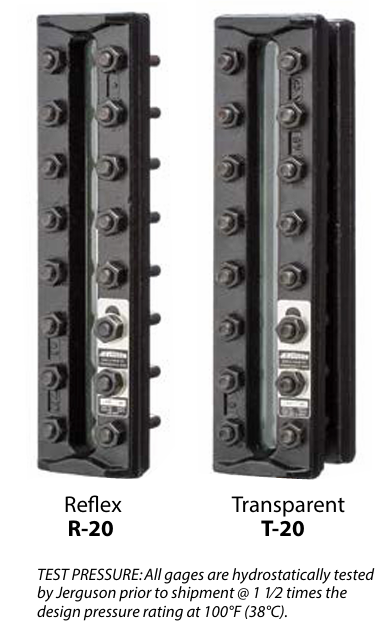

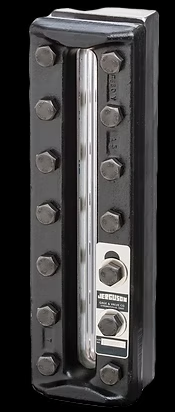

 | Jerguson® Series 20™ Liquid Level Gages Features
|  | BROCHURE |

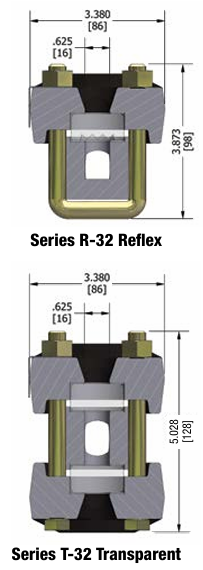

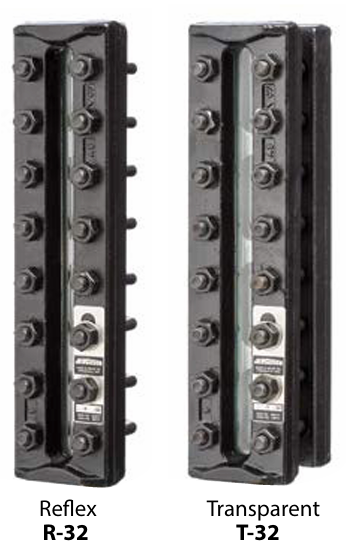

 | Jerguson® Series 32™ Liquid Level Gages
|  | BROCHURE |

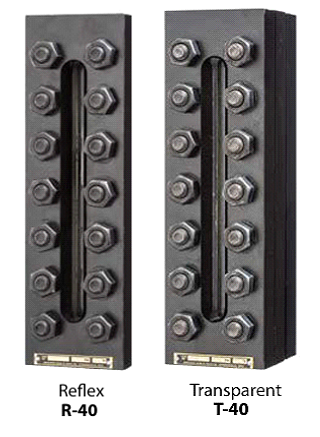

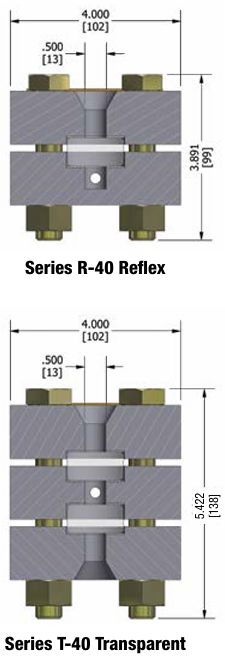

 | Jerguson® Series 40™ Liquid Level Gages Features
|  | BROCHURE |

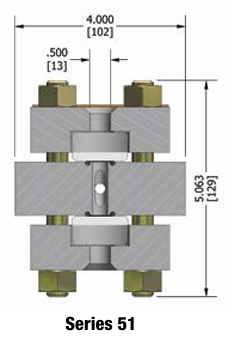

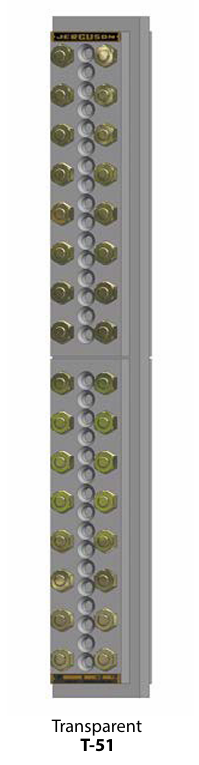

 | Jerguson® Series 51™ Liquid Level Gages High Pressure Glass Gage for up to 10,000 PSI @ 100⁰F Features
|  | BROCHURE |

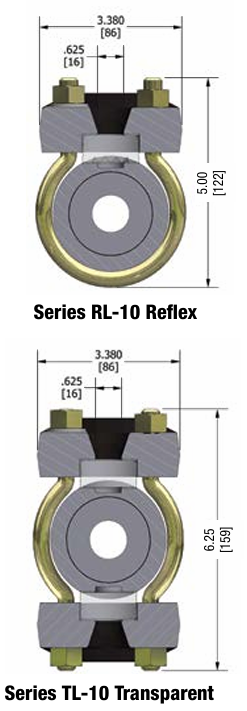

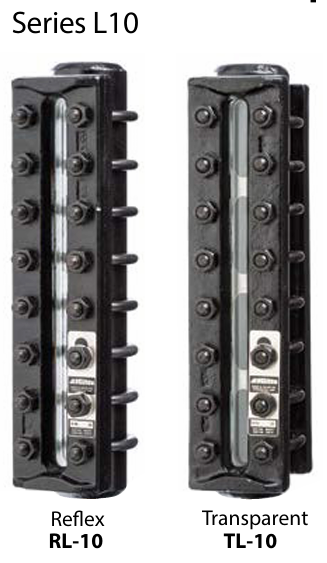

 | Jerguson® Series L10™ Liquid Level Gages Large Chamber Glass Gage for easy reading of Boiling LiquidsFeatures
|  | BROCHURE |

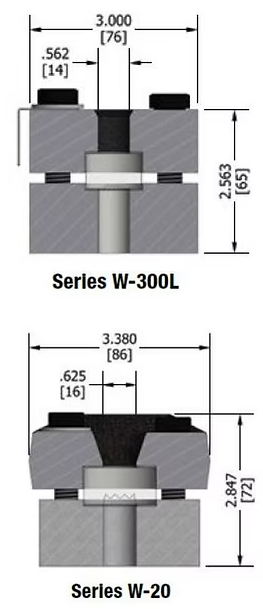

 | Series W20 & W300L Weld Pad™ Liquid Level Gages Features
|  | BROCHURE |

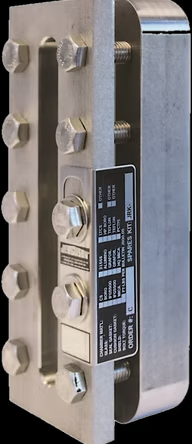

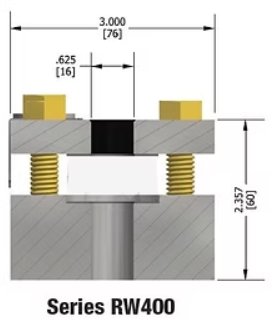

 | Series RW400 Weld Pad™ Liquid Level Gages For Pressures Up to 400 PSI @ 400˚F Low Pressure Weld Pad Gages Reflex Only – 2 Hole Pad Design Features
|  | BROCHURE |

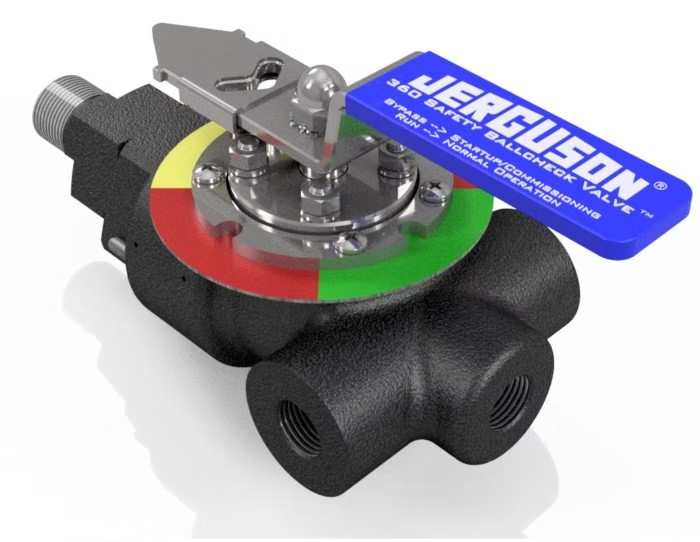

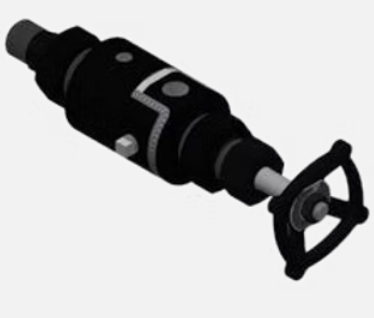

 Jerguson® 360 Series Metal Seated Safety Ballcheck Valves Green = Normal Operation Yellow = Bypass/Commissioning Red = Isolation of Gage from Vessel | Jerguson® 360 Series Metal Seated Safety Ballcheck Valves Green = Normal Operation Yellow = Bypass/Commissioning Red = Isolation of Gage from Vessel STANDARD FEATURES
| SIMPLIFIED COMMISSIONING As opposed to traditional ballcheck valves, it is impossible to get a false level reading with a 360 Series valve during commissioning. When using a traditional ballcheck valve and commissioning a gage assembly when there is already liquid present in the vessel, it is common for the operator to open the valve too quickly, causing the ballcheck to engage and the level gage to display a false level reading! That problem is eliminated with the 360 Series valve. The video below demonstrates the simplified commissioning procedure of the 360 Series valve. | Video 보기 BROCHURE | |||||||||||||||
 Jerguson® Series 70BL™ & Series 70XL™ Safety Ballcheck Valves | Jerguson® Series 70BL™ & Series 70XL™ Jerguson No. 70BL and 70XL Series Valves are designed for use with flat glass gages, instrument piping and for other applications requiring a rugged, lightweight valve. Pressure and temperature ratings to 600 lb. ANSI flange standards or manufacturer’s ratings.
| Standard Features: Low Emissions Packing: All Jerguson® Series 70BL™ & 70XL™ Safety Ballcheck Valves are now provided with low emissions packing and certified to API 624 as a standard. OS&Y + Backseating Stem: The yoke supports the stem away from the valve body so the threaded portion of the stem is unaffected by heat and does not come in contact with process fluids. The stem has a backseating area which protects the packing from the fluid. Renewable Seat: The seat may be removed or replaced with a 5/8″ socket wrench. Union Gage Connection: Nos. 74BL and 77BL are furnished with a union gage connection which allows a top and bottom connected gage to be turned to any desired angle for convenient visibility. It also makes possible the removal of the gage without removing the valves – a feature which saves time when gages must be cleaned or serviced. Offset Pattern: Nos. 76BL and 77BL valve bodies are designed so the gage and drain connections are offset 7/8″ from the centerline of the vessel connections. By removing the plugs, the interior of a top and bottom connected gage glass may be swabbed without removing the gage. Safety Shut-Off: All No. 70BL Series Valves are equipped with a stainless steel ballcheck upstream from the seat which instantaneously shuts off flow of medium being gaged in case of gage glass breakage. | BROCHURE | |||||||||||||||

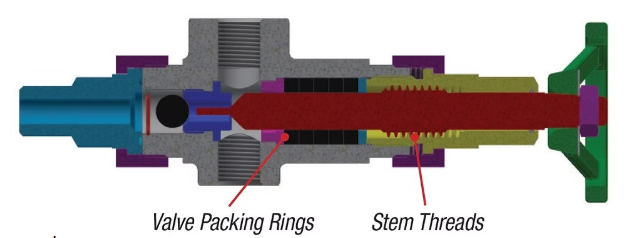

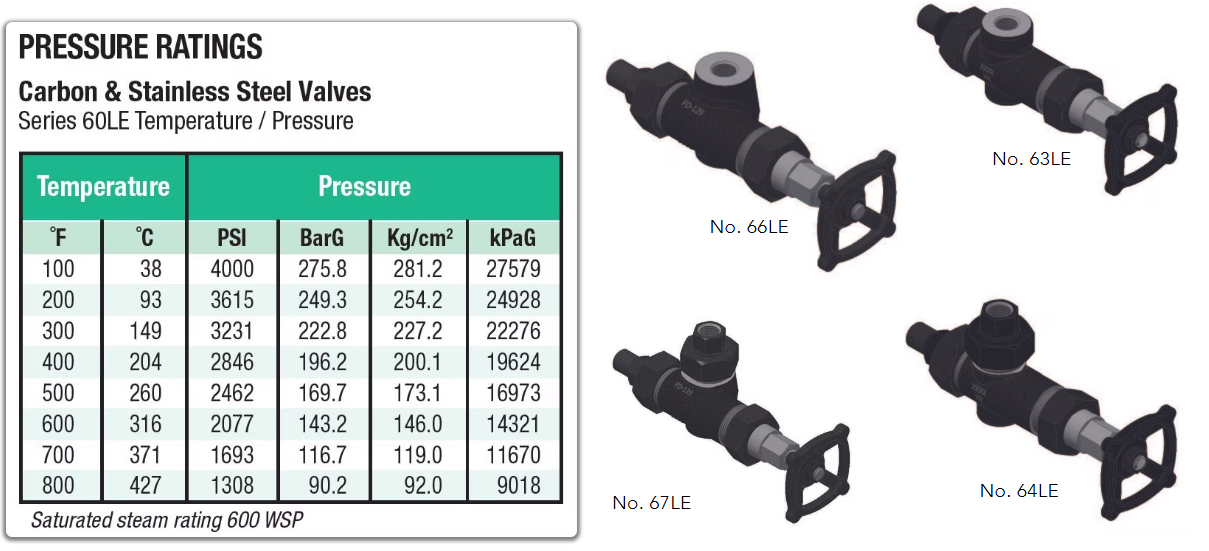

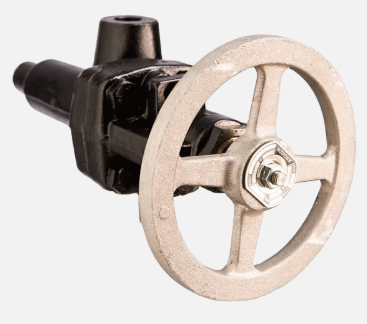

 60LE Series Safety Ballcheck Valves Union Bonnet Valves | 60LE Series Safety Ballcheck Valves Jerguson® No. 60LE Series Valves are constructed to the highest of standards. The updated design removes the stem threads from contact with the process fluid by locating them behind the valve packing seal. This important feature prevents corrosion on the threading and provides a barrier inhibiting the ability of particulate to interfere with the hand wheel operation. The valve is low emission certified to API 624 to provide compliance with EPA standards. Quality features include stainless steel stems, seats, and ballcheck, regrindable and renewable seats.
The series consists of the following valves: |   | BROCHURE | |||||||||||||||

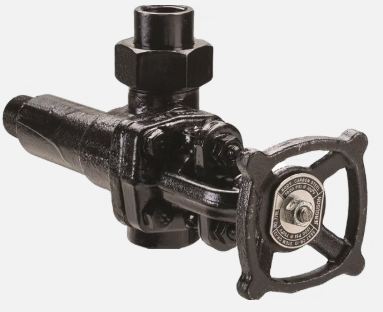

 Jerguson® Series 60™ Safety Ballcheck Valves | Jerguson® Series 60™ Safety Ballcheck Valves No. 60 Series Valves The series consists of the following valves:
Standard Features: Safety Shut-Off: All No. 60 Series Valves are equipped with a stainless steel ballcheck located upstream from the seat which instantaneously shuts off flow of medium being gaged in case of gage glass breakage. The ball may be omitted on request. | Union Gage Connection: Nos. 64 and 67 are furnished with a union gage connection which allows a top and bottom connected gage to be turned to any desired angle for convenient visibility. It makes possible removal of the gage without removing the valves – a feature which saves time when gages must be cleaned or maintained. Offset Pattern: Nos. 66 and 67 valve bodies are designed so the gage and drain connections are offset 7/8″ from the centerline of the vessel connections. By removing the plug, the interior of a top and bottom connected gage glass may be swabbed without removing the gage. Convertible to Quick Closing: No. 60 Series Valves may be converted from plain to quick-closing, in the field, by replacement of sleeve, stem and packing. Regrindable, Renewable Seat: The seat may be reground using the sleeve as a guide. The seat may be renewed by removing the seat with a standard wrench. | BROCHURE | |||||||||||||||

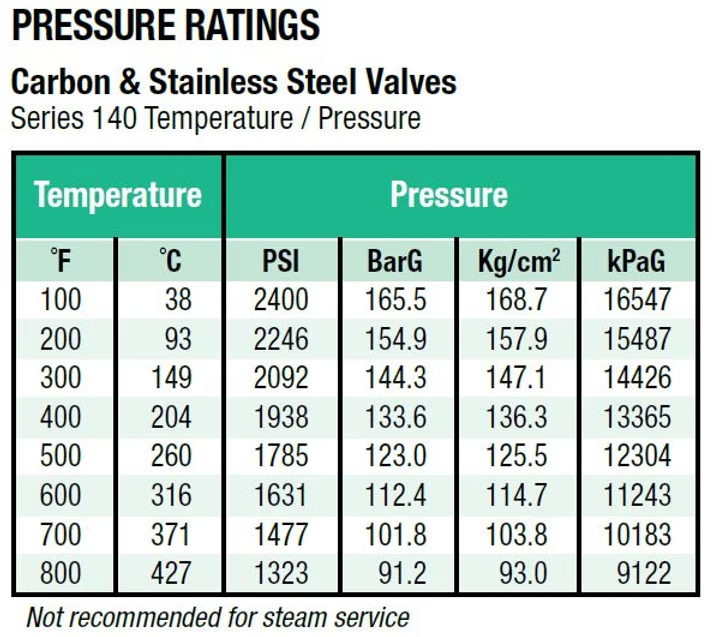

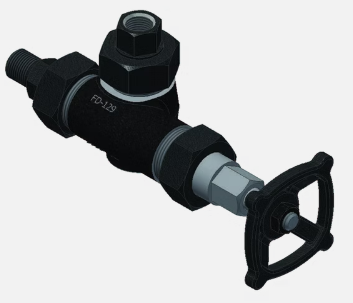

 Jerguson® Series 140™ Safety Ballcheck Valves No. 143 – straight pattern with non-union gage connection No. 144 – straight pattern with union gage connection No. 146 – offset pattern with non-union gage connection No. 147 – offset pattern with union gage connection | Standard Features: Safety Shut-off: All No. 140 Series Valves are equipped with stainless steel ballchecks upstream from the seats which instantaneously shut-off flow of medium being gaged in case of gage breakage. The ball may be omitted on request. Bonnet: The bonnet on all No. 140 Series Valves screws directly onto the outside of the forged body. The inner area bears on the packing gland. Union Tank Connection: Series 140 Valves are equipped with union tank connections which permit simple installation and easy access to the ballcheck. Union Gage Connection: No. 144 and No. 147 are furnished with a union gage connection which allows a top and bottom connection gage to be turned to any desired angle for convenient visibility. It also makes possible removal of the gage without removing the valves or draining the liquid from the vessel – a feature which saves time when the gages must be cleaned or maintained. Offset Pattern: No. 146 and No. 147 valve bodies are designed so that the gage connections are offset 7/8″ from the centerline of the vessel connection. By removing the plug, the interior of top and bottom connected gage may also be swabbed without disassembly. |  | BROCHURE | |||||||||||||||

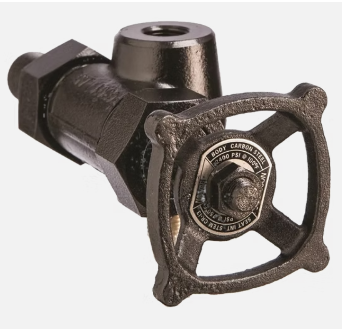

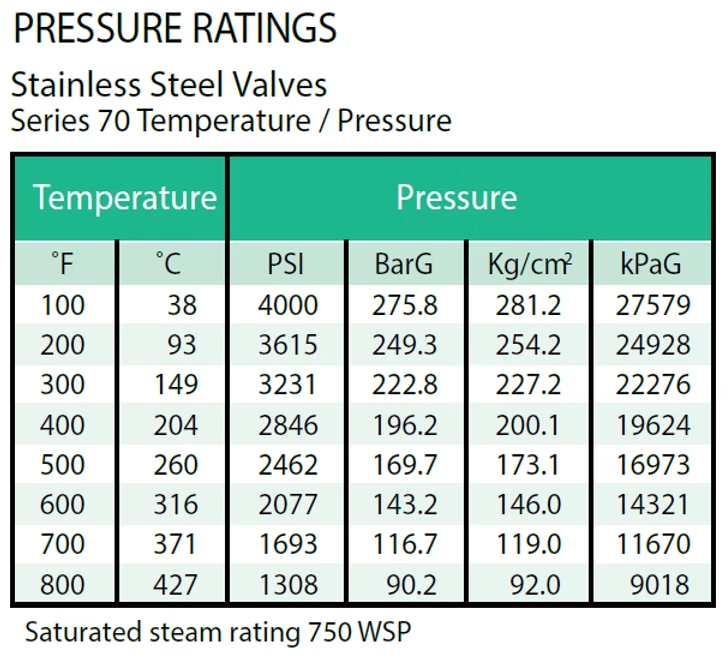

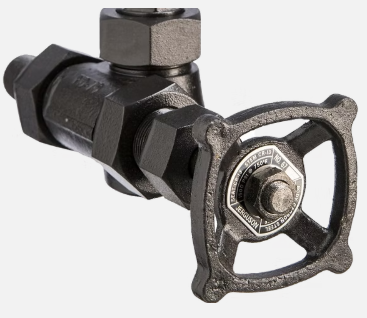

 Jerguson® Series 70™ Safety Ballcheck Valves No. 73 – straight pattern with female NPT gage connection No. 74 – straight pattern with union gage connection No. 76 – offset pattern with female NPT gage No. 77 – offset pattern with union gage connection | Jerguson® Series 70™ Safety Ballcheck Valves Jerguson No. 70 Series Valves are designed for use with flat glass gages, instrument piping and for other applications requiring a rugged valve. Pressure and temperature ratings to 900 lb. ANSI flange standards or manufacturer’s ratings.
 | Standard Features: OS&Y + Backseating Stem: The yoke supports the stem away from the valve body so the threaded portion of the stem is unaffected by the heat and does not come in contact with process fluids. The stem has a Backseating area which allows repacking the valve under pressure.
Union Gage Connection: Nos. 74 and 77 are furnished with a union gage connection which allows a top and bottom connected gage to be turned to any desired angle for convenient visibility. It also makes the possible removal of the gage without removing the valves – a feature which saves time when gages must be cleaned or maintained.
| BROCHURE | |||||||||||||||
 Jerguson® Series 86™ Safety Ballcheck Valves No. 86-H – standard construction No. 86-HO – with Viton “O” ring between bonnet and body and under renewable seat and drain plug No. 86-V or 86-VO – with vertical ballcheck | Jerguson® Series 86™ Safety Ballcheck Valves Jerguson No. 86 Series Valves are designed and manufactured for use with flat glass gages, instrument piping and for other applications requiring a rugged valve in the higher pressure ranges.
Standard construction with a spiral wound gasket between bonnet and body is rated at 6,000 PSI and 100°F. When a Viton “O” ring is used (No. 86-HO or 86-VO) in place of the spiral wound gasket, this valve is suitable for pressure up to 10,000 PSI at 400°F. It is designed specifically to be compatible with Jerguson’s 10,000 PSI Series 51 Flat Glass Gage. OS&Y construction provides a steel yoke which supports the stem away from the body of the valve. The threads are thus outside the valve body and do not come in contact with process media. No. 86 Valves are available with male socket weld or flanged tank connections only. The two outlet connections for gage and drain are 1/2″ N.P.T. – on 86H and 86V, and 1/2″ socket weld on 86HO and 86VO – unless otherwise specified. | Standard Features: Loose Knob, Backseating Stem: The disc on the stem is keyed and free rotating. This assures perfect seating and eliminates the possibility of galling at the seat. Acme threads are used to assure easy operation. When the stem is backed out to its limit the knob on the stem seats against the bonnet sleeve allowing the stem to be repacked when the valve is under pressure. Renewable Seat: The seat may be removed using a 3/4″ hex socket wrench. 6 inch Diameter Handwheel: No. 86 Series Valves are equipped with large size handwheels for easier operation. Materials
Standard Connections | BROCHURE | |||||||||||||||

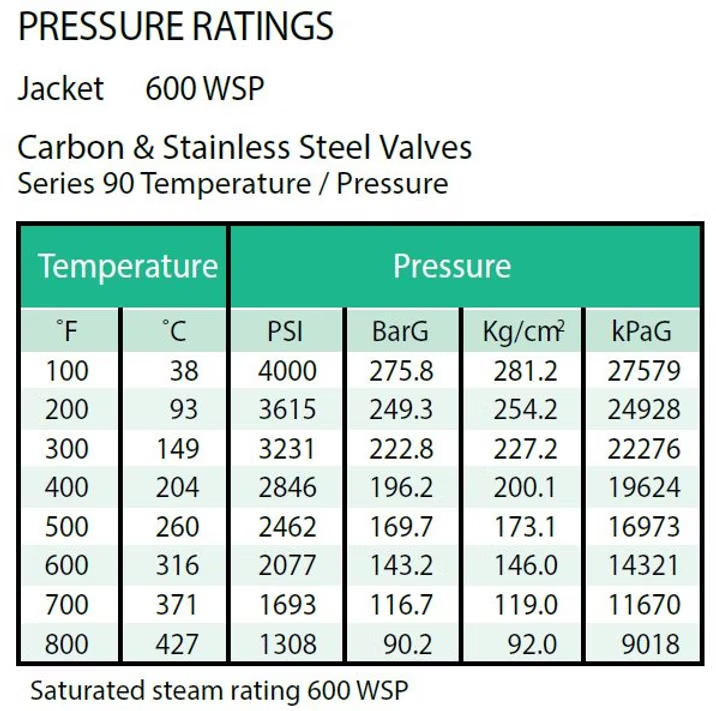

 Jerguson® Series 90™ Safety BallcheckSteam Jacketed Gage Valves No. 93 – Jacketed valve with union vessel connection and non-union gage connection No. 94 – Jacketed valve with union vessel connection and union gage connection | Jerguson® Series 90™ Safety Ballcheck Jerguson No. 90 Series Valves are designed especially for use with heated or cooled gages. A jacket surrounding the valve permits circulation of the heating or cooling medium. Four 1/4″ holes are tapped into the jacket for connection to the heating-cooling supply and / or tracing tube.
| Standard Features: Convertible to Quick Closing: Plain closing threads and handwheels are standard. Quick-Closing valves, stems and levers for chain operation can be furnished upon request at no extra cost. These stems have quadruple thread for full closing or opening in 1/4″ turn. Valves can be converted at any time by replacement of stem and sleeve. Regrindable, Renewable Seat: Union sleeve bonnet construction permits regrinding of valve seat. Valve seat may be renewed by removing the seat with a standard wrench. Union Vessel Connection: A union vessel connection allows the valve to be easily installed and permits access to the ballcheck without disassembling valve. Union Gage Connection: No. 94 has a union gage connection which permits a top and bottom connected gage to be rotated to any convenient position or, when the valve is closed, permits removal of the gage without draining or removing pressure from the vessel. | BROCHURE |
