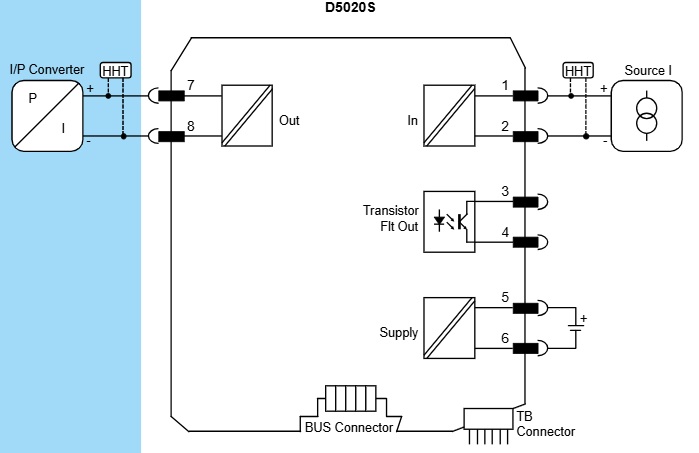

D5020S (1ch)

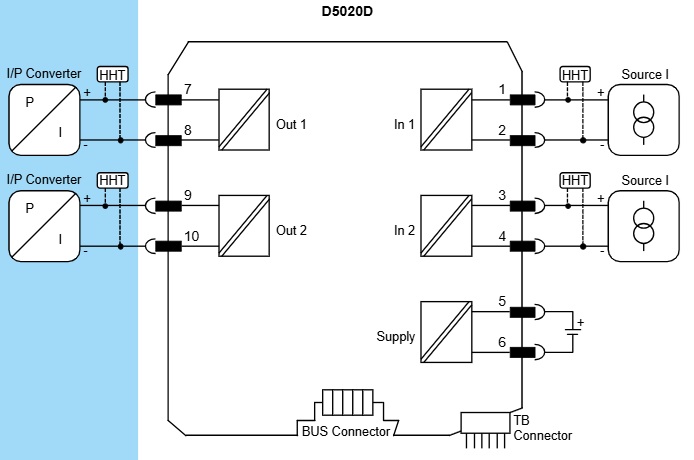

D5020D (2ch)
DATA SHEET DOWNLOAD | I.S. SIL2 HART® Isolating Driver
- SIL 2 / SC 3
- Output to Zone 0/Div. 1
- Installation in Zone 2/Div. 2
- 4-20 mA Input, Output Signal
- HART® compatible
- Line & Load short/open circuit detection
- Field fault mirroring to the PLC AO
- In-field programmability by DIP Switch
- High Accuracy
- Three port isolation, Input/Output/Supply
- High Density, two channels per unit (D5020D)
|  |
 |
 |
- Input from Zone 0 / Division 1
- Installation in Zone 2 / Division 2
- Loop disconnection to ease maintenance operations
- Mechanical polarization key to prevent destructive mismatches
- HART® compatible
- Line & Load short/open circuit programmable diagnostics
- Out-of-range fault with programmable thresholds
- Field fault mirroring to the DCS/PLC IO Card
- High Accuracy
- Three port isolation, Input/Output/Supply
|

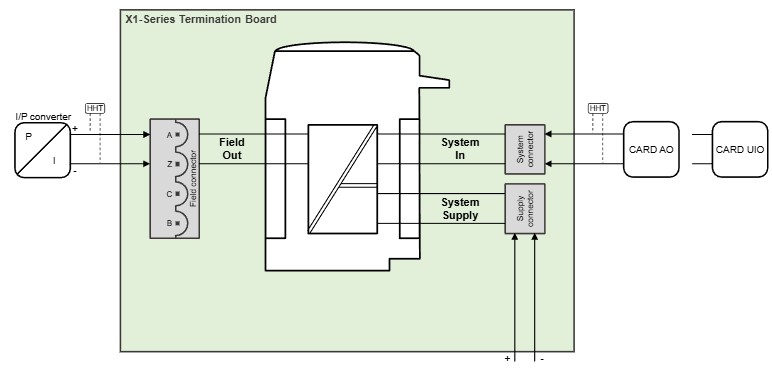

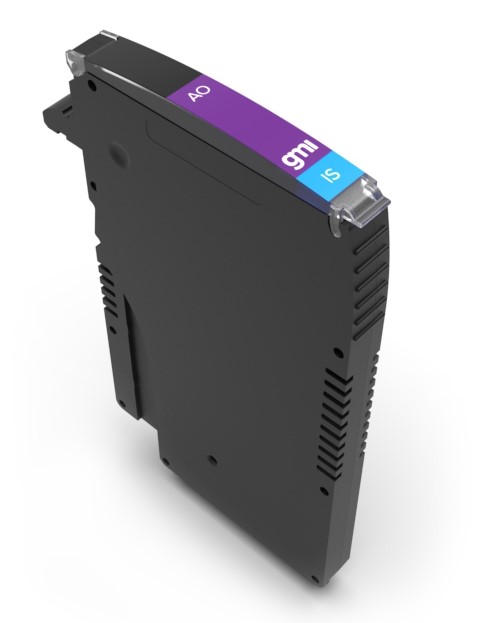

X1-IS-AO-01-S
DATA SHEET DOWNLOAD | I.S. SIL3 HART® Isolating Driver
SIL 3 / SC 3
|
X1-IS-AO-02-S
DATA SHEET DOWNLOAD | I.S. SIL2 HART® Isolating Driver SIL 2 / SC 3
|
